IG Power Source Circuit

HEATING / AIR CONDITIONING: AIR CONDITIONING SYSTEM: IG Power Source Circuit

IG Power Source Circuit

DESCRIPTION

When the ignition switch is turned ON, positive (+) battery voltage is applied to the air conditioning amplifier.

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT FUSE (ECU-IG NO. 1)





(a) Remove the ECU-IG No. 1 fuse from the main body ECU.
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





(c) Reinstall the ECU-IG No. 1 fuse.
NG -- REPLACE FUSE
OK -- Continue to next step.
2. CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER - BATTERY, BODY GROUND)

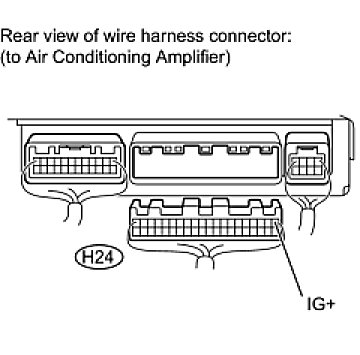

(a) Disconnect the H24 air conditioning amplifier connector.
(b) Measure the resistance and voltage according to the value(s) in the table below.
Standard Resistance:






Standard Voltage:





(c) Reconnect the air conditioning amplifier connector.
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
