Rear Evaporator Temperature Sensor

HEATING / AIR CONDITIONING: REAR EVAPORATOR TEMPERATURE SENSOR: INSPECTION

INSPECTION





1. INSPECT REAR EVAPORATOR TEMPERATURE SENSOR (NO. 2 AIR CONDITIONING HARNESS ASSEMBLY)

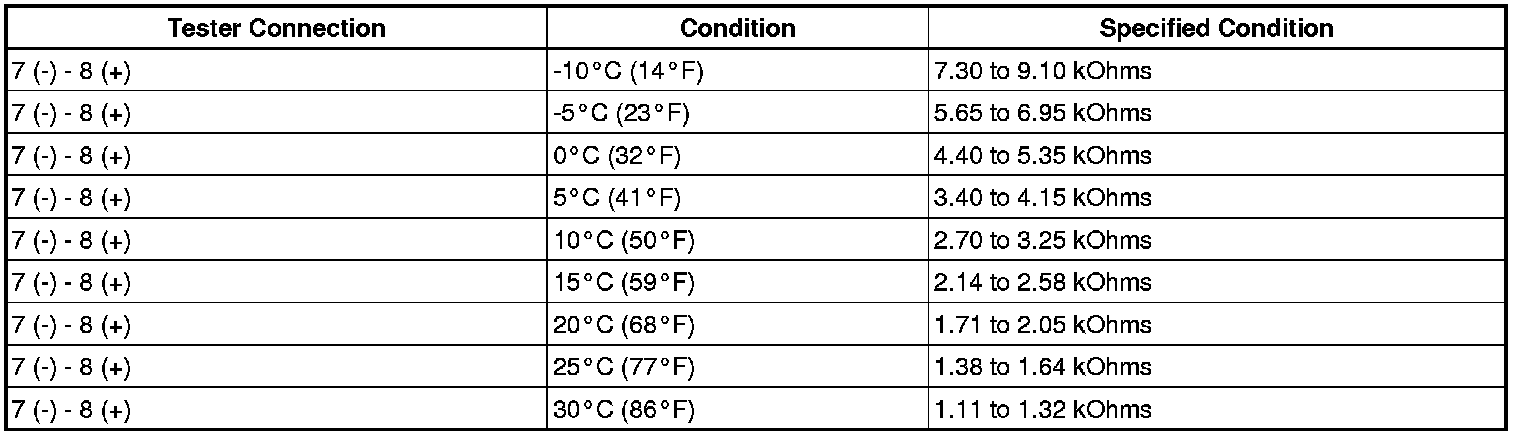

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





NOTICE:
- Even slightly touching the sensor may change the resistance value. Be sure to hold the connector of the sensor.
- When measuring the sensor temperature must be the same as the ambient temperature.

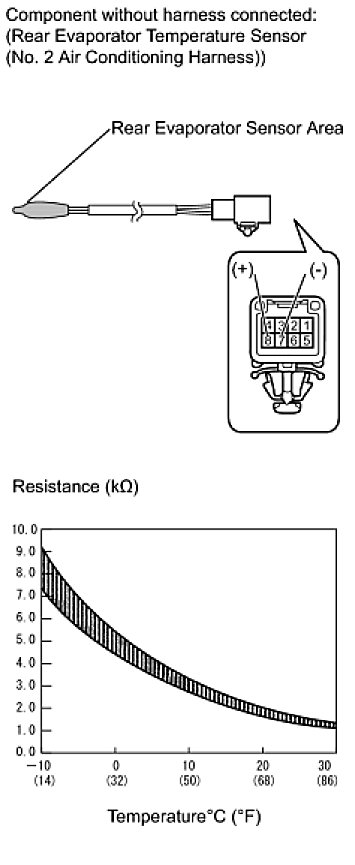

HINT: As the temperature increases, the resistance decreases (see the graph).
If the resistance value is not as specified, replace the sensor.
