HEATING / AIR CONDITIONING: AIR CONDITIONING SYSTEM: SYSTEM DIAGRAM

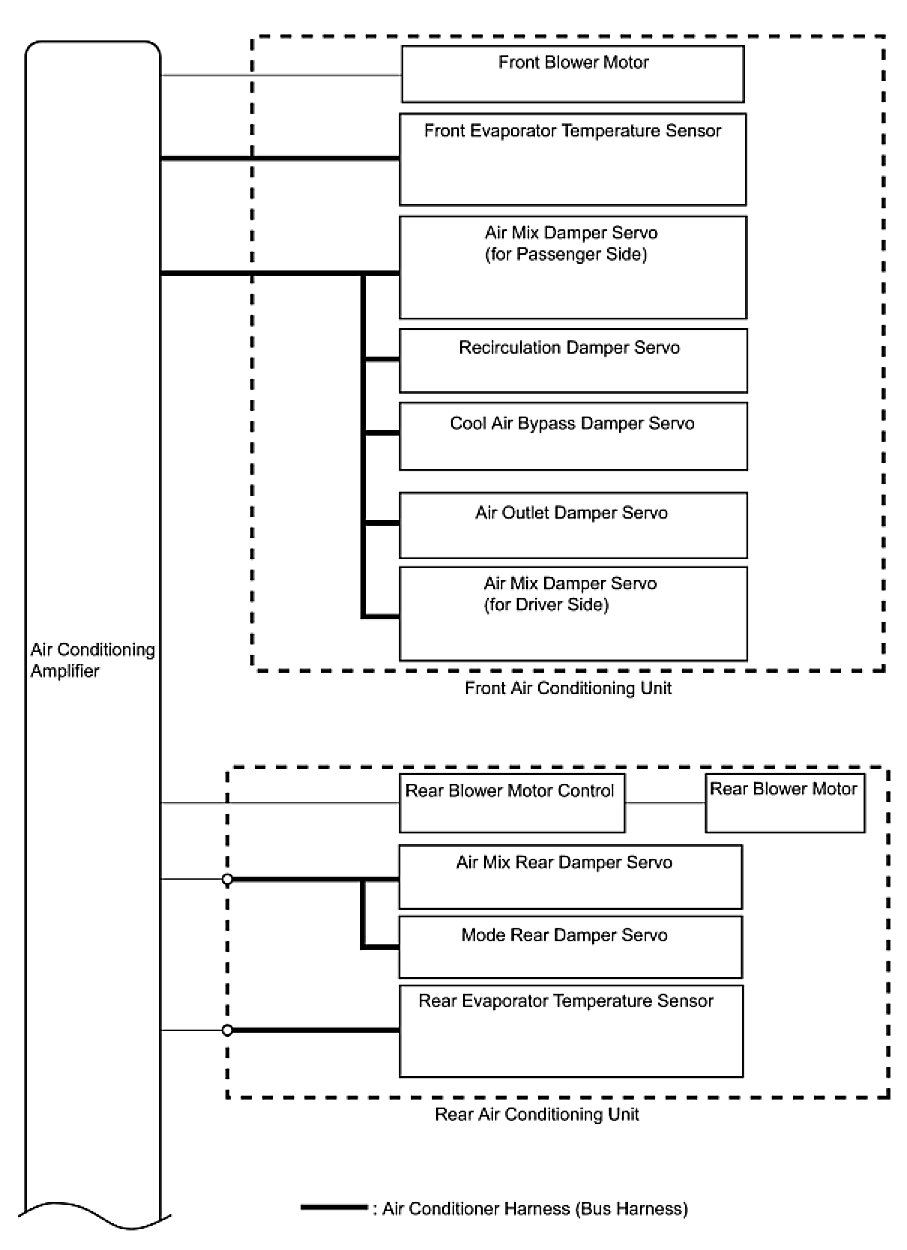

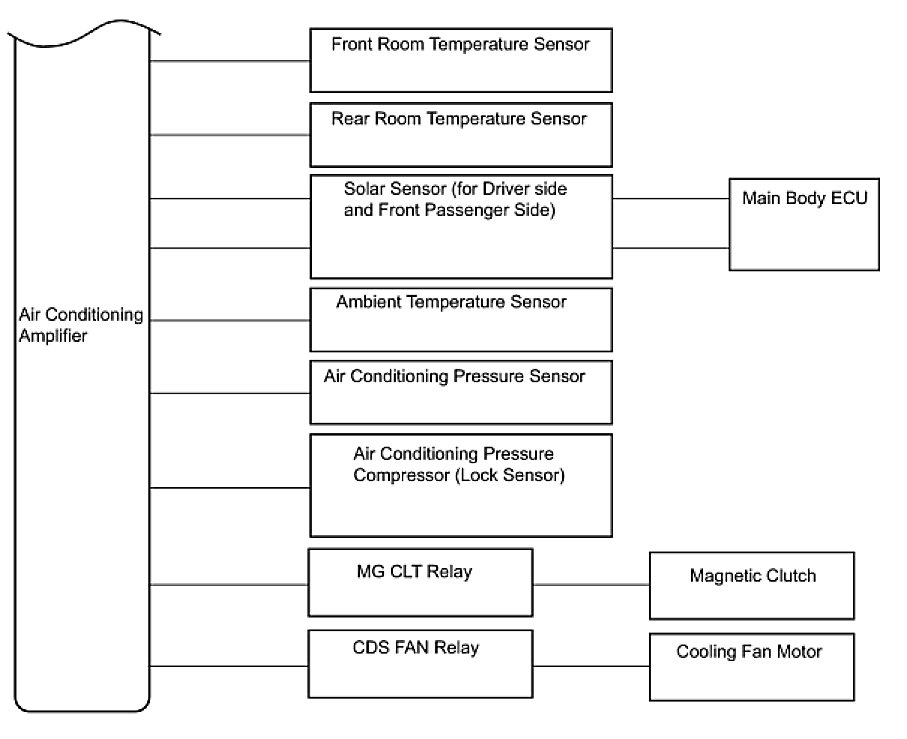

SYSTEM DIAGRAM

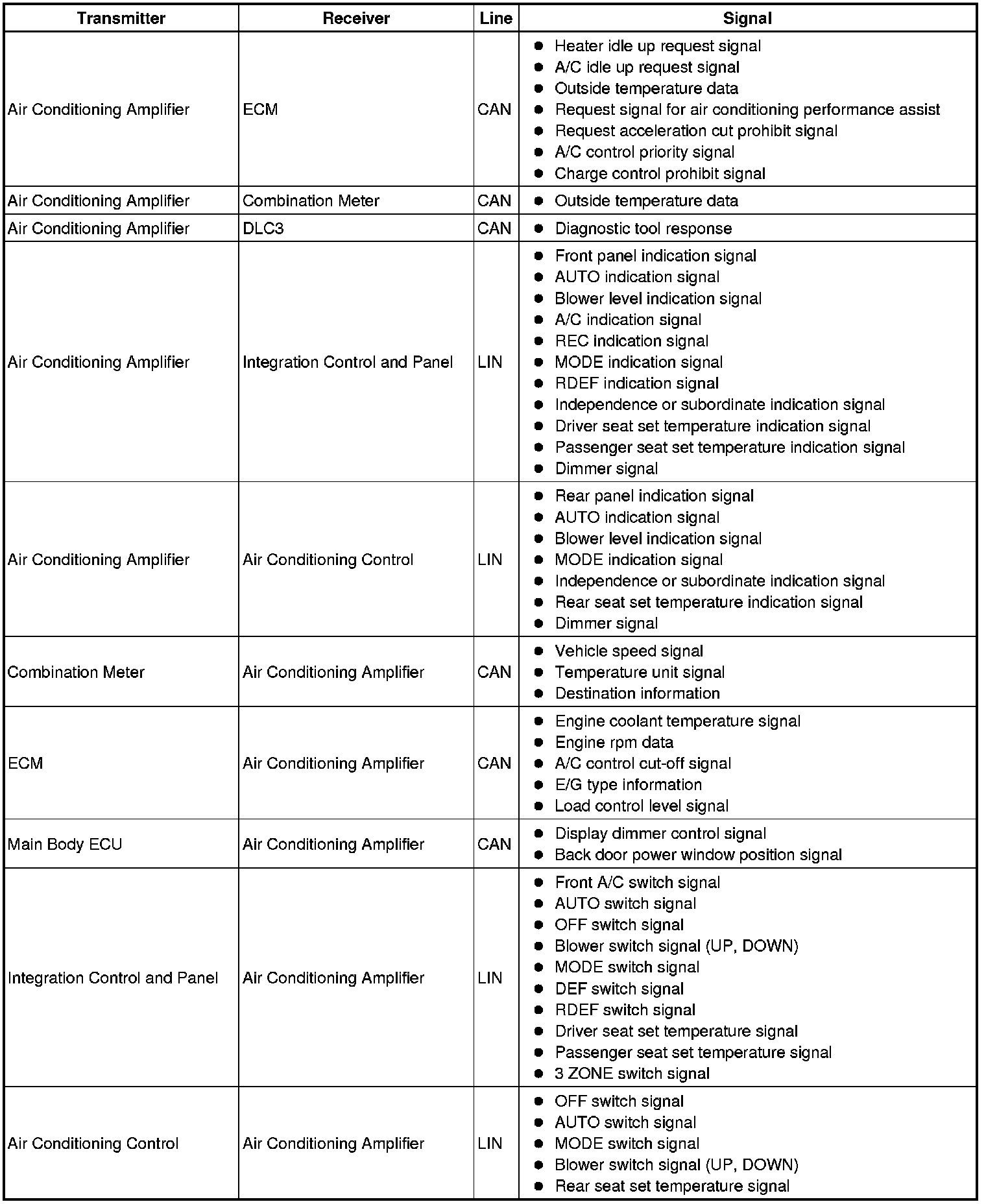

Communication table
