System Description

HEATING / AIR CONDITIONING: AIR CONDITIONING SYSTEM: SYSTEM DESCRIPTION

SYSTEM DESCRIPTION

1. GENERAL

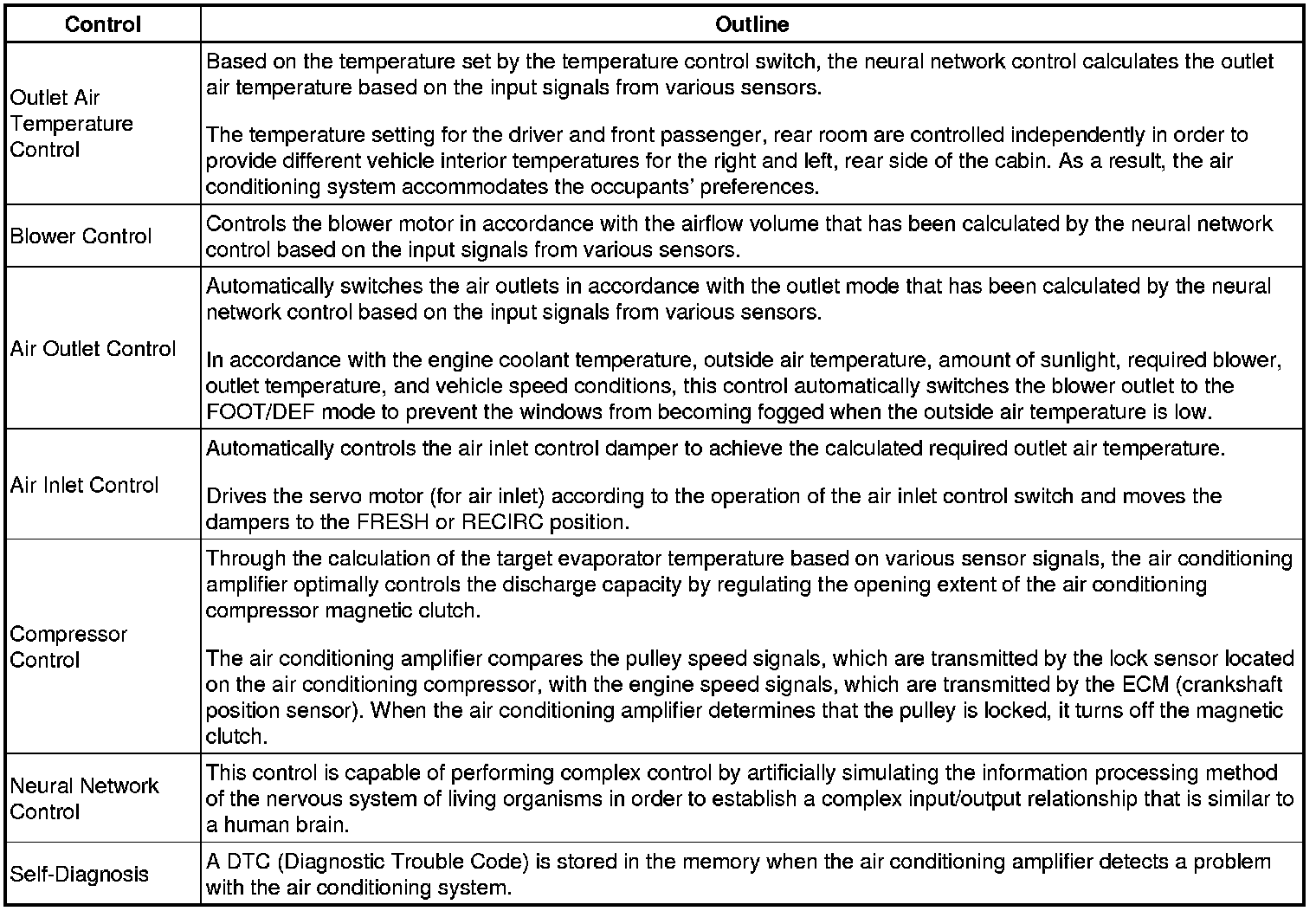

(a) The air conditioning system has the following controls:






2. MODE POSITION AND DAMPER OPERATION

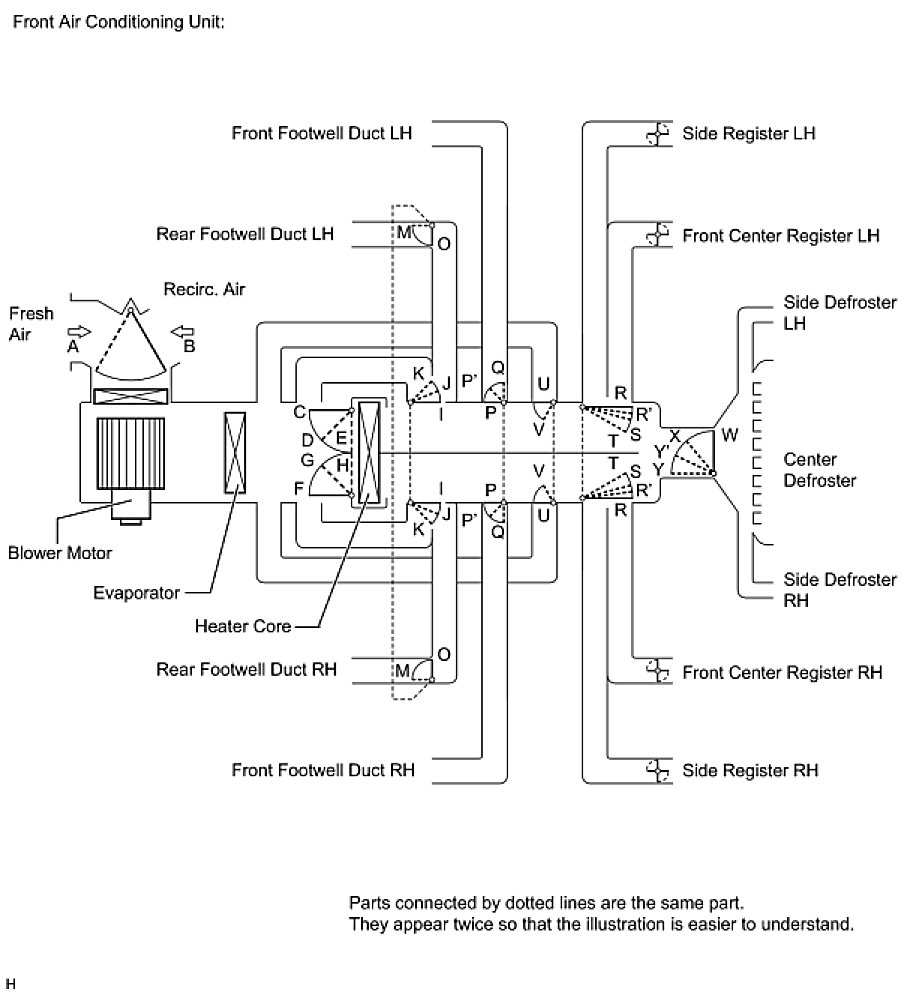

(a) Mode Position and Damper Operation (for Front Air Conditioning Unit)

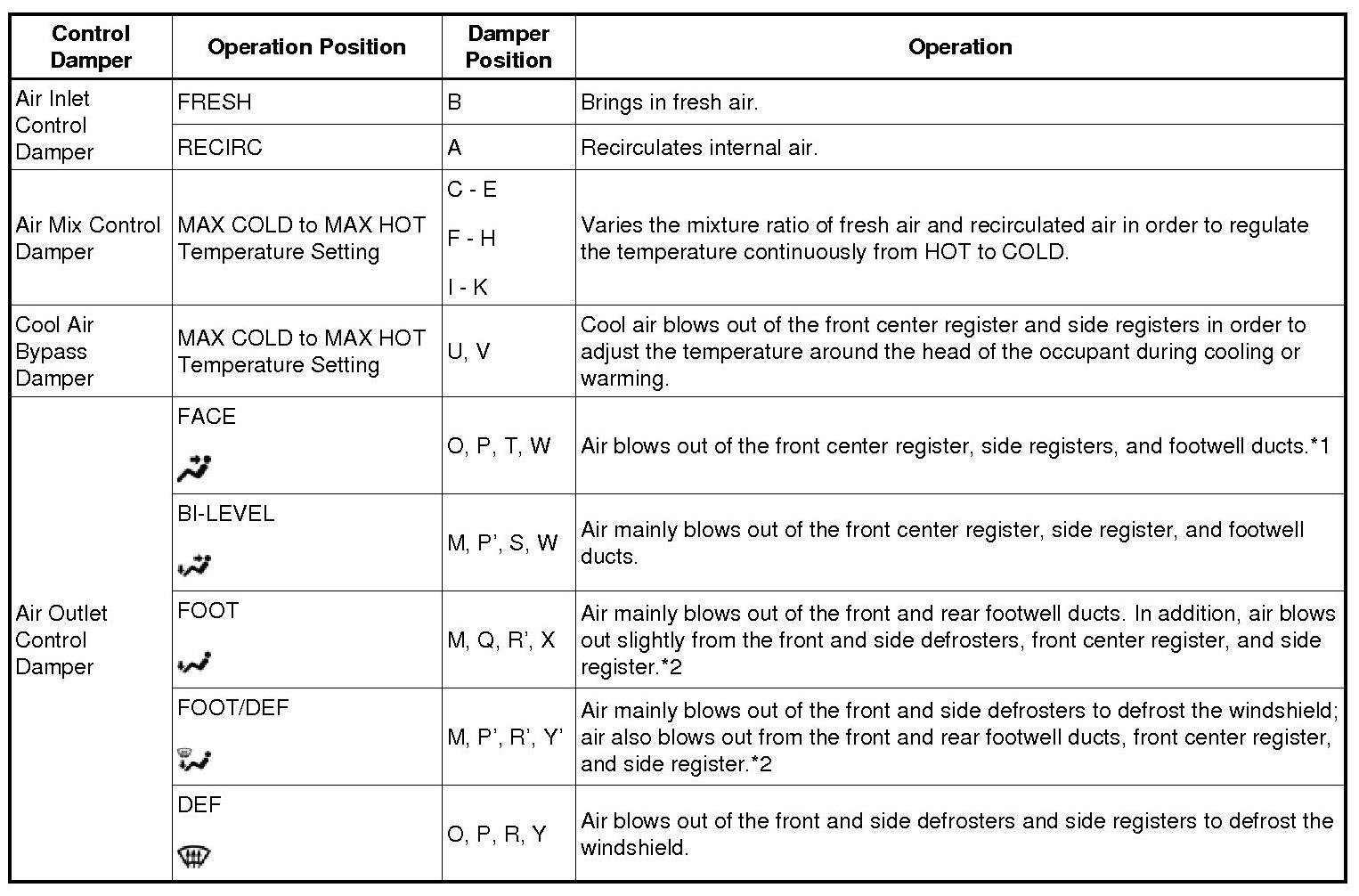

Function of Main Damper





HINT: *1: In multi mode, air blows out of all the air outlets except the front and side defrosters.
*2: In multi mode, air blows out of all the air outlets.

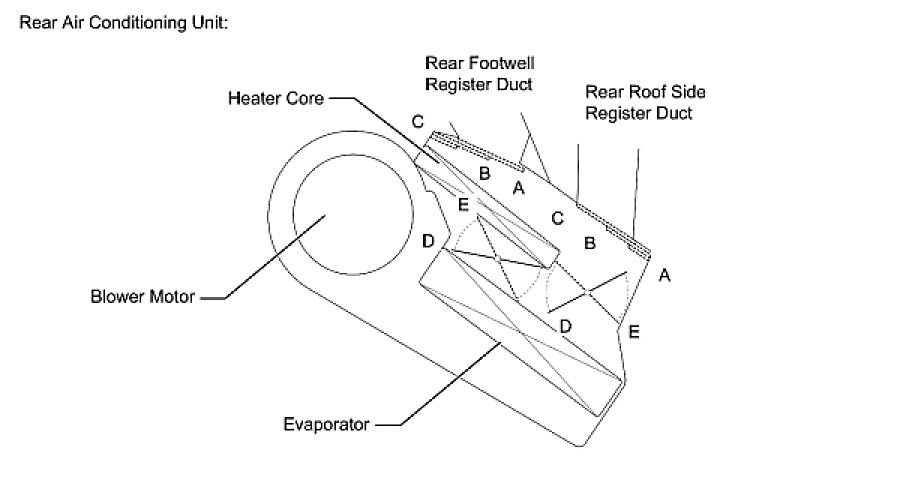

(b) Mode Position and Damper Operation (for Rear Air Conditioning Unit)

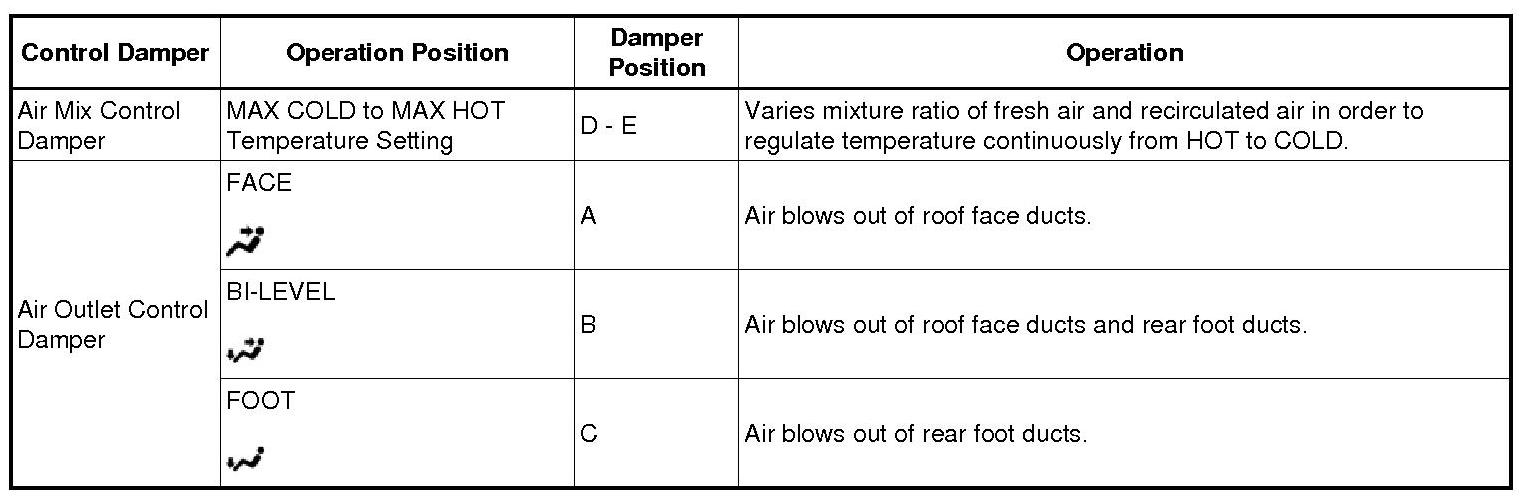

Function of Main Damper





3. AIR OUTLETS AND AIRFLOW VOLUME

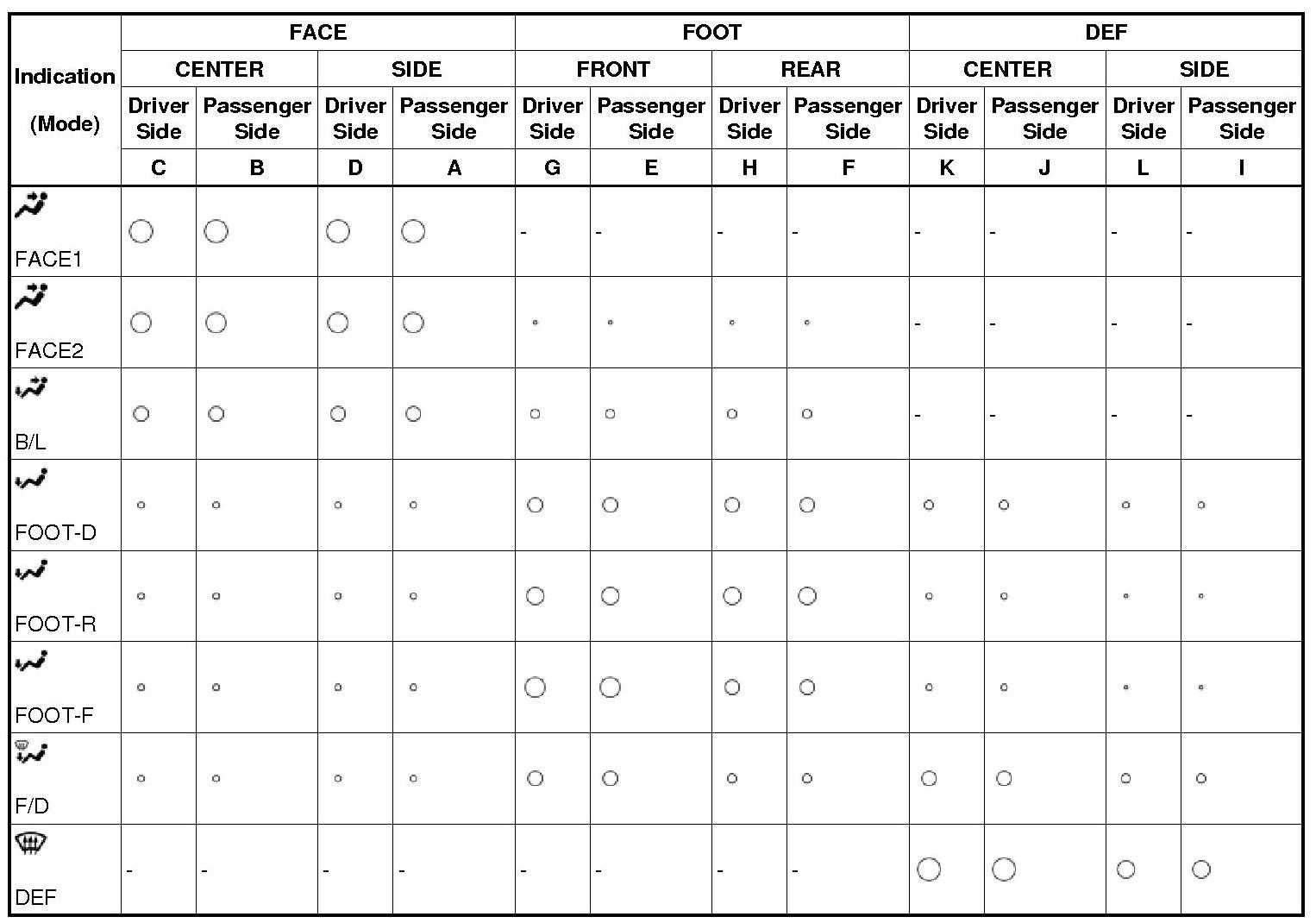

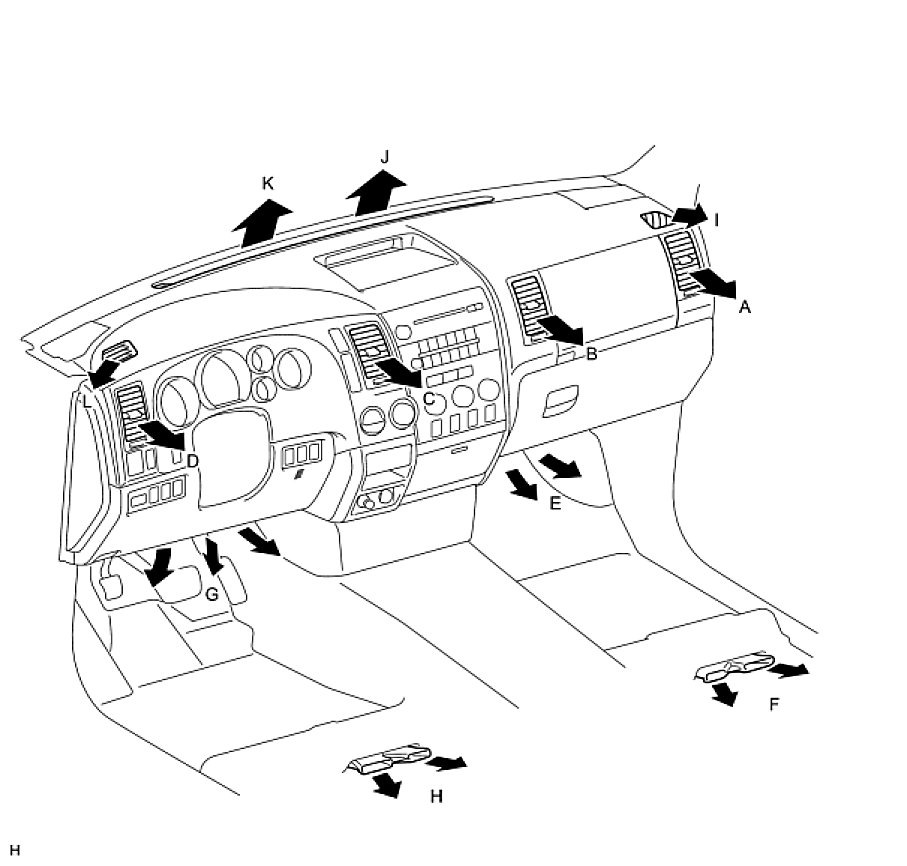

(a) Air Outlets and Airflow Volume (for Front seat)









(b) Air Outlets and Airflow Volume (for Rear seat)
