Removal

HEATING / AIR CONDITIONING: CONDENSER: REMOVAL

REMOVAL

1. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM Service and Repair

2. REMOVE RADIATOR ASSEMBLY (for 2UZ-FE)
(a) Remove the radiator assembly Removal.
3. REMOVE RADIATOR ASSEMBLY (for 3UR-FE)
(a) Remove the radiator assembly Removal.






4. DISCONNECT NO. 1 COOLER REFRIGERANT DISCHARGE HOSE
(a) Remove the bolt and disconnect the discharge hose from the cooler condenser.
(b) Remove the O-ring from the discharge hose.
NOTE: Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.





5. DISCONNECT AIR CONDITIONING TUBE ASSEMBLY
(a) Remove the 2 bolts and air conditioning tube from the cooler condenser.
(b) Remove the O-ring from the air conditioning tube.
NOTE: Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

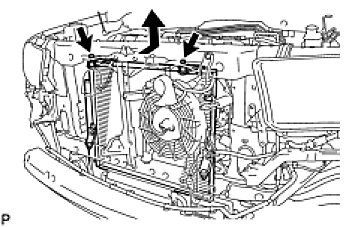

6. REMOVE COOLER CONDENSER ASSEMBLY






(a) Remove the 2 bolts.
(b) Remove the cooler condenser, as shown in the illustration.
NOTE: Do not damage the cooler condenser when removing the cooler condenser.
