Removal

HEATING / AIR CONDITIONING: CONDENSER FAN: REMOVAL

REMOVAL





1. REMOVE SHROUD BLOWER ASSEMBLY
(a) Disconnect the connector and 2 clamps.
(b) Remove the 2 bolts and the shroud blower.






2. REMOVE COOLING FAN ASSEMBLY
(a) Remove the 3 screws and cooling fan.






3. REMOVE COOLING FAN MOTOR
(a) Disengage the 2 clamps.
(b) Remove the 3 screws and the cooling fan motor.






4. REMOVE BUSH

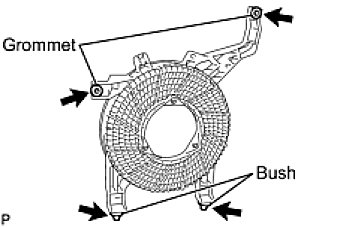

(a) Remove the 2 grommets and 2 bushes.
