Installation

HEATING / AIR CONDITIONING: CONDENSER FAN: INSTALLATION

INSTALLATION

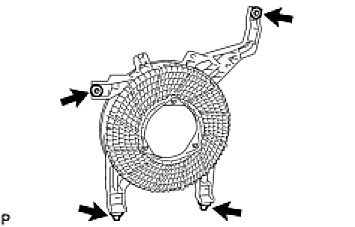

1. INSTALL BUSH
(a) Install the 2 grommets and 2 bushes.

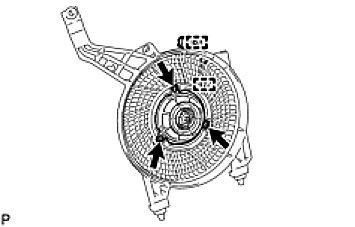

2. INSTALL COOLING FAN MOTOR
(a) Install the cooling fan motor with the 3 screws.
(b) Engage the 2 clamps.

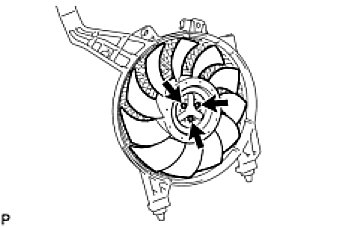

3. INSTALL COOLING FAN ASSEMBLY
(a) Install the cooling fan with the 3 screws.

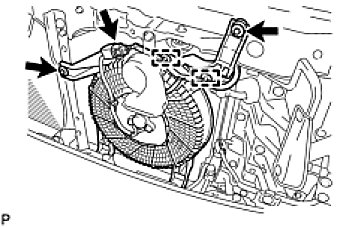

4. INSTALL SHROUD BLOWER ASSEMBLY
(a) Install the shroud blower with the 2 bolts.
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
(b) Connect the connector.
(c) Engage the 2 clamps.
