HEATING / AIR CONDITIONING: FRONT BLOWER MOTOR: INSTALLATION

INSTALLATION

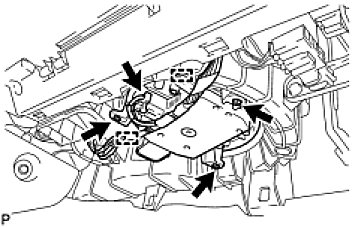

1. INSTALL BLOWER WITH FAN MOTOR SUB-ASSEMBLY
(a) Install the motor with the 3 screws.
(b) Connect the connector and 2 clamps.
2. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation
