Blower Motor Relay: Testing and Inspection

HEATING / AIR CONDITIONING: RELAY: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION





1. INSPECT MAGNET CLUTCH RELAY
(a) Check the resistance.
(1) Measure the resistance according to the value(s) in the table below.

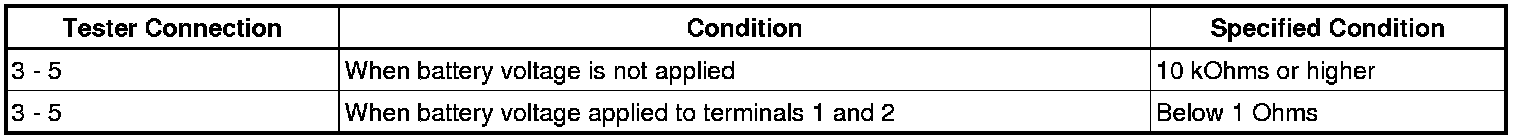

Standard Resistance:






If the result is not as specified, replace the relay.






2. INSPECT CONDENSER FAN RELAY
(a) Check the resistance.
(1) Measure the resistance according to the value(s) in the table below.
Standard Resistance:






If the result is not as specified, replace the relay.
