Toyota Truck
>>
2008
>>
Sequoia 2WD V8-4.7L (2UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Shift Solenoid, A/T
Shift Solenoid, A/T

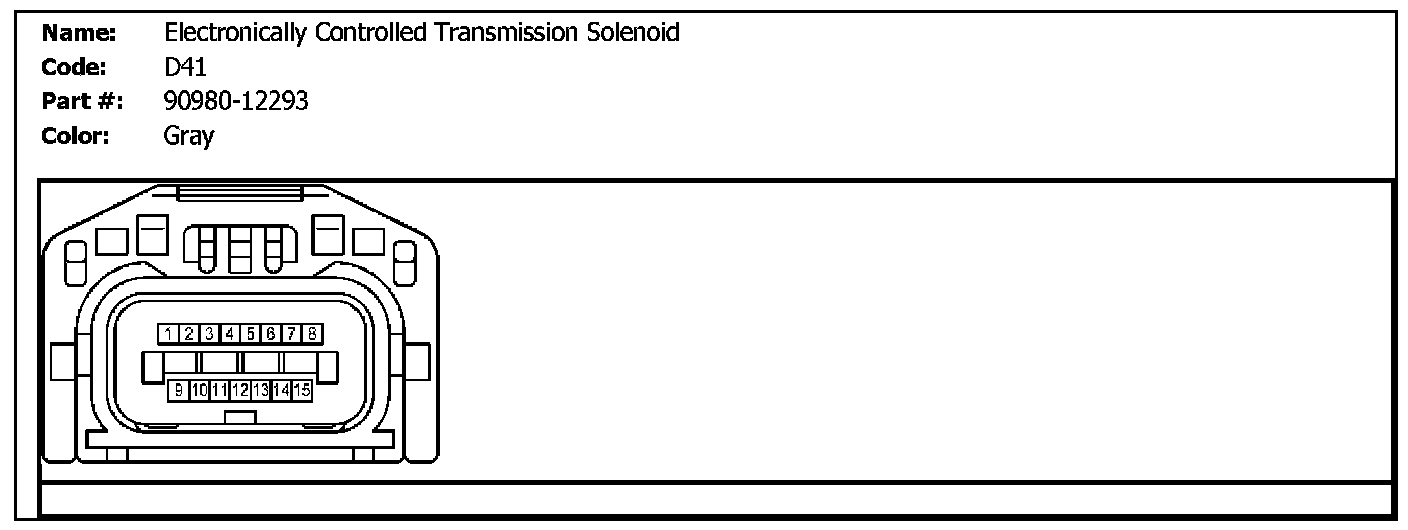

D41 (Electronically Controlled Transmission Solenoid):

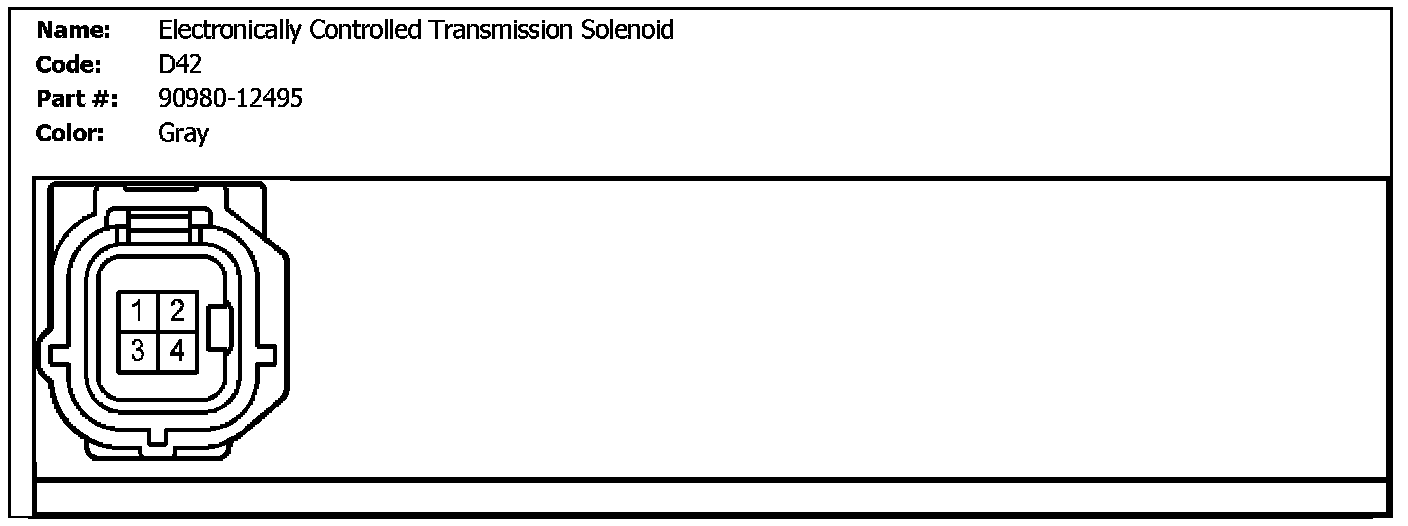

D42 (Electronically Controlled Transmission Solenoid):
