Frame Wire

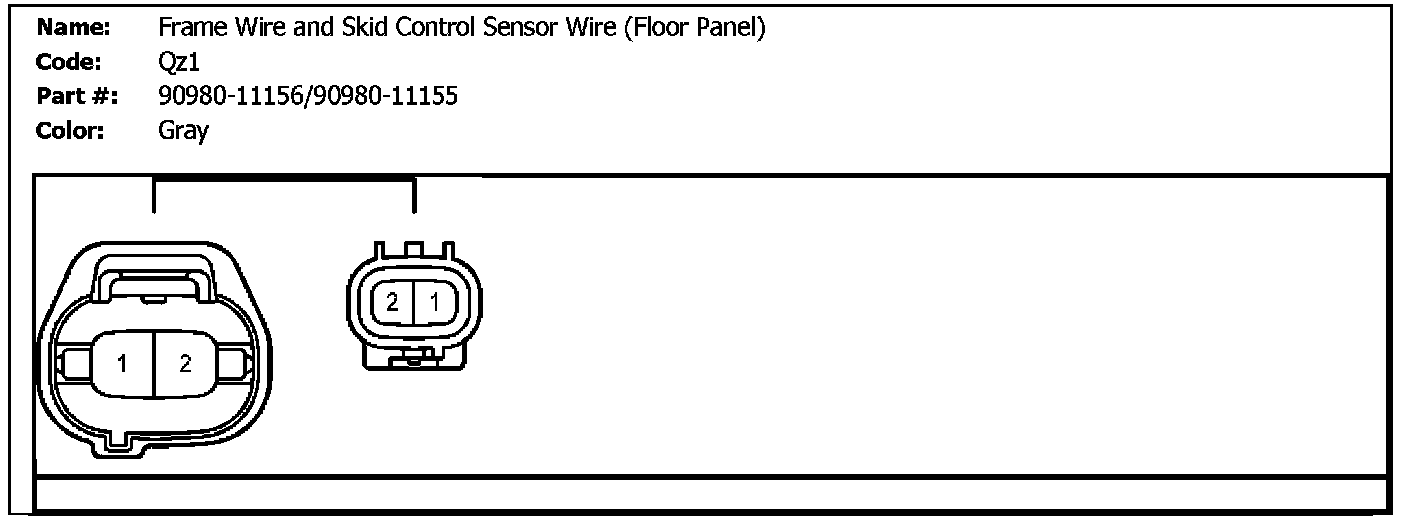

Qz1 (Frame Wire And Skid Control Sensor Wire (Floor Panel)):

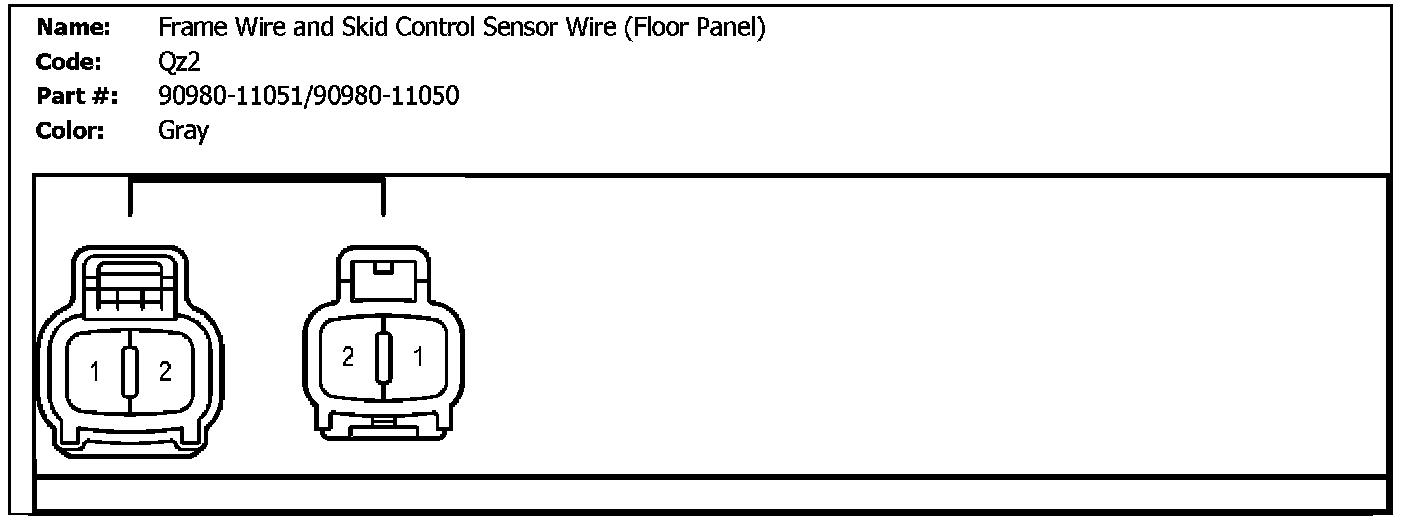

Qz2 (Frame Wire And Skid Control Sensor Wire (Floor Panel)):

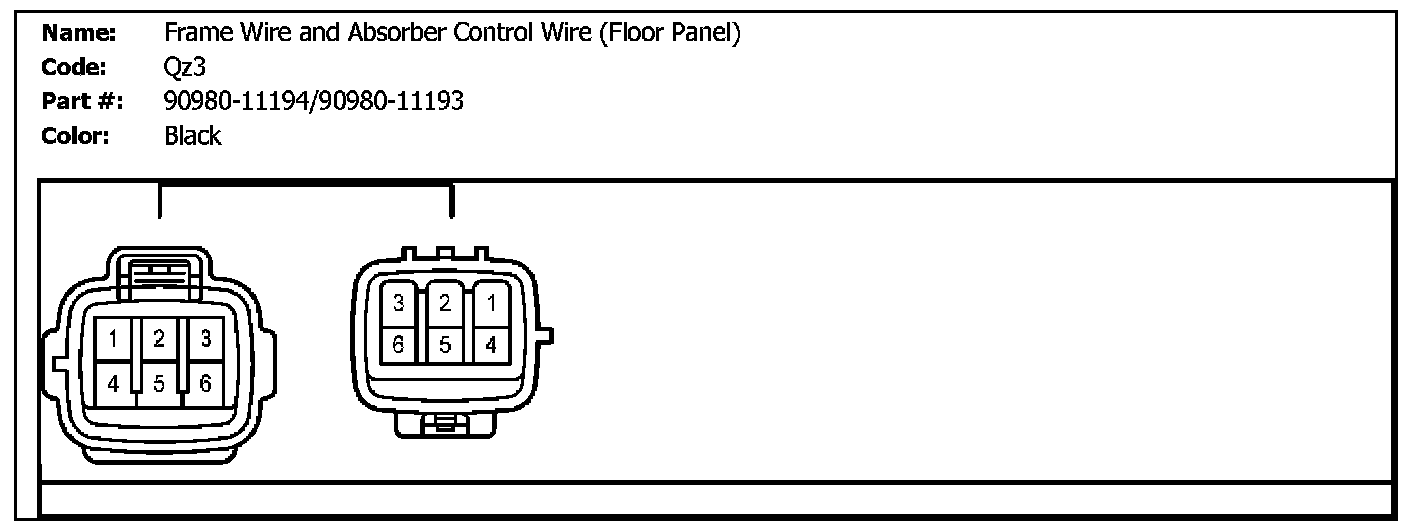

Qz3 (Frame Wire And Absorber Control Wire (Floor Panel)):

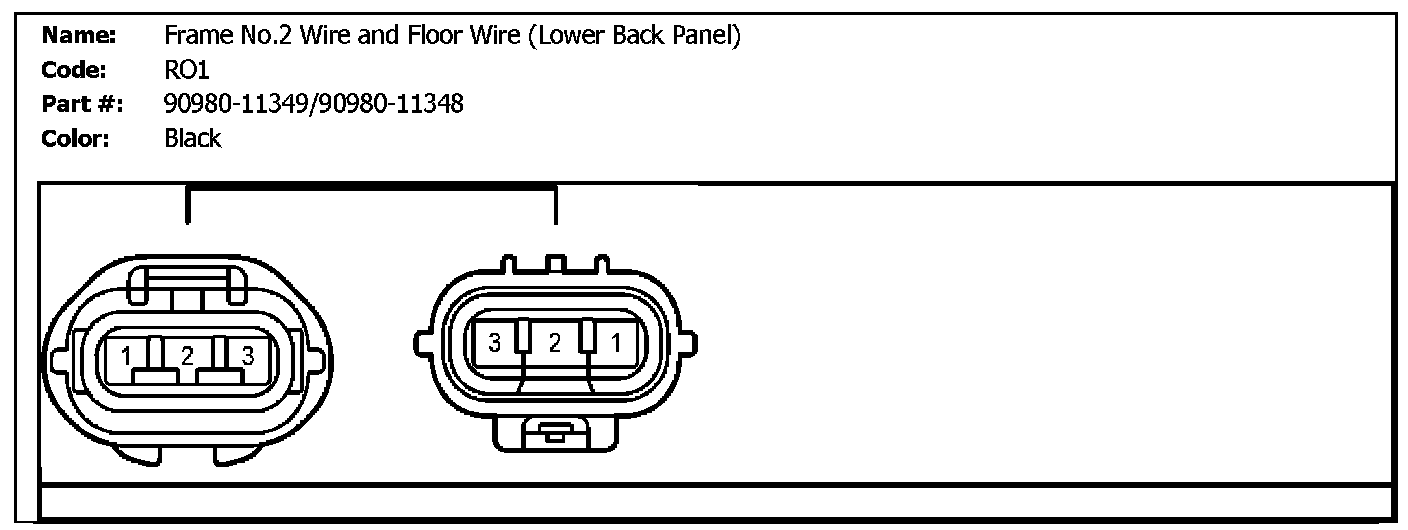

RO1 (Frame No.2 Wire And Floor Wire (Lower Back Panel)):
