Console Box Wire
Console Box Wire

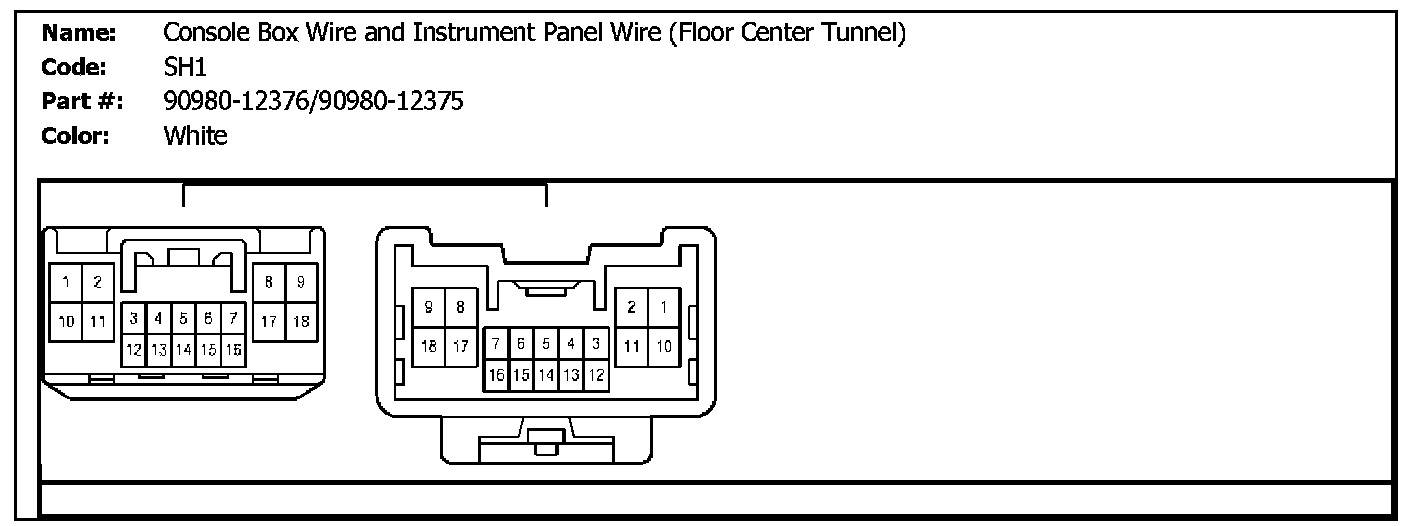

SH1 (Console Box Wire And Instrument Panel Wire (Floor Center Tunnel)):

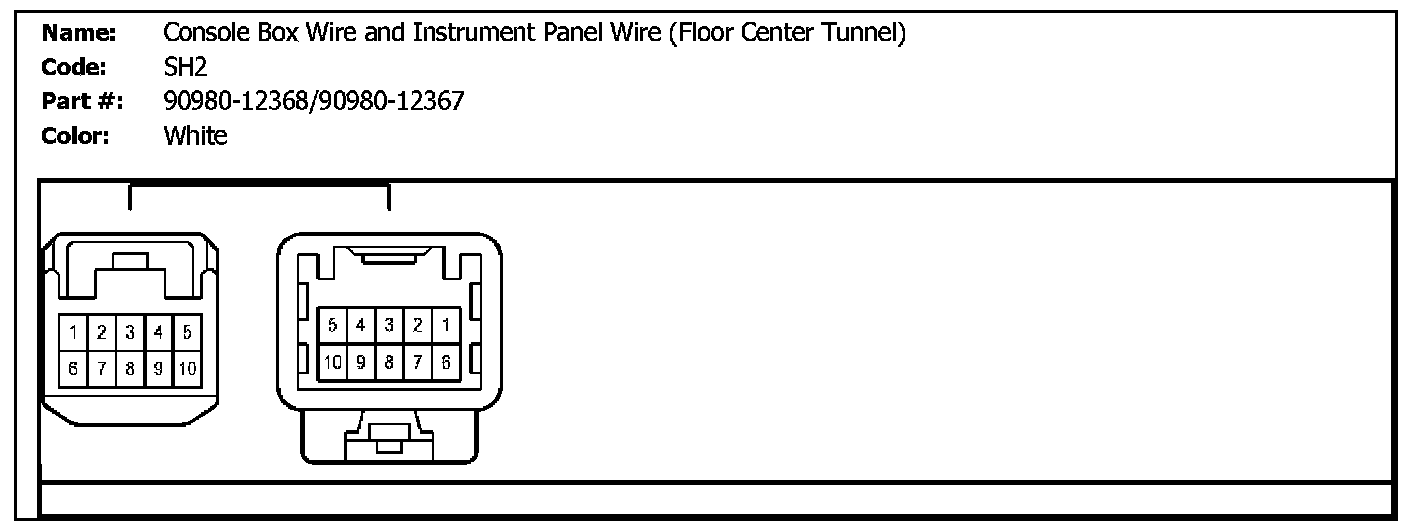

SH2 (Console Box Wire And Instrument Panel Wire (Floor Center Tunnel)):
