Power Window Motor

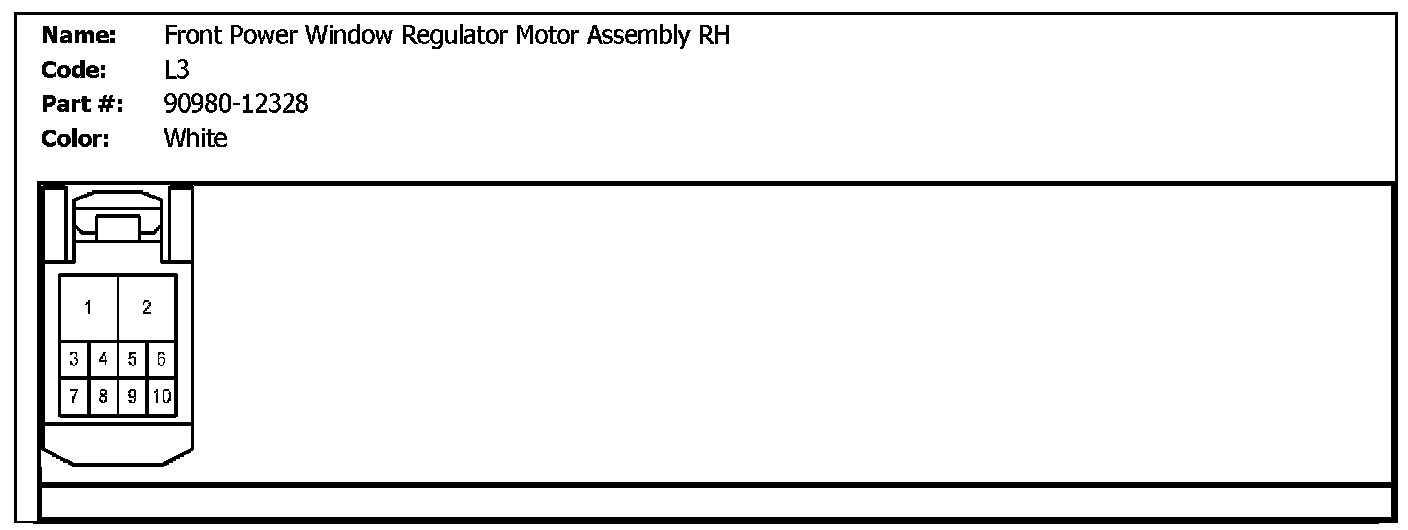

L3 (Front Power Window Regulator Motor Assembly RH):



M3 (Front Power Window Regulator Motor Assembly LH):

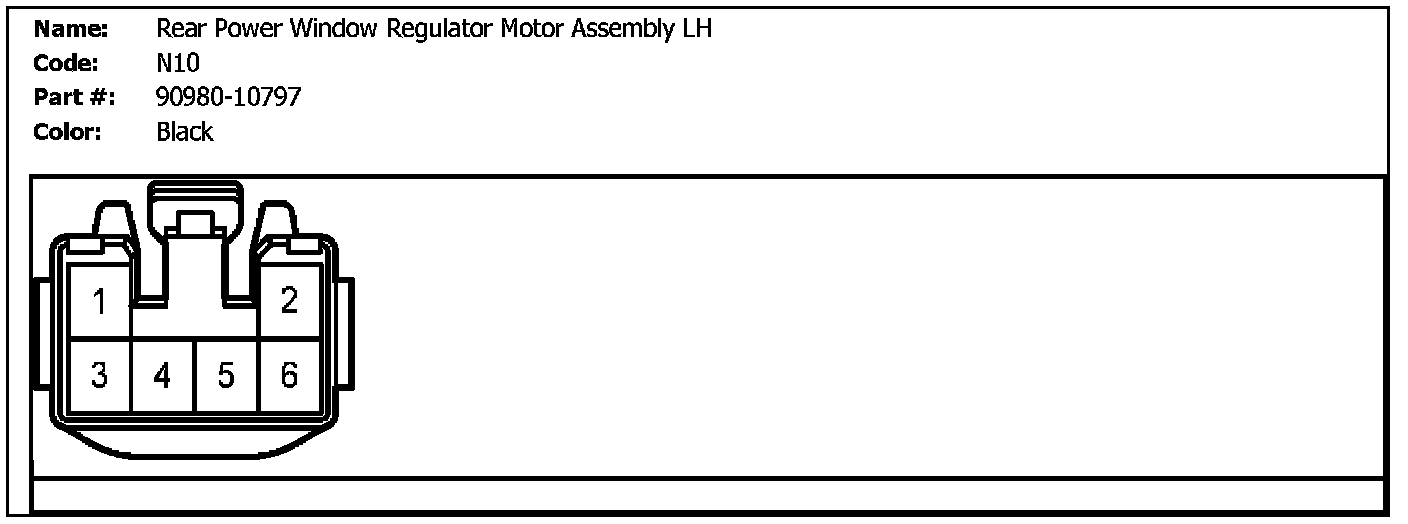

N10 (Rear Power Window Regulator Motor Assembly LH):

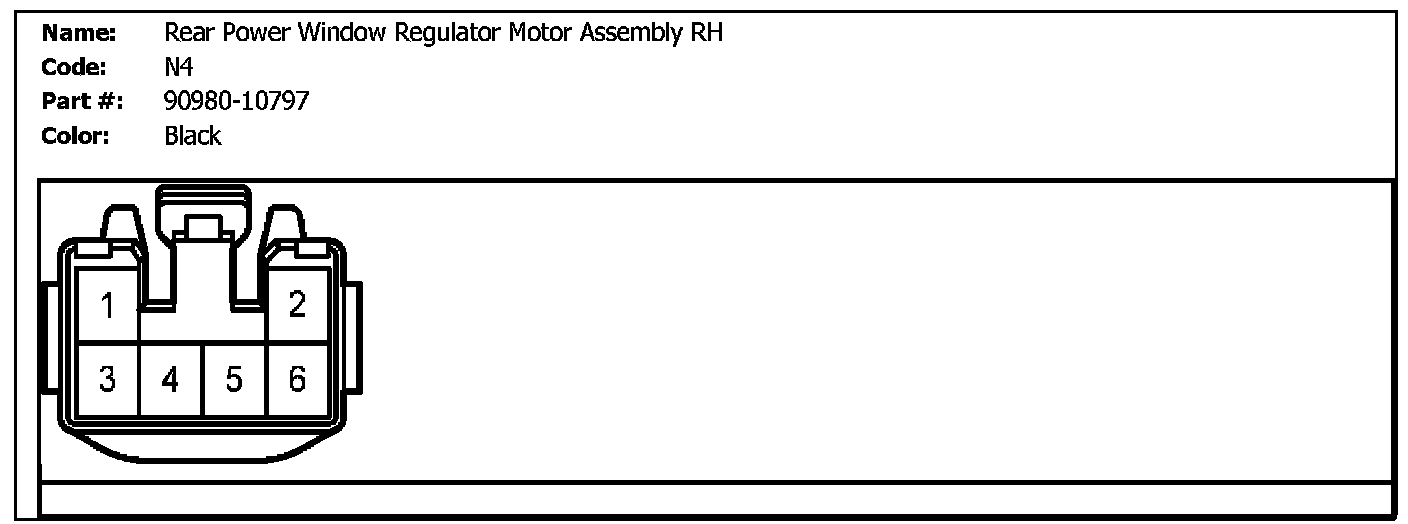

N4 (Rear Power Window Regulator Motor Assembly RH):

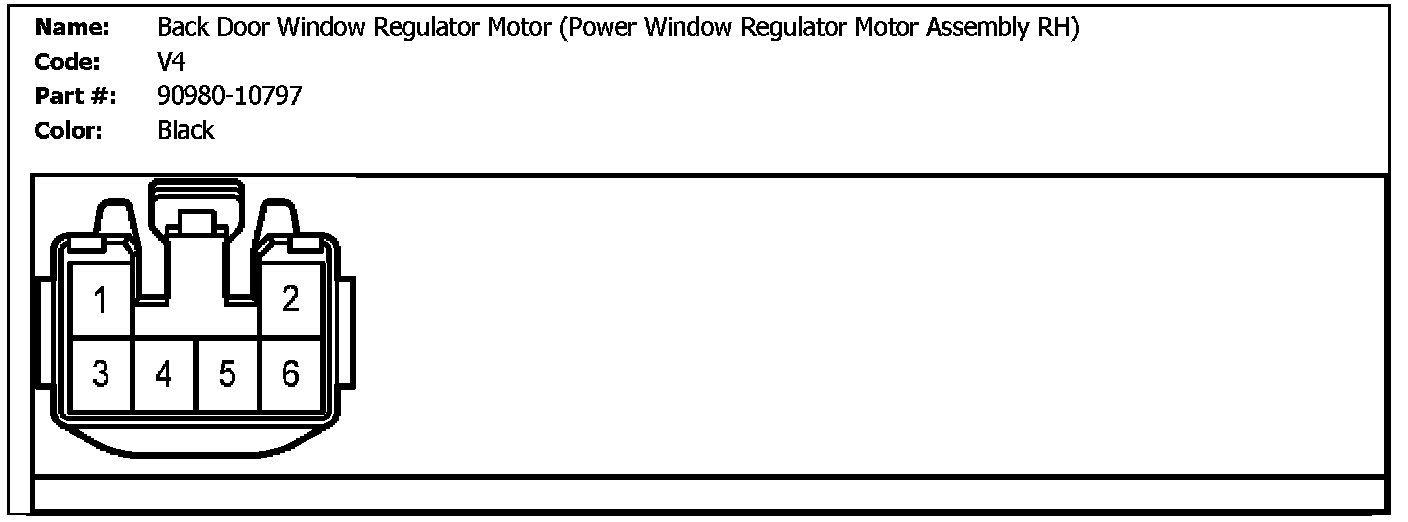

V4 (Back Door Window Regulator Motor (Power Window Regulator Motor Assembly RH)):
