Home
>>
Toyota Truck
>>
2008
>>
Sequoia 2WD V8-4.7L (2UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Hydraulic Control Assembly - Antilock Brakes
Hydraulic Control Assembly - Antilock Brakes

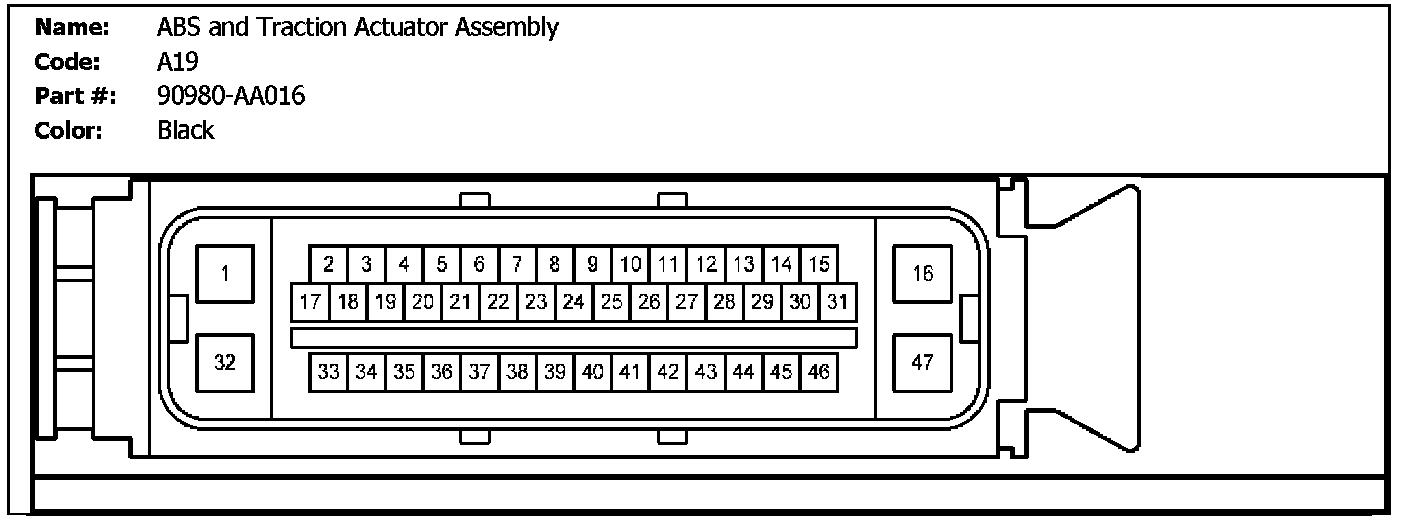

A19 (ABS And Traction Actuator Assembly):
