Dome Lamp
Dome Lamp
U10 (No.2 Room Light Assembly):

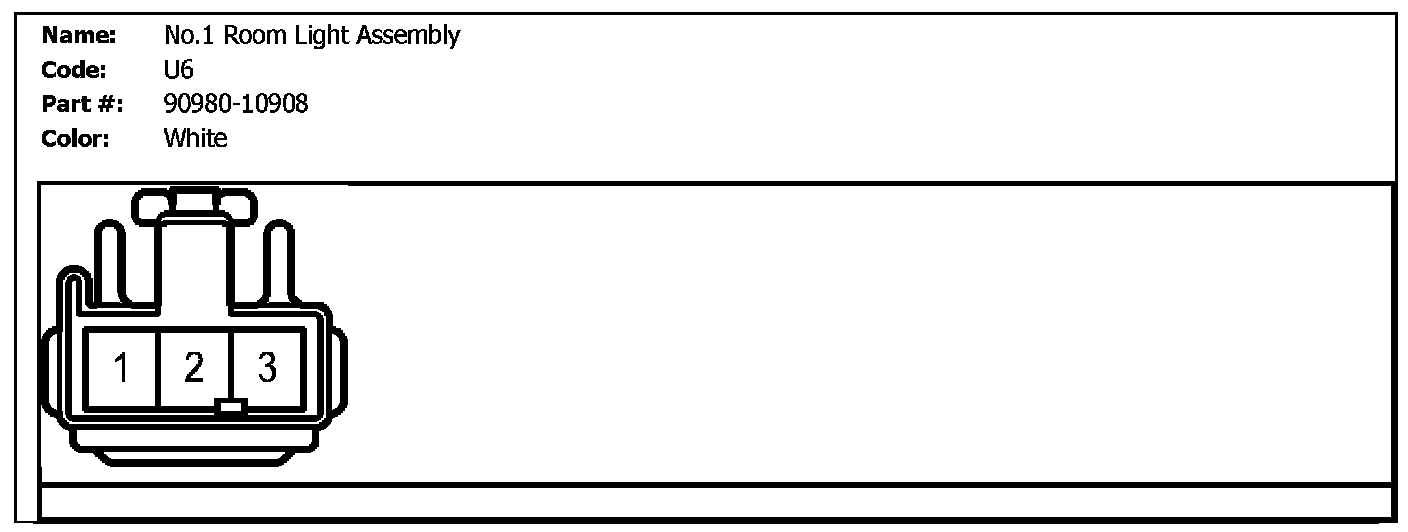

U6 (No.1 Room Light Assembly):

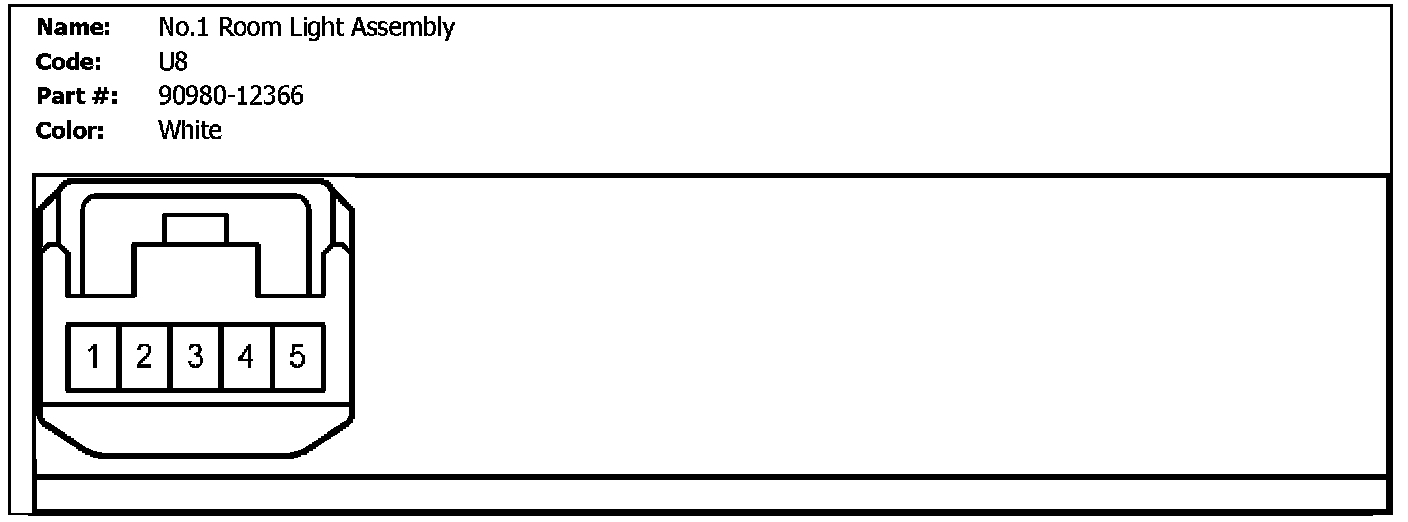

U8 (No.1 Room Light Assembly):
U9 (No.1 Room Light Assembly):
