Removal

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: FRONT SPEED SENSOR: REMOVAL

REMOVAL

1. REMOVE FRONT WHEEL






2. REMOVE FRONT SPEED SENSOR LH

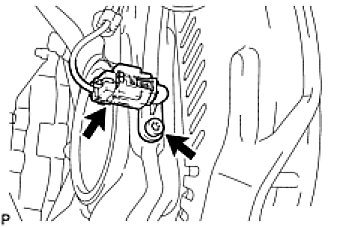

(a) Disconnect the front speed sensor connector.
(b) Using a hexagon wrench, remove the bolt and front speed sensor.
