BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: VSC OFF SWITCH: INSTALLATION

INSTALLATION





1. INSTALL TRACTION CONTROL SWITCH

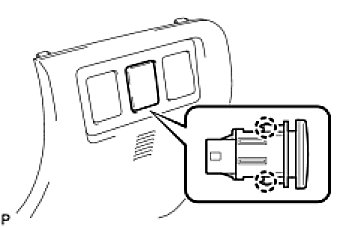

(a) Engage the 2 claws to install the traction control switch.
NOTE: Securely engage the 2 claws.

2. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH Installation

3. INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY Installation

4. INSTALL INSTRUMENT SIDE PANEL LH Installation

5. INSTALL COWL SIDE TRIM BOARD LH Installation

6. INSTALL FRONT DOOR SCUFF PLATE LH Installation
