BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: STEERING ANGLE SENSOR: INSTALLATION

INSTALLATION





1. INSTALL STEERING ANGLE SENSOR

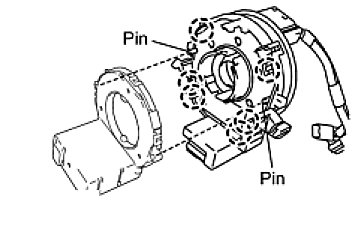

(a) Align the pins on the spiral cable with the installation holes on the steering sensor.
(b) Attach the 6 claws and install the spiral cable to the steering sensor.
2. INSTALL SPIRAL CABLE SUB-ASSEMBLY Installation

3. INSTALL UPPER STEERING COLUMN COVER Installation

4. INSTALL LOWER STEERING COLUMN COVER Installation

5. ADJUST SPIRAL CABLE Installation

6. INSTALL STEERING WHEEL ASSEMBLY Installation

7. INSTALL STEERING PAD Installation

8. INSTALL LOWER NO. 3 STEERING WHEEL COVER Installation

9. INSTALL LOWER NO. 2 STEERING WHEEL COVER Installation

10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

11. INSPECT SRS WARNING LIGHT
Diagnosis System
