Brake Fluid Pump Relay: Testing and Inspection

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: RELAY: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. CHECK STOP LIGHT CONTROL RELAY (BRK NO. 1, BRK NO. 2)
(a) Remove the 2 stop light control relays from the engine room relay block.






(b) Measure the resistance according to the value(s) in the table below.

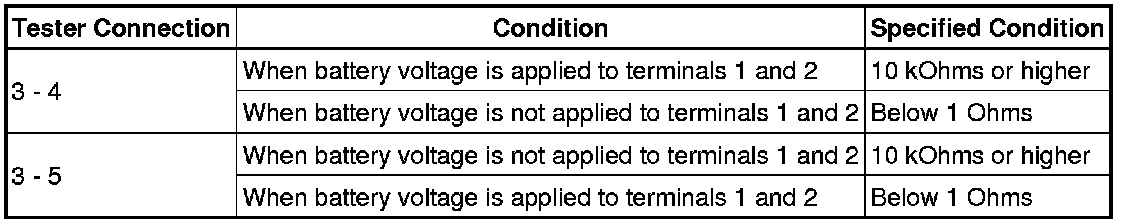

Standard Resistance:





If the result is not as specified, replace the relay.
(c) Install the 2 stop light control relays.
