Removal

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: YAW RATE AND DECELERATION SENSOR: REMOVAL

REMOVAL

1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY Removal

2. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY Removal

3. REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY Removal

4. REMOVE REAR CONSOLE BOX POCKET Removal

5. REMOVE CONSOLE BOX CARPET Removal

6. REMOVE REAR CONSOLE BOX ASSEMBLY Removal

7. REMOVE YAW RATE SENSOR

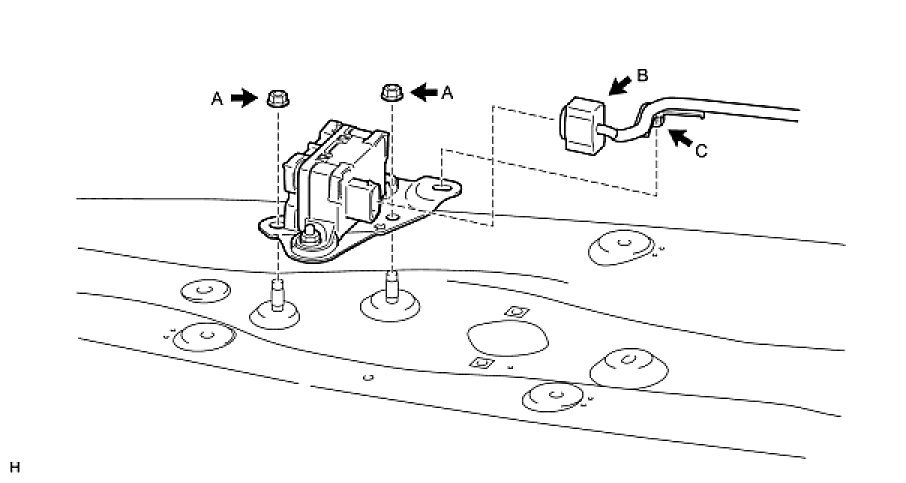

(a) Remove the 2 nuts (labeled A) and sensor.
(b) Disconnect the sensor connector (labeled B), and then detach the clamp (labeled C) from the sensor bracket.
