Seats: Specifications
SPECIFICATIONS: SEAT: TORQUE SPECIFICATIONS
TORQUE SPECIFICATIONS

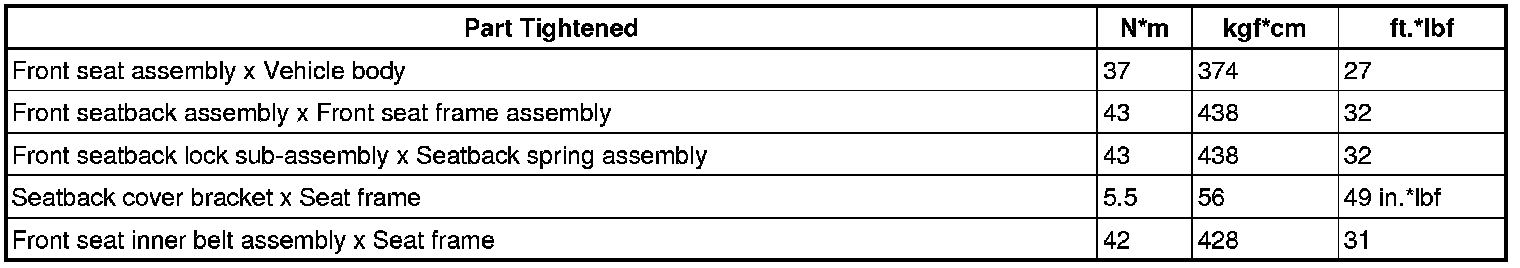

Front Seat Assembly (for Manual Seat)

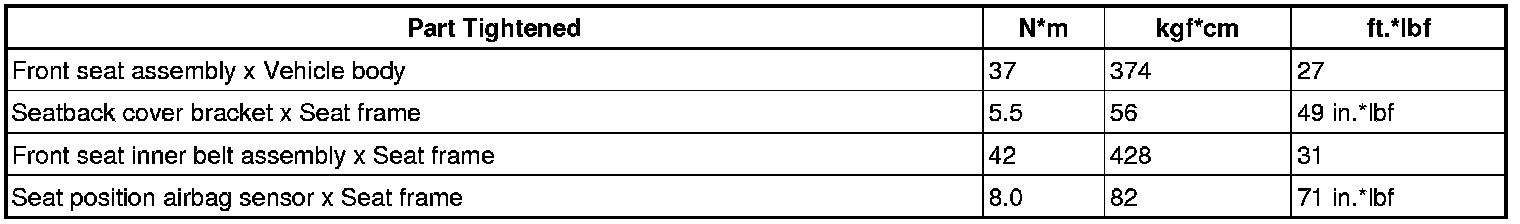

Front Seat Assembly (for Power Seat)
Front Seat Assembly (for Fold Down Seat Type)

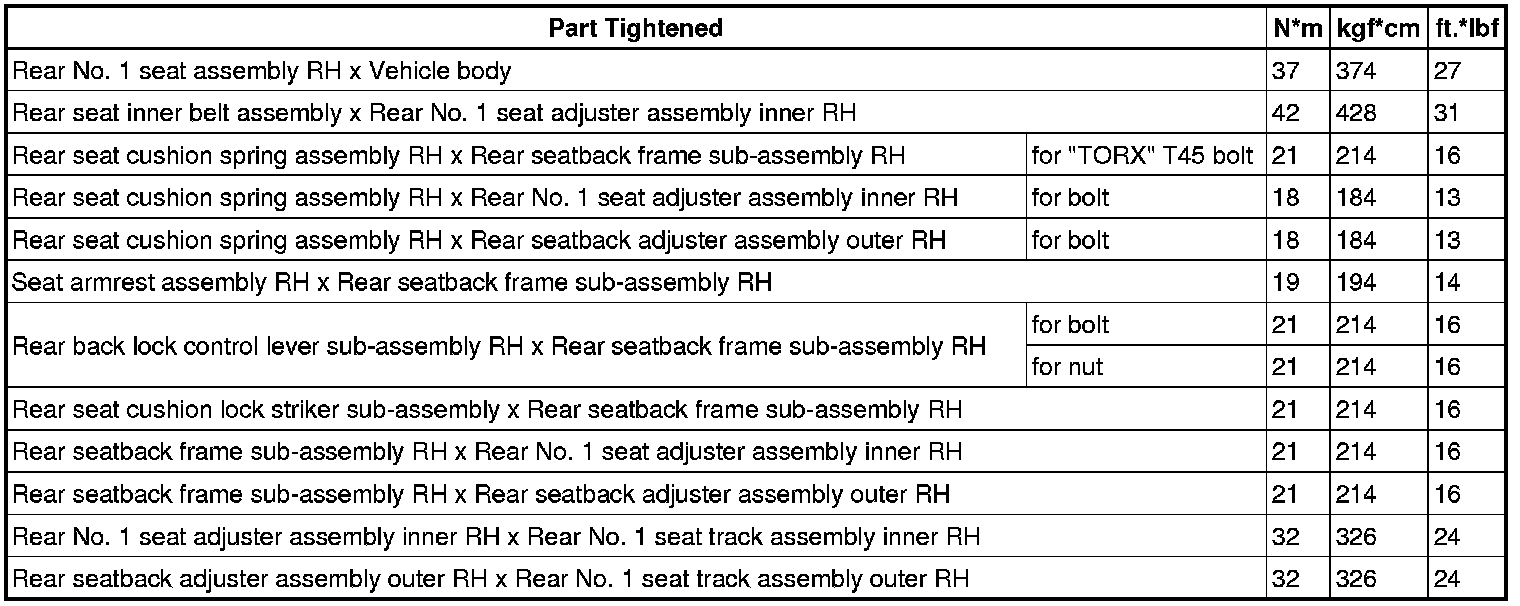

Rear No. 1 Seat Assembly

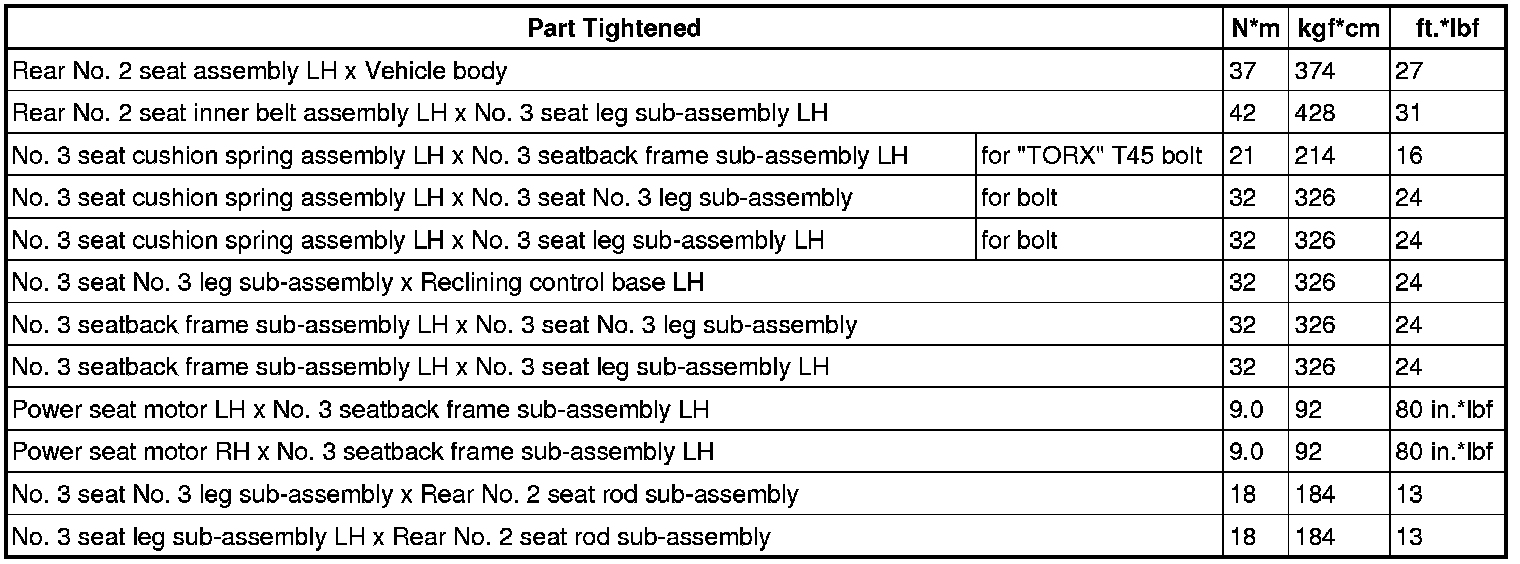

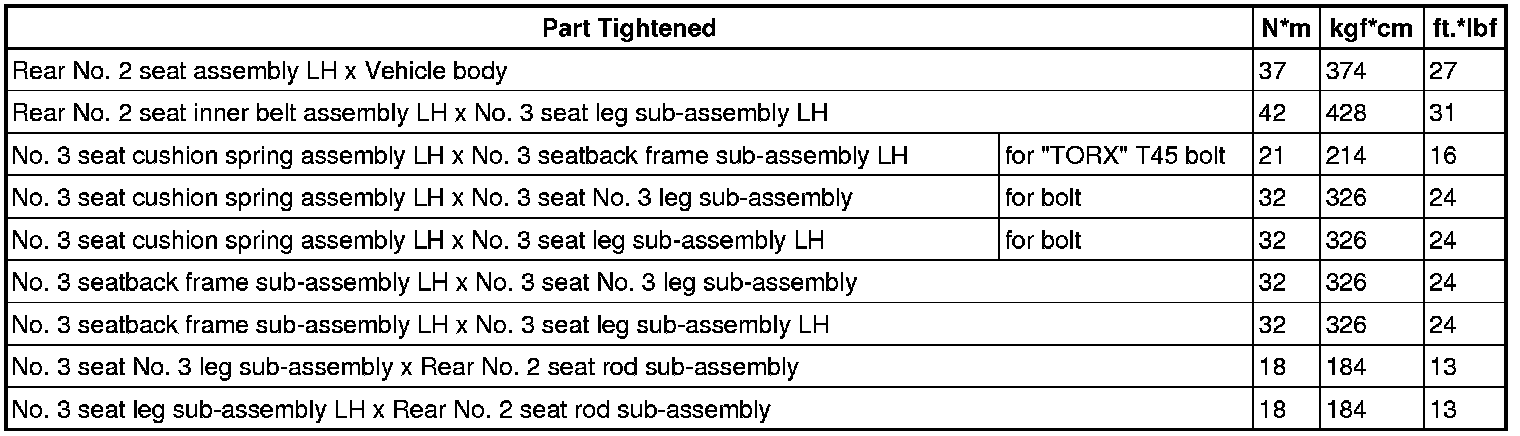

Rear No. 2 Seat Assembly (for Manual Seat Type LH Side)

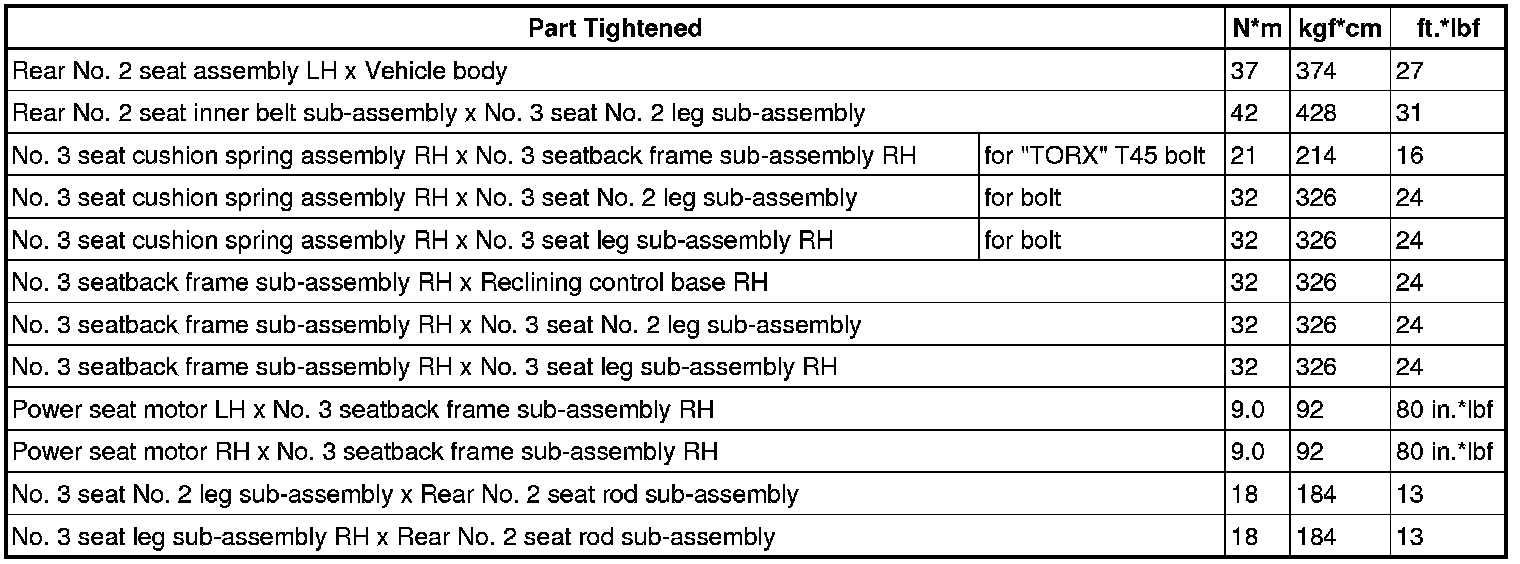

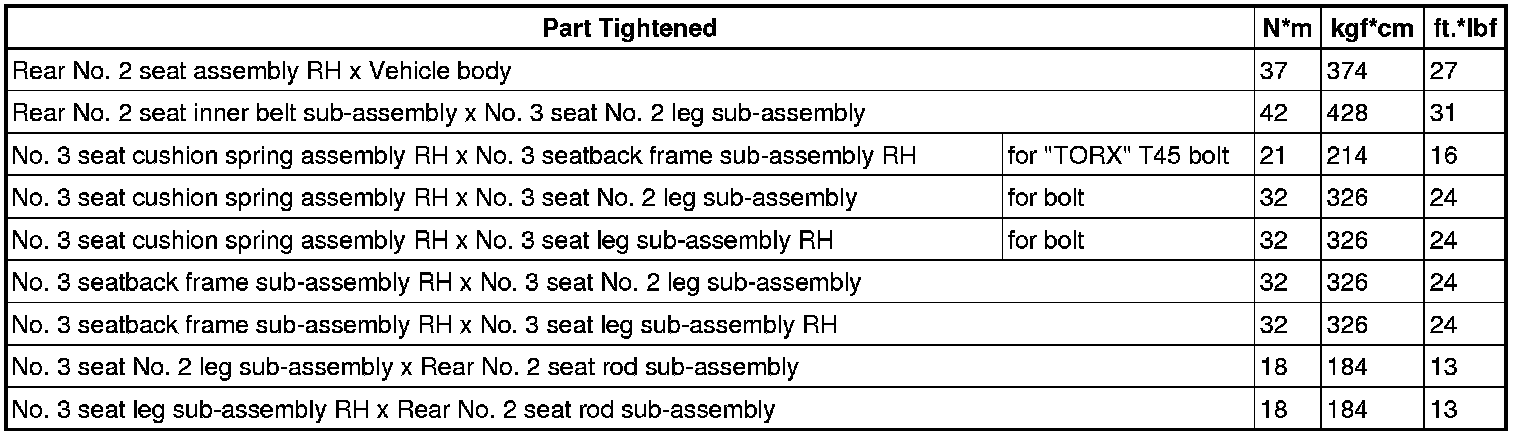

Rear No. 2 Seat Assembly (for Manual Seat Type RH Side)
Rear No. 2 Seat Assembly (for Power Seat Type LH Side)
Rear No. 2 Seat Assembly (for Power Seat Type RH Side)

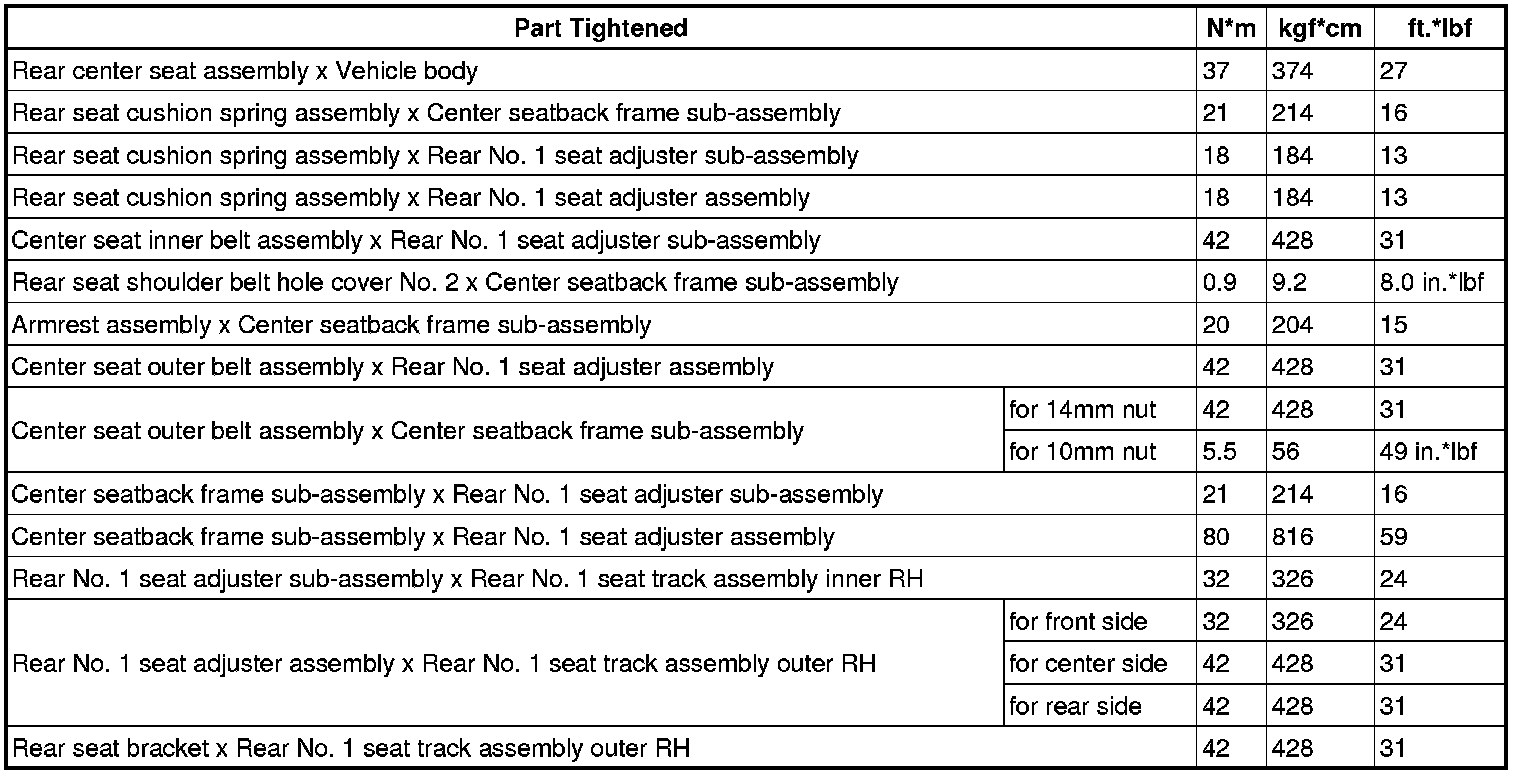

Rear center Seat Assembly
Power Seat Control ECU (for LH Side)
Power Seat Control ECU (for RH Side)
