System Description

SEAT: REAR POWER SEAT CONTROL SYSTEM: SYSTEM DESCRIPTION

SYSTEM DESCRIPTION

1. REAR POWER SEAT CONTROL SYSTEM DESCRIPTION

- A rear seat with power folding system has been adopted for the third-row seats.
- This system has the following functions: reclining; folding and return; and jam protection.
- This system is adopted for both the left and right seats. Each system operates independently.

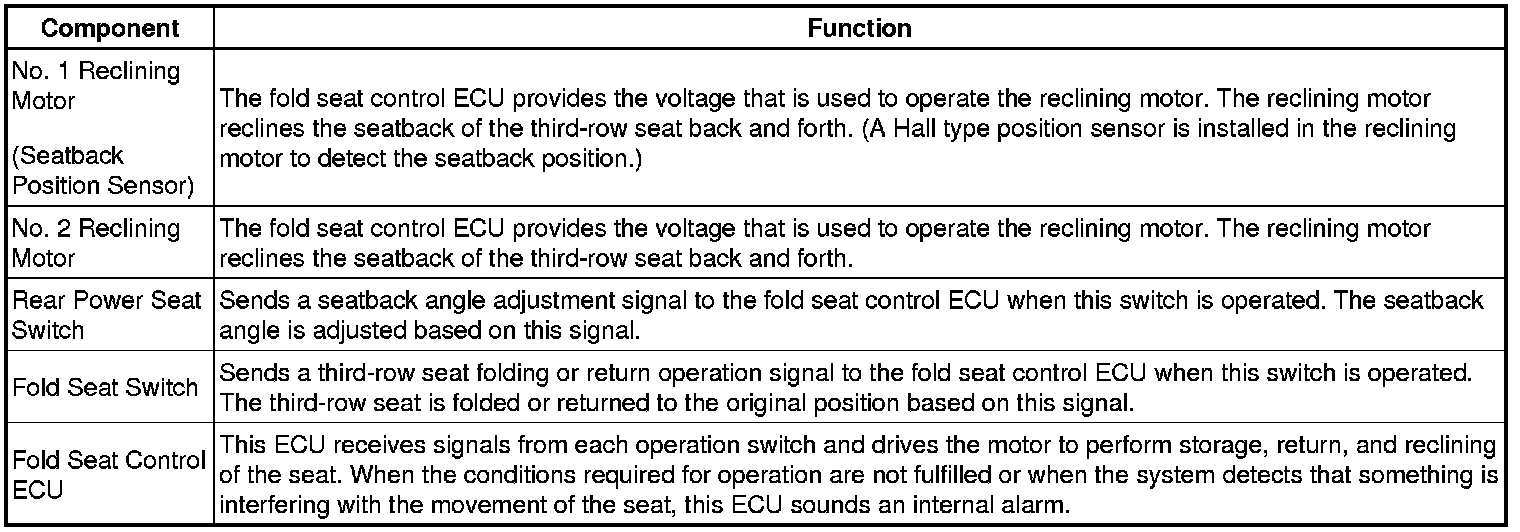

2. FUNCTIONS OF MAIN COMPONENTS
