System Diagram








SEAT: FRONT POWER SEAT CONTROL SYSTEM (w/ Memory): SYSTEM DIAGRAM

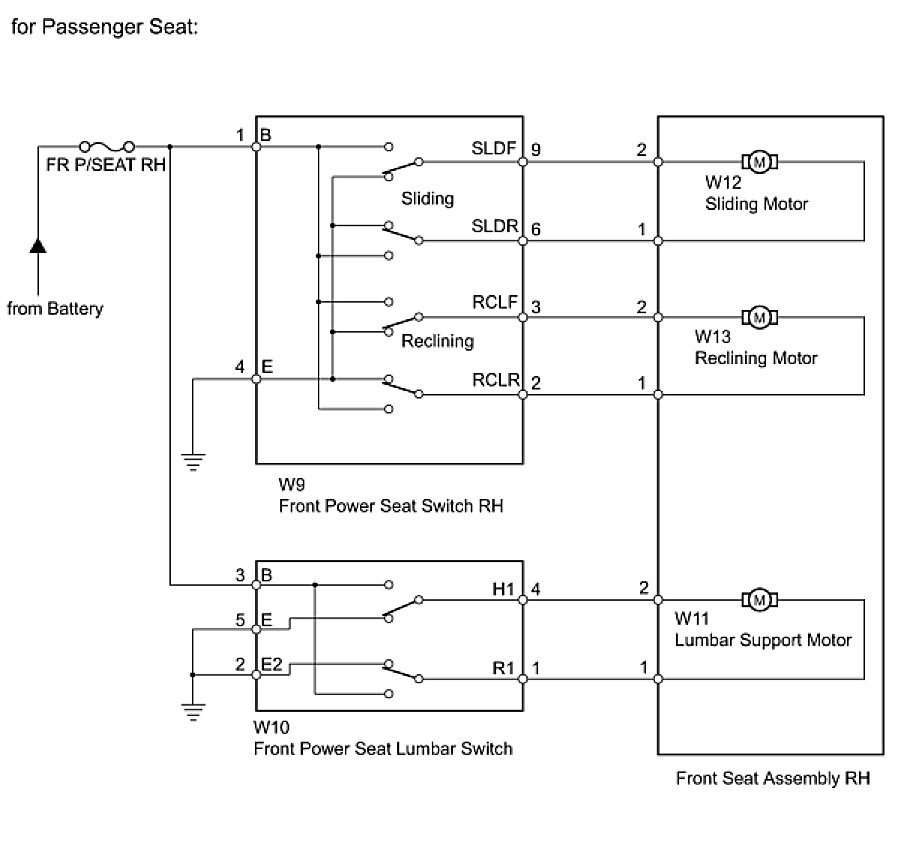

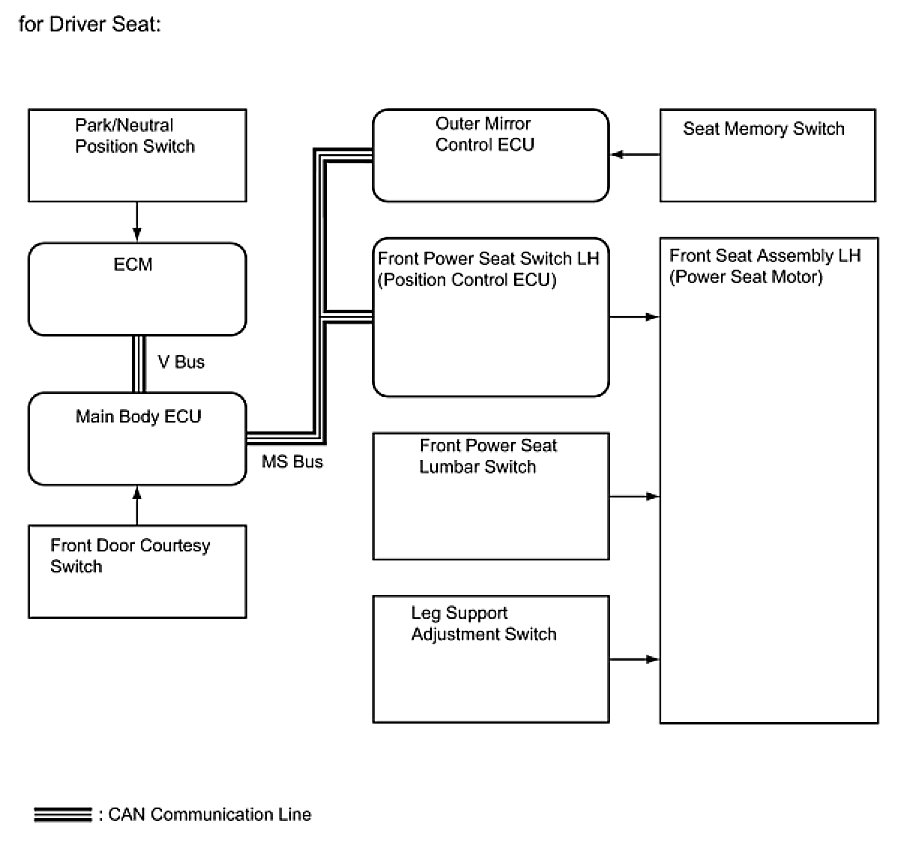

SYSTEM DIAGRAM

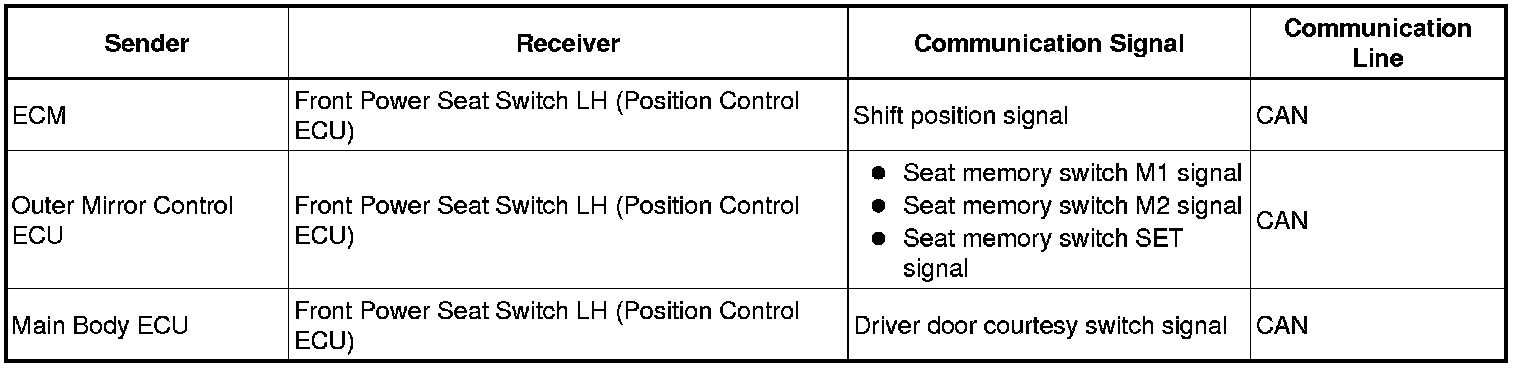

Communication Table:
