MIRROR (EXT): OUTER REAR VIEW MIRROR: INSTALLATION

INSTALLATION





1. INSTALL OUTER REAR VIEW MIRROR ASSEMBLY

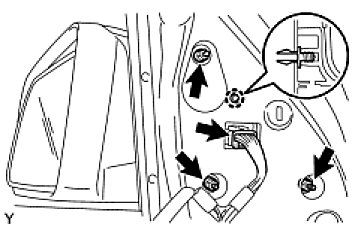

(a) Temporarily install the mirror by inserting the claw on the mirror into the holes on the vehicle.
(b) Tighten the 3 nuts in the sequence shown in the illustration and install the mirror.
Torque: 8.0 Nm (82 kgf-cm, 71 in-lbf)
2. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY Reassembly

3. INSTALL FRONT ARMREST BASE UPPER PANEL Reassembly

4. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG Reassembly

5. INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH (for 14 Speakers) Reassembly

6. INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH Reassembly
