Power Mirror Control System (w/ Memory)
>>
System Diagram
System Diagram

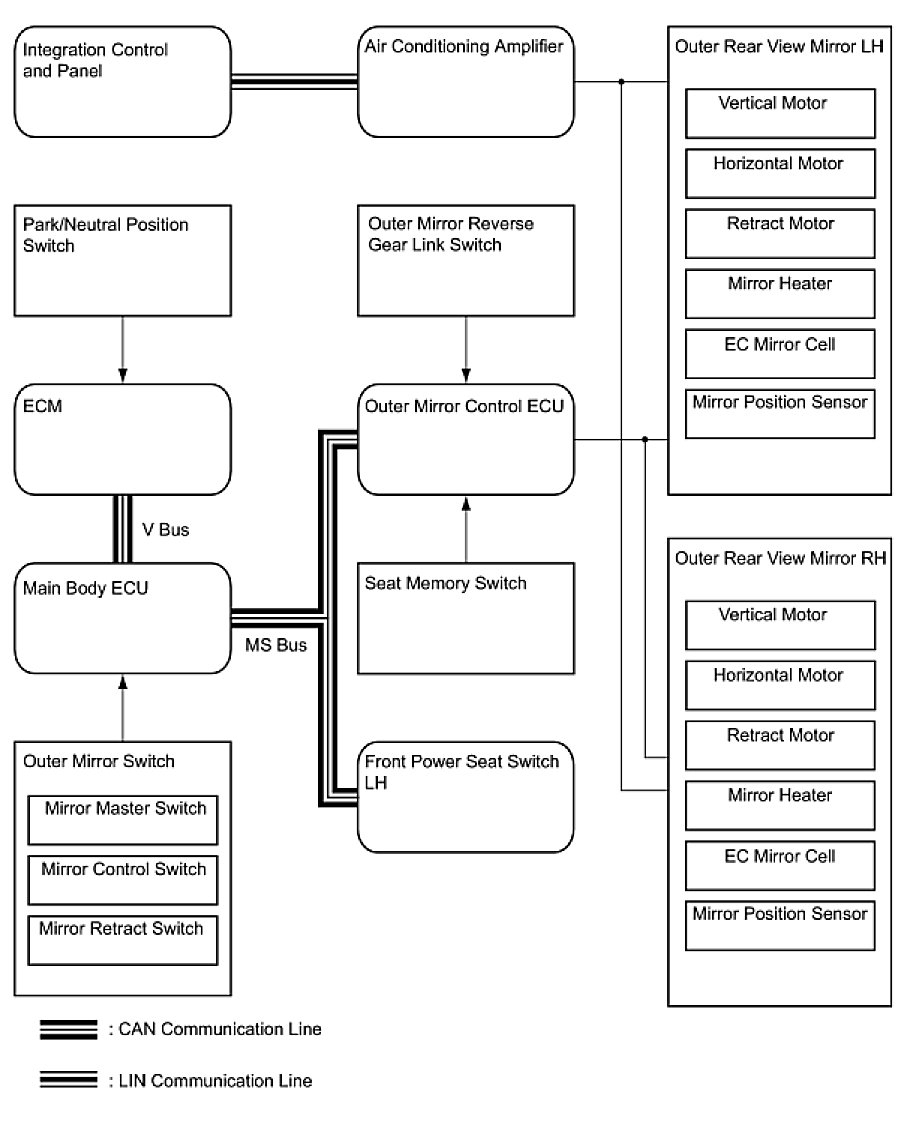

MIRROR (EXT): POWER MIRROR CONTROL SYSTEM (w/ Memory): SYSTEM DIAGRAM
SYSTEM DIAGRAM

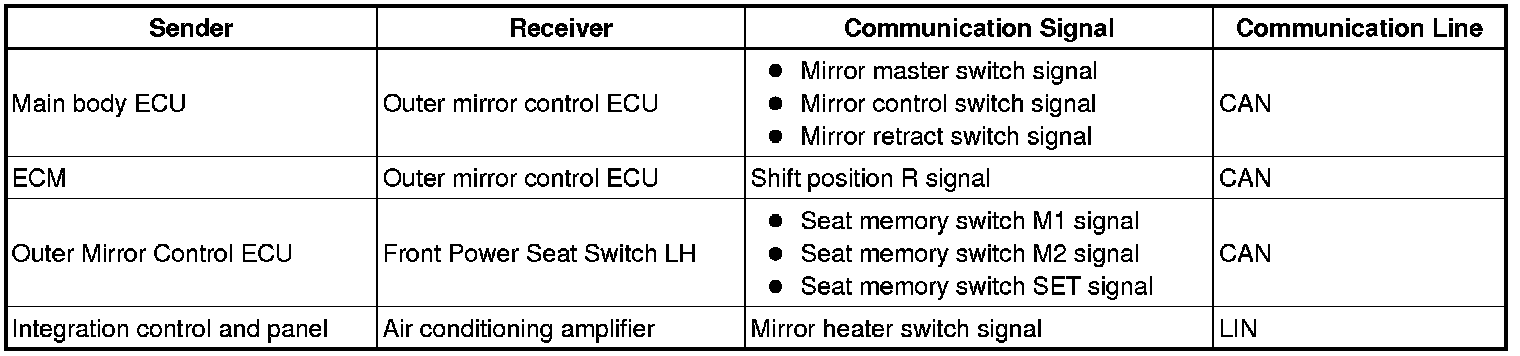

Communication Table
