Removal

THEFT DETERRENT / KEYLESS ENTRY: ENGINE HOOD COURTESY SWITCH: REMOVAL

REMOVAL

1. REMOVE HOOD LOCK CONTROL CABLE COVER Removal

2. REMOVE HOOD LOCK ASSEMBLY

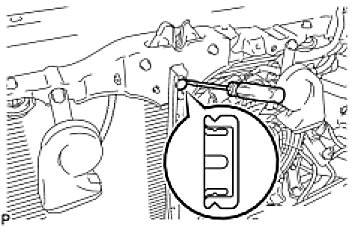

(a) Using a screwdriver, remove the hood lock nut cap.






(b) Remove the 2 bolts and nut and remove the hood lock assembly.
