Installation

THEFT DETERRENT / KEYLESS ENTRY: ENGINE HOOD COURTESY SWITCH: INSTALLATION

INSTALLATION

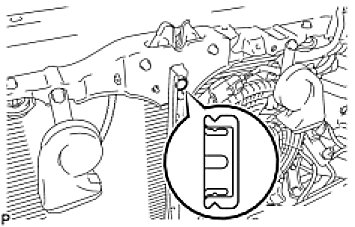

1. INSTALL HOOD LOCK ASSEMBLY






(a) Install the hood lock assembly with the nut and 2 bolts.
Torque: 8.0 Nm (82 kgf-cm, 71 in-lbf)






(b) Install a new hood lock nut cap.
2. INSPECT HOOD LOCK ASSEMBLY Adjustments

3. ADJUST HOOD LOCK ASSEMBLY Adjustments

4. INSTALL HOOD LOCK CONTROL CABLE COVER Installation
