Reassembly

U151F AUTOMATIC TRANSAXLE: FLOOR SHIFT ASSEMBLY: REASSEMBLY

REASSEMBLY





1. INSTALL SHIFT LOCK RELEASE BUTTON

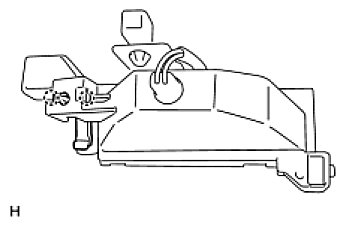

(a) Install the spring and button and attach the claws to the position indicator light housing.
2. INSTALL INDICATOR LIGHT WIRE SUB-ASSEMBLY






3. INSTALL POSITION INDICATOR LIGHT HOUSING

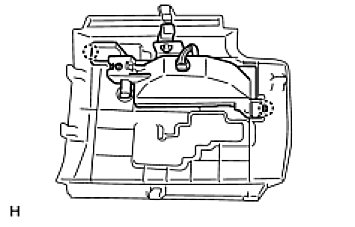

(a) Install the indicator light housing and attach the 2 claws to the shift position indicator housing.






4. INSTALL LOWER POSITION INDICATOR HOUSING
(a) Install the position indicator slide cover with slide No. 2 cover to the indicator housing.

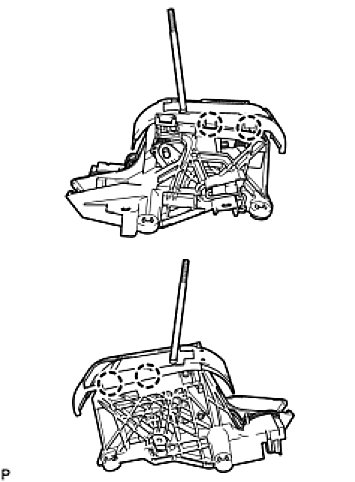

(b) Install the housing and attach the 4 claws to the floor shift assembly.
