Engine Hood / Door

SERVICE SPECIFICATIONS: ENGINE HOOD / DOOR: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

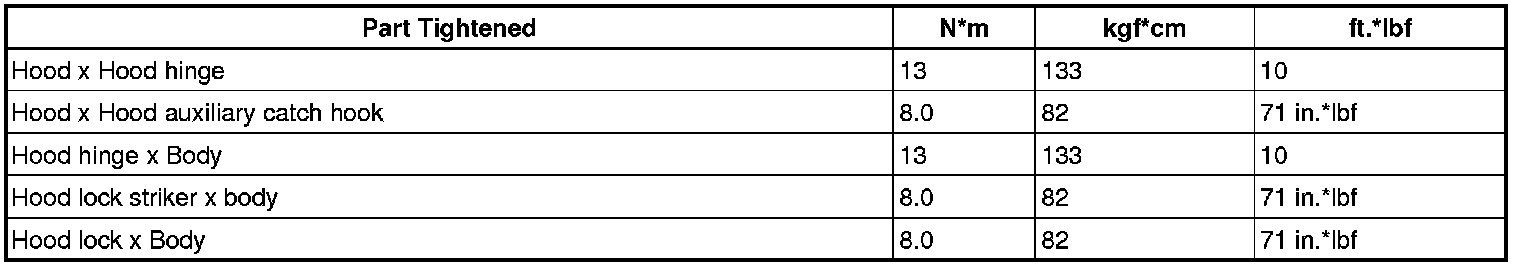

HOOD

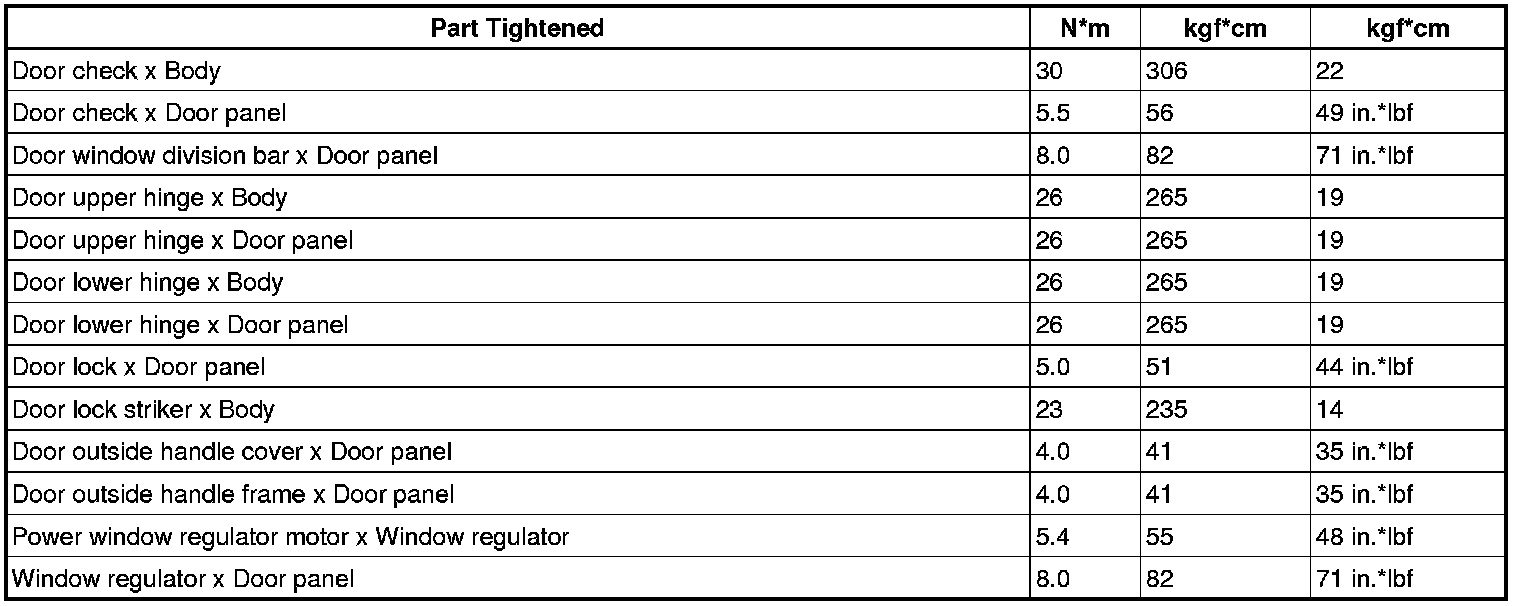

FRONT DOOR

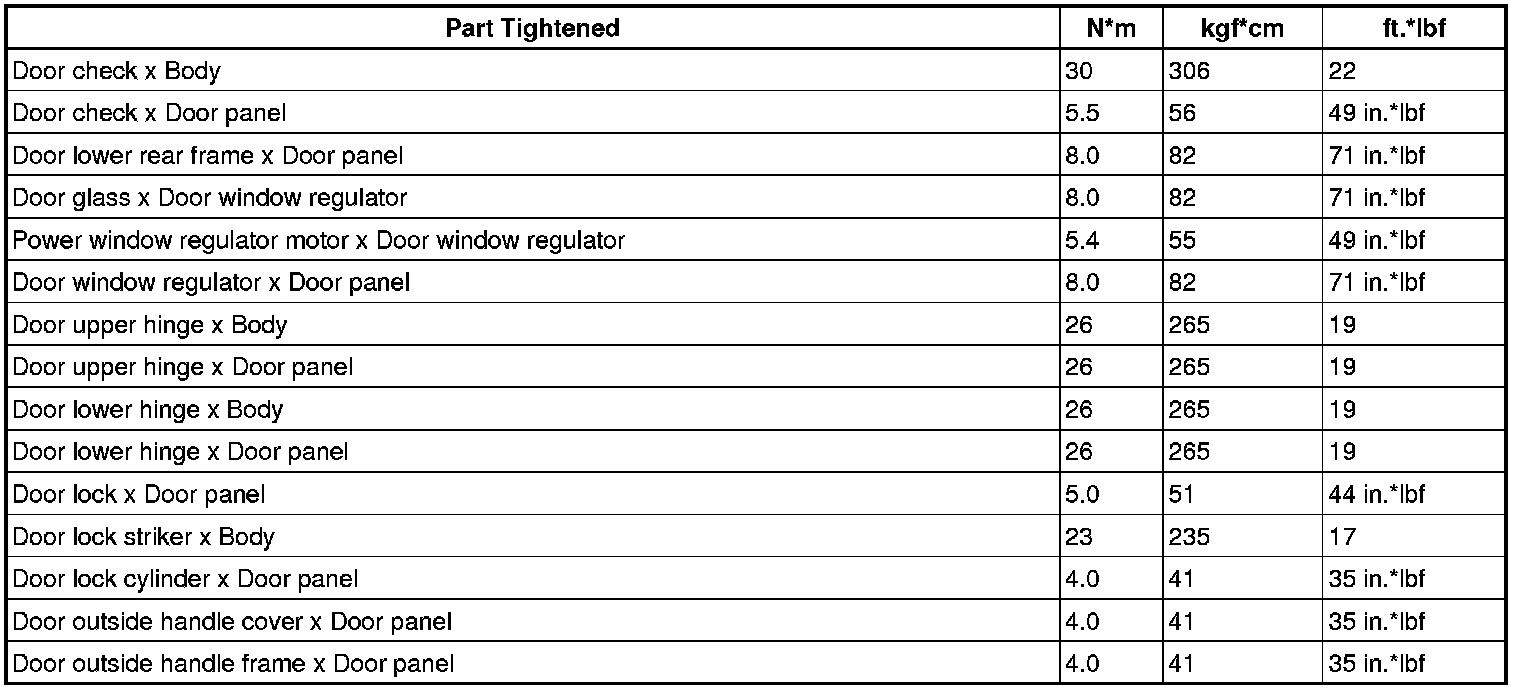

REAR DOOR

BACK DOOR
