Toyota Truck
>>
2008
>>
RAV4 4WD V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Fuel Pump
>>
Service and Repair
>>
Components
Components

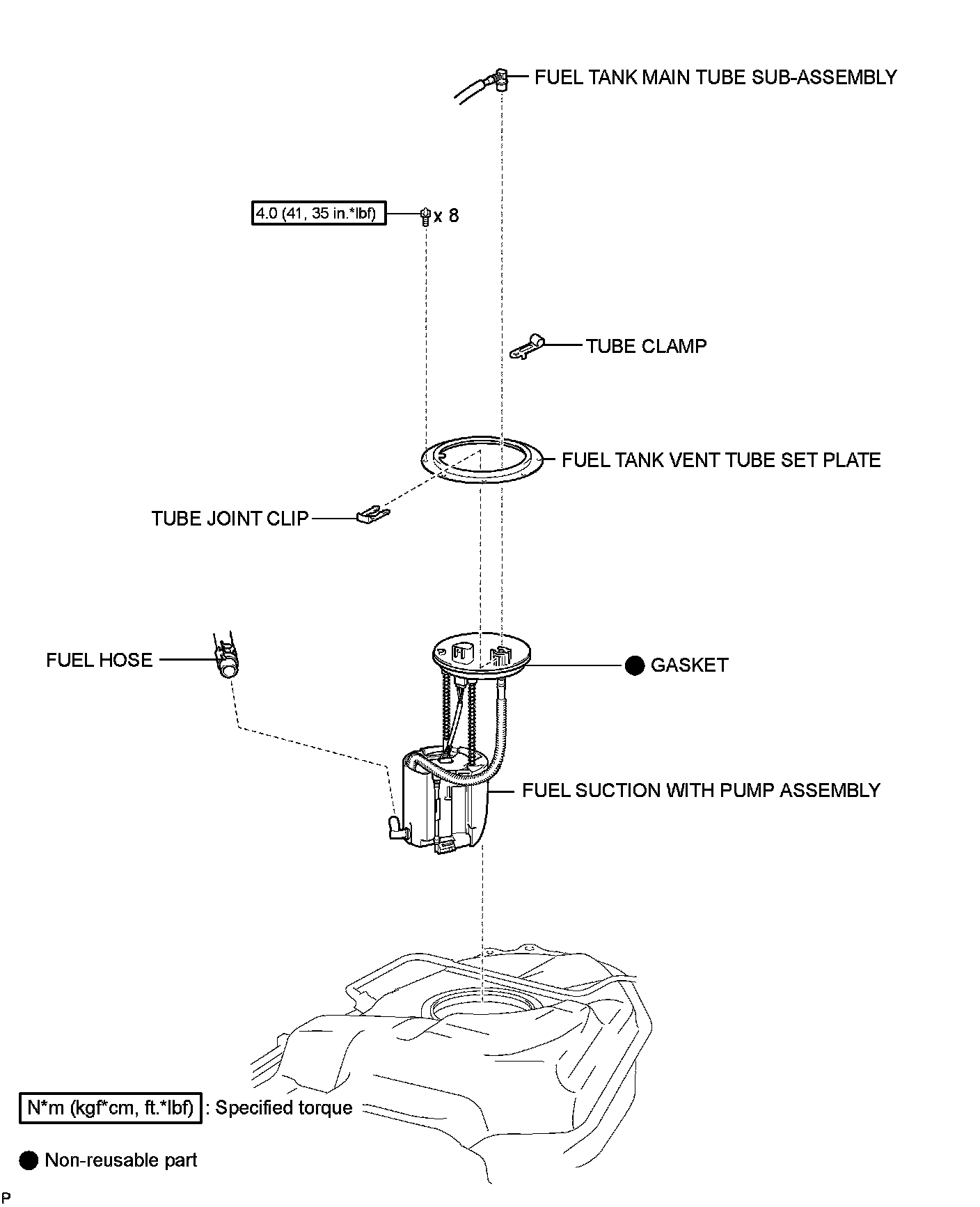

2GR-FE FUEL:
FUEL PUMP
: COMPONENTS
COMPONENTS
ILLUSTRATION
