Engine Control System - SFI System

2GR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART
HINT: Parameters listed in the chart may be different than your readings depending on the type of instrument and other factors.

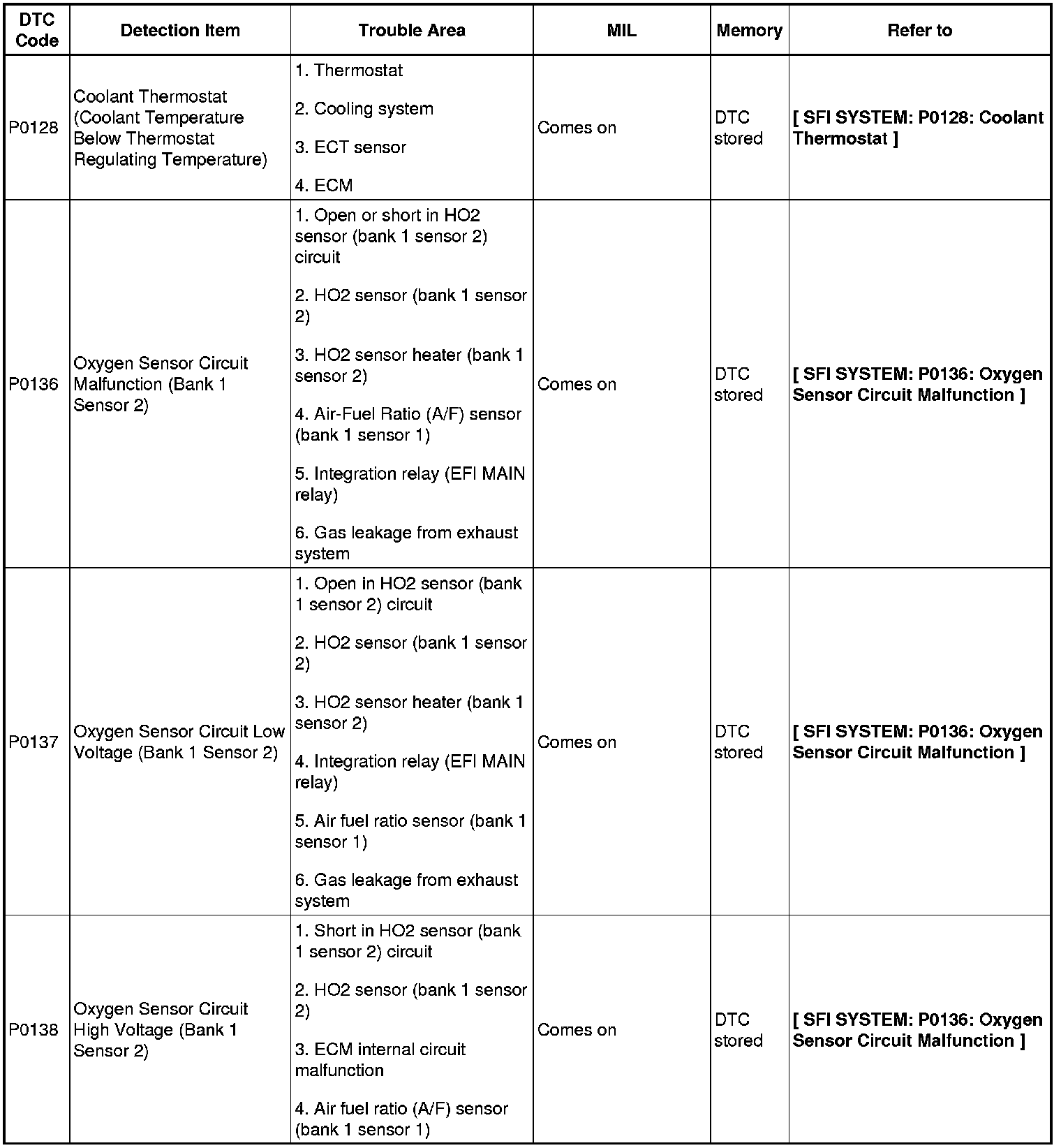

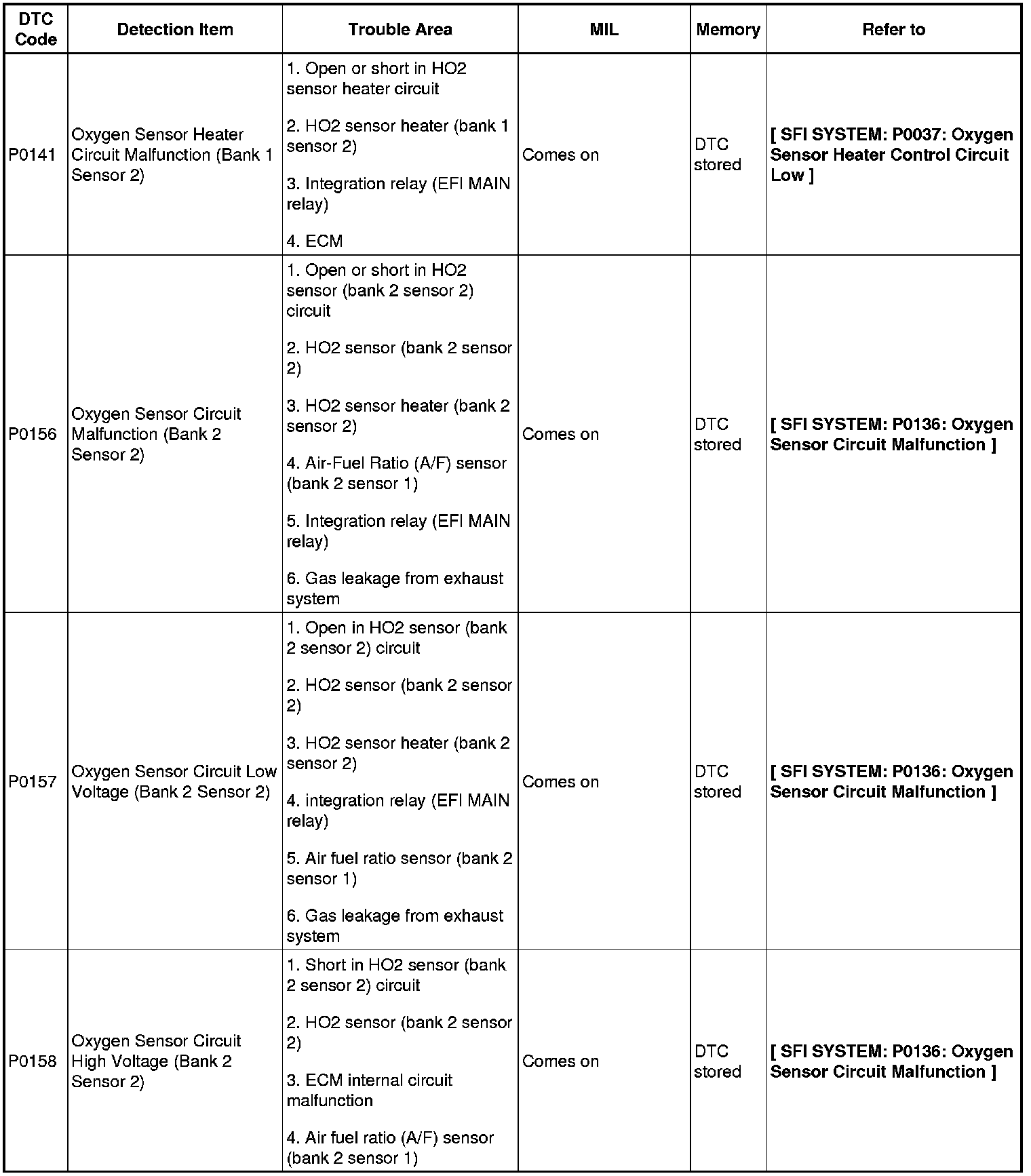

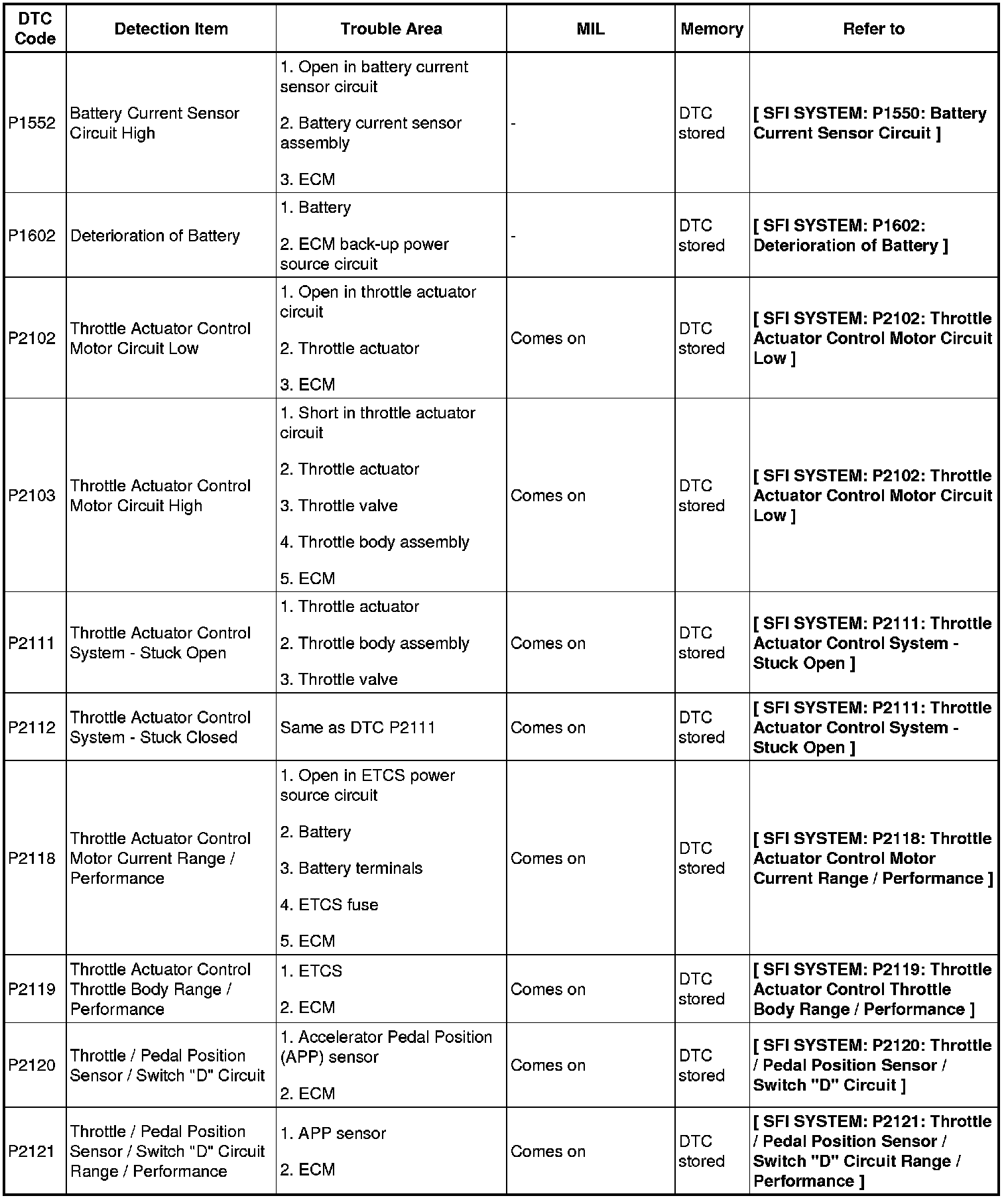

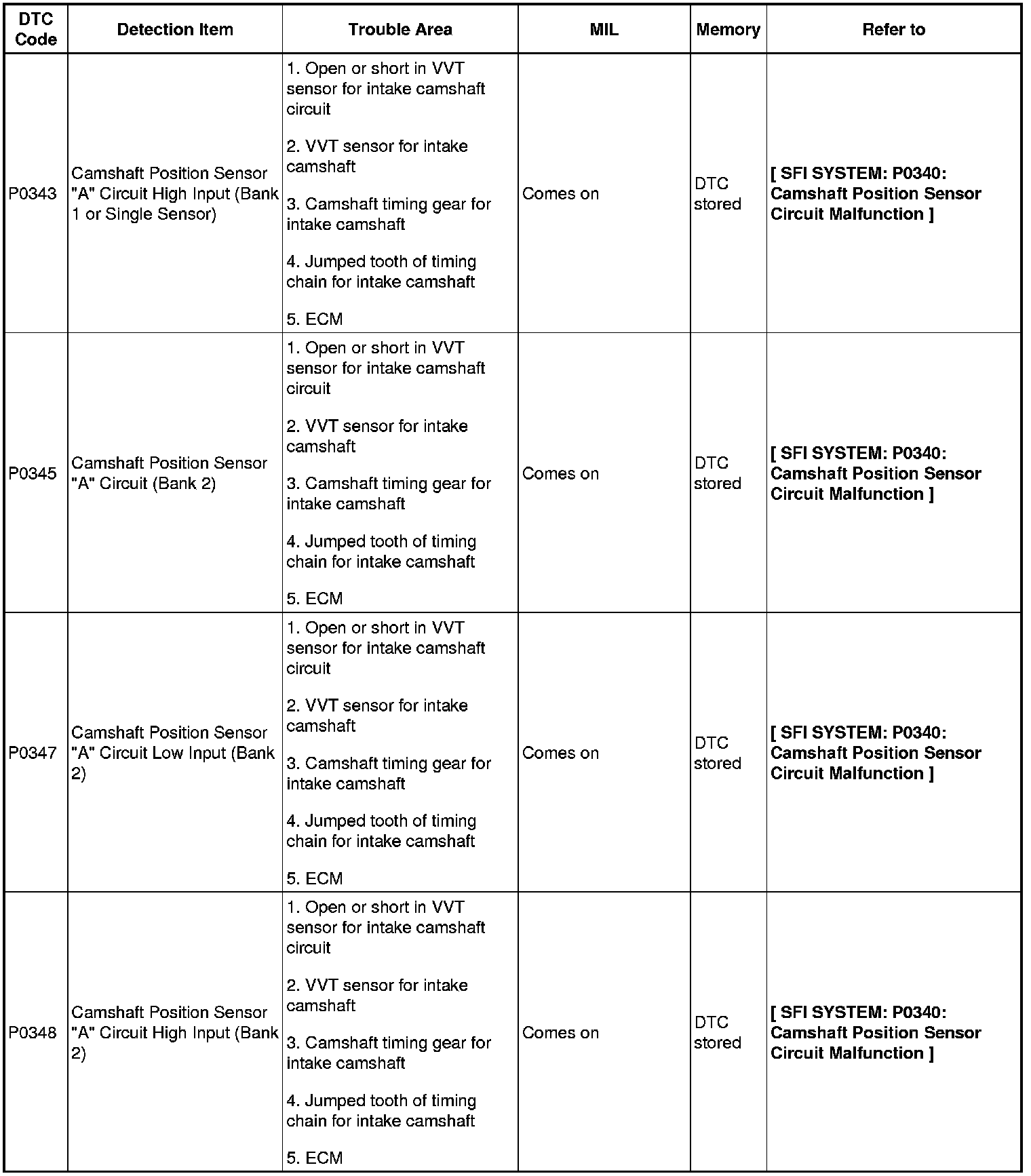

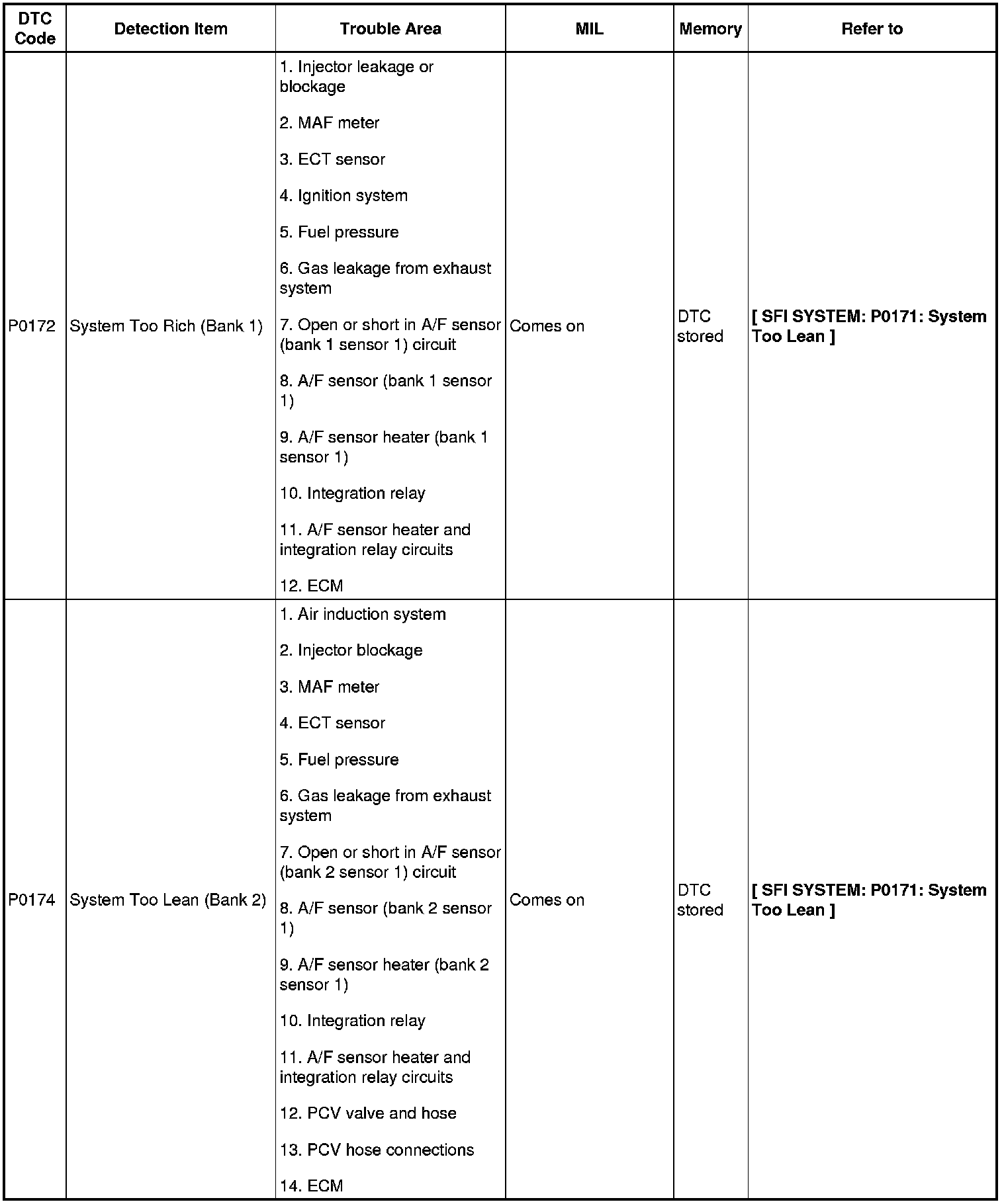

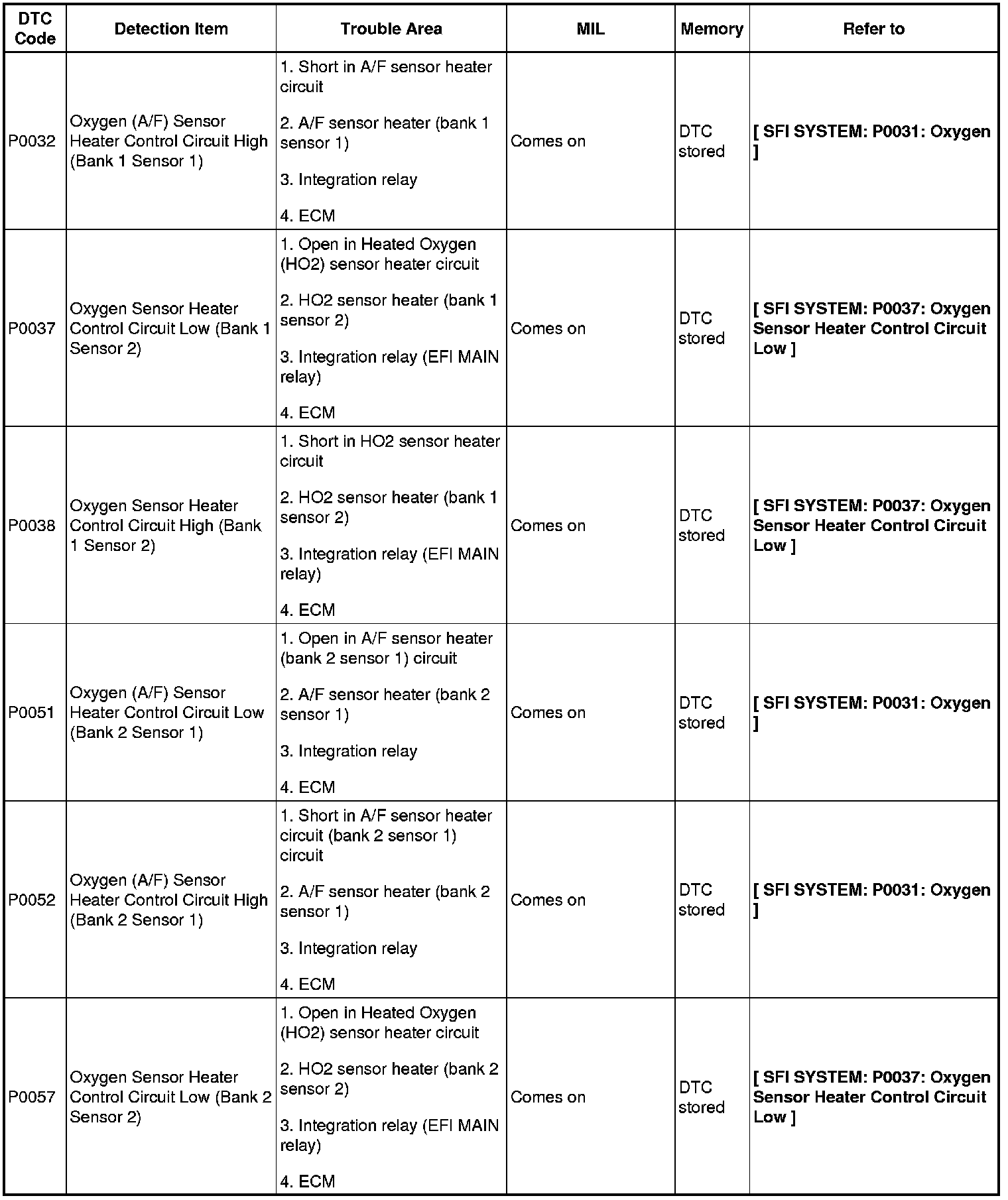

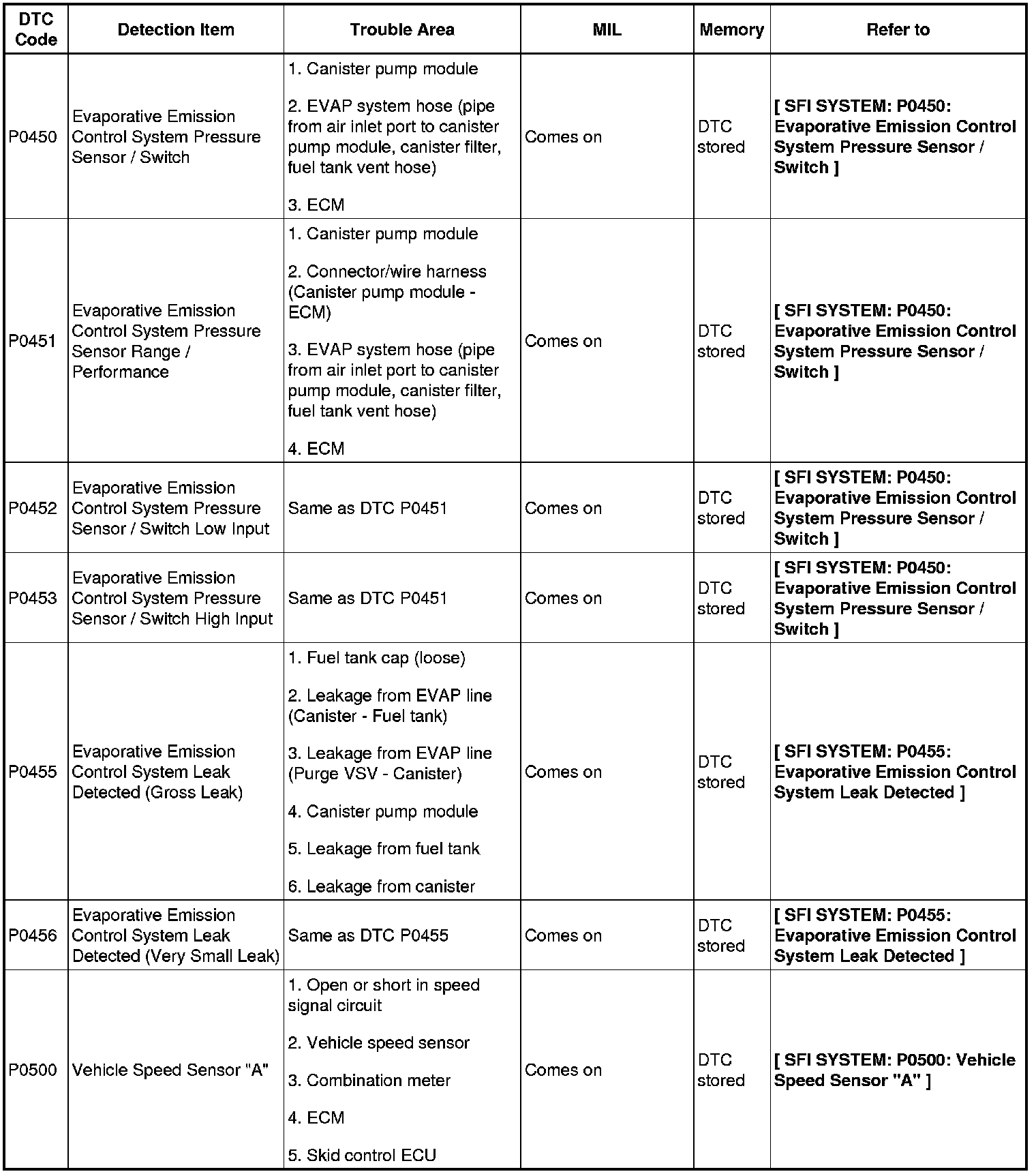

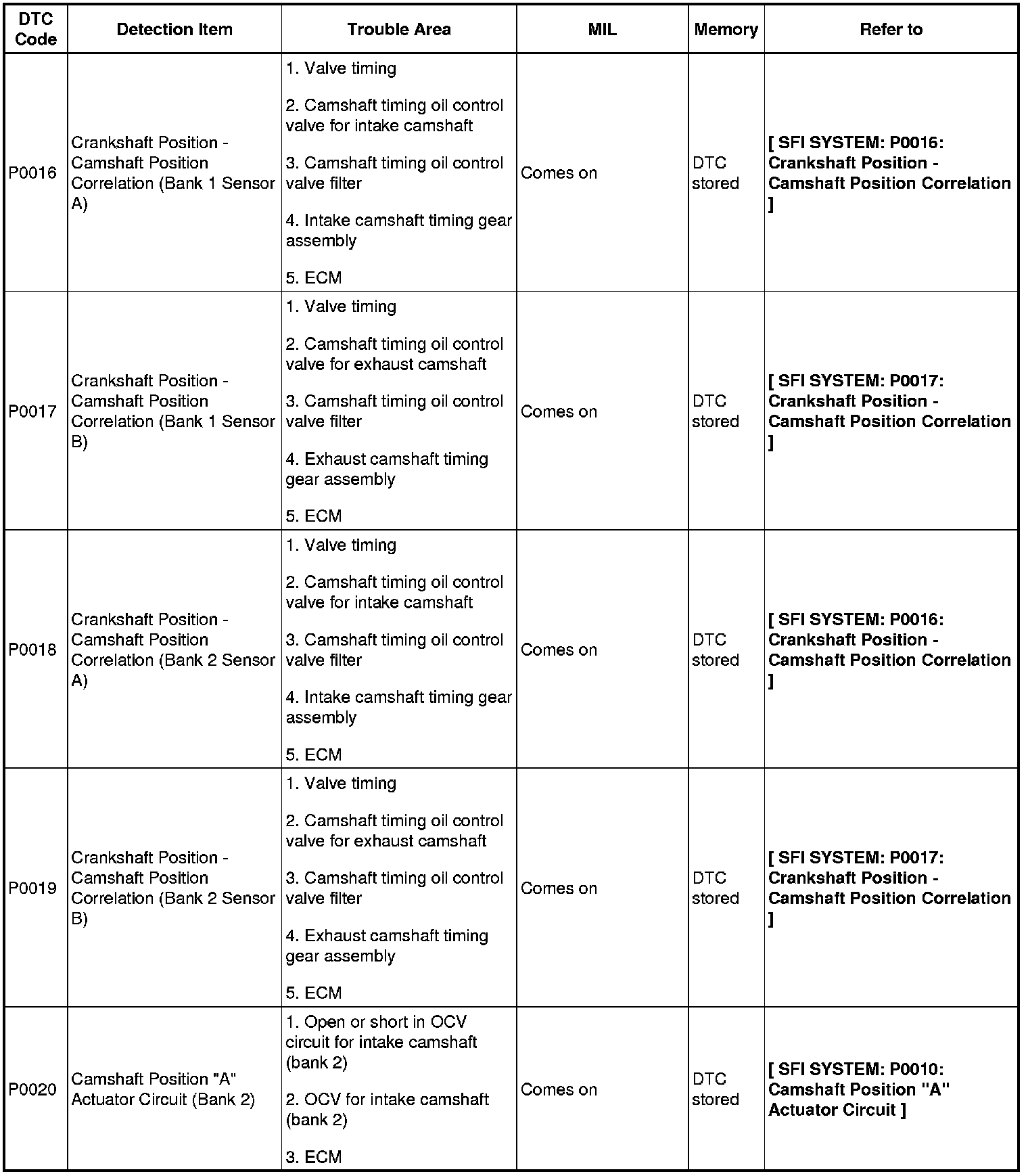

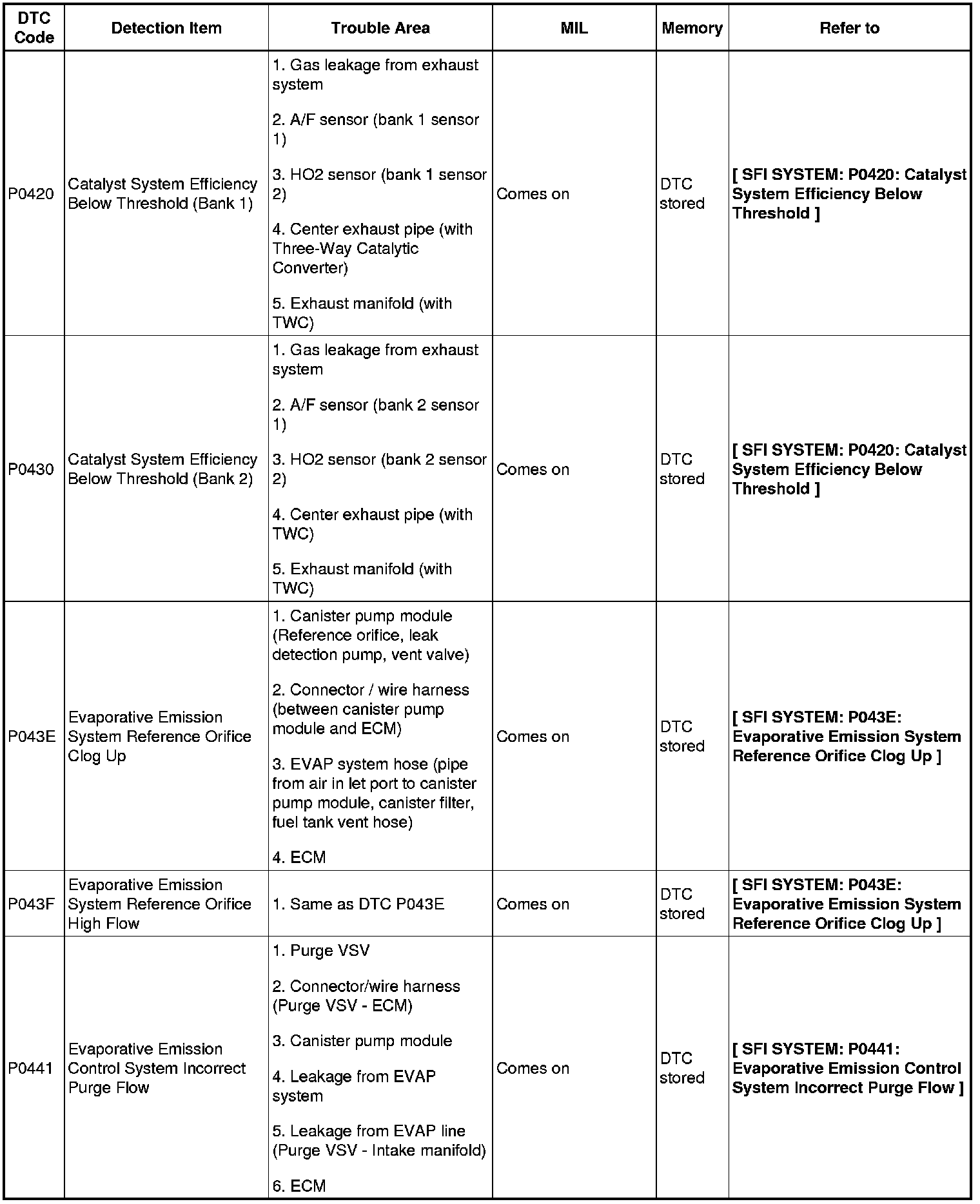

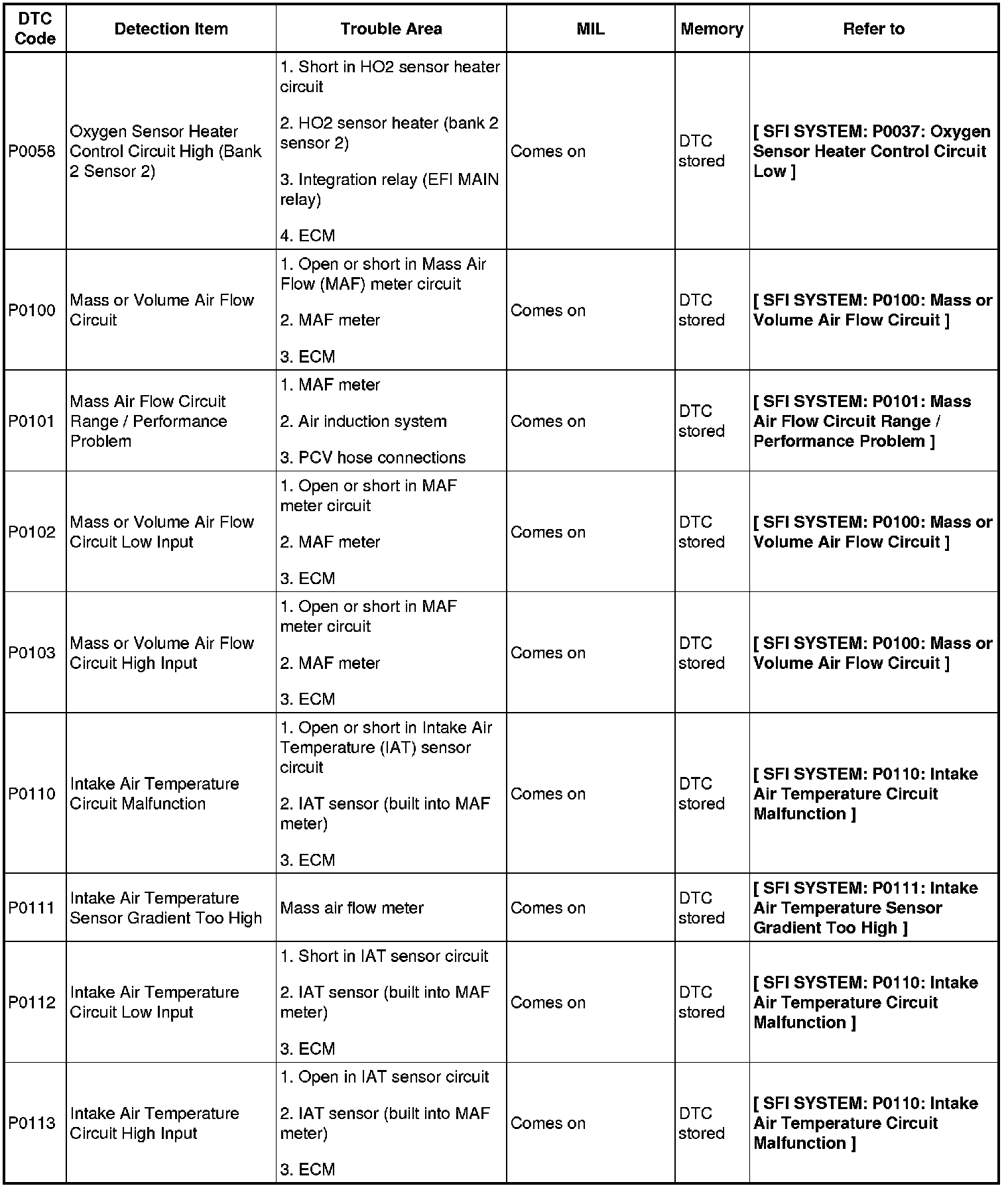

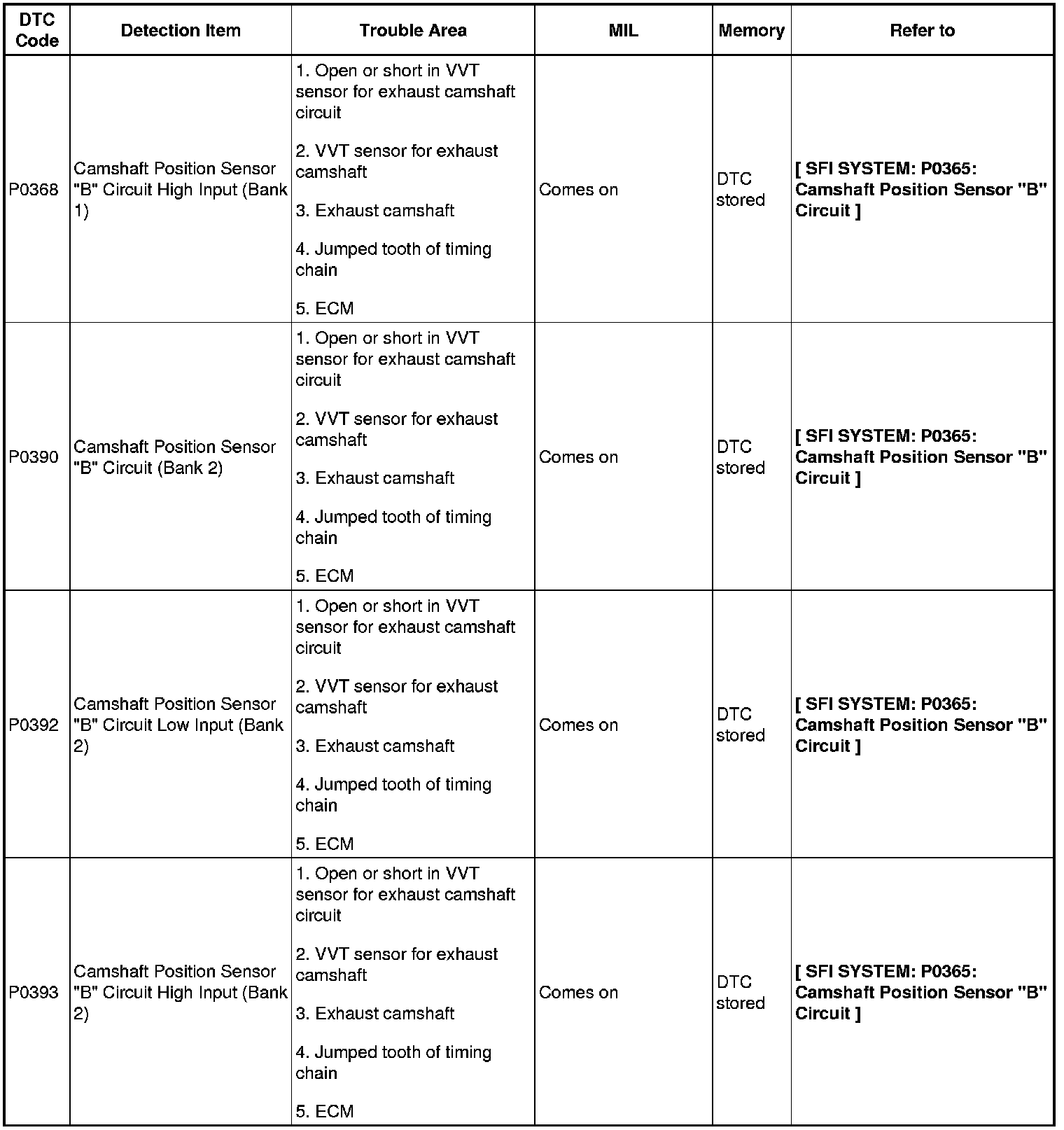

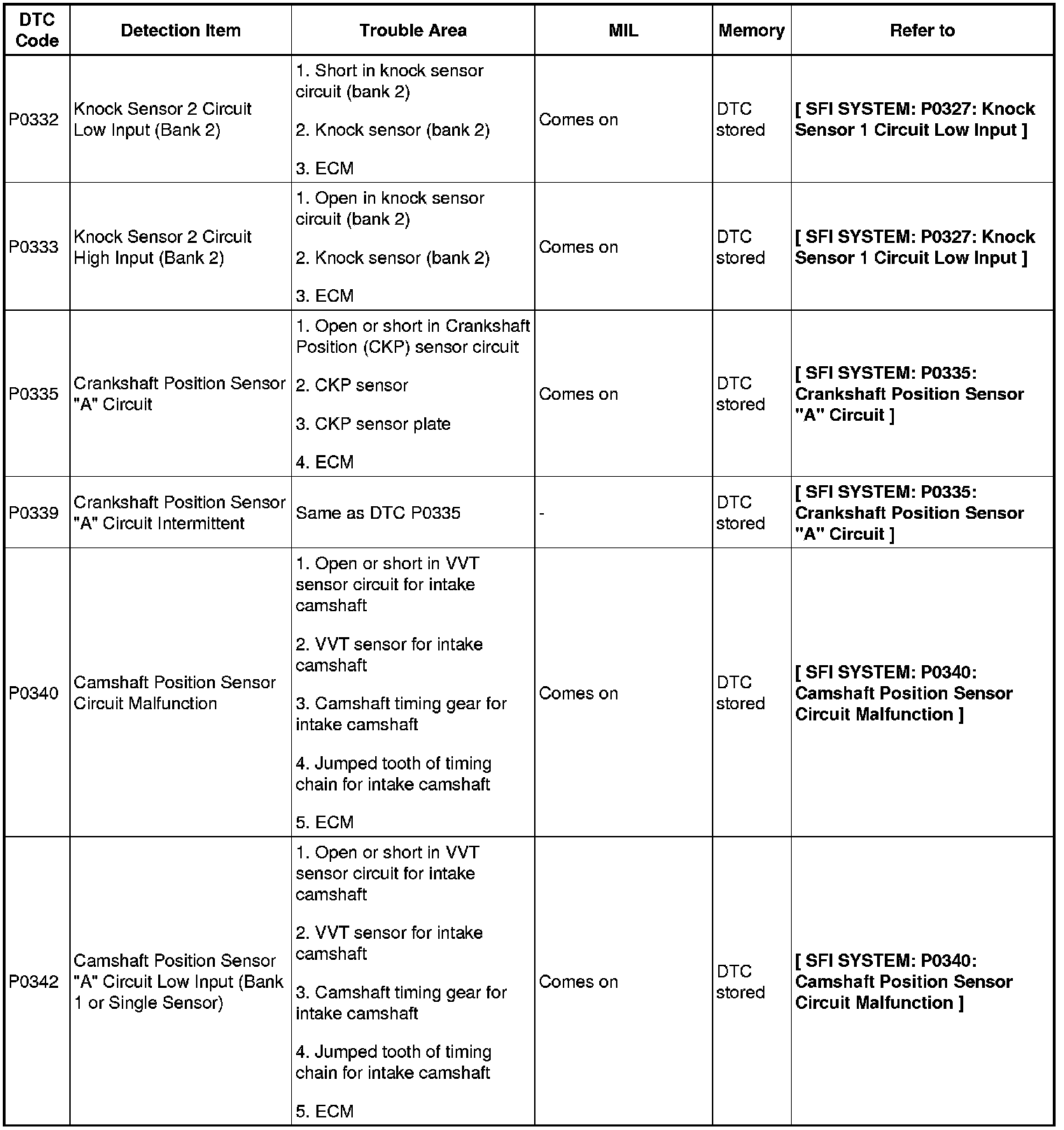

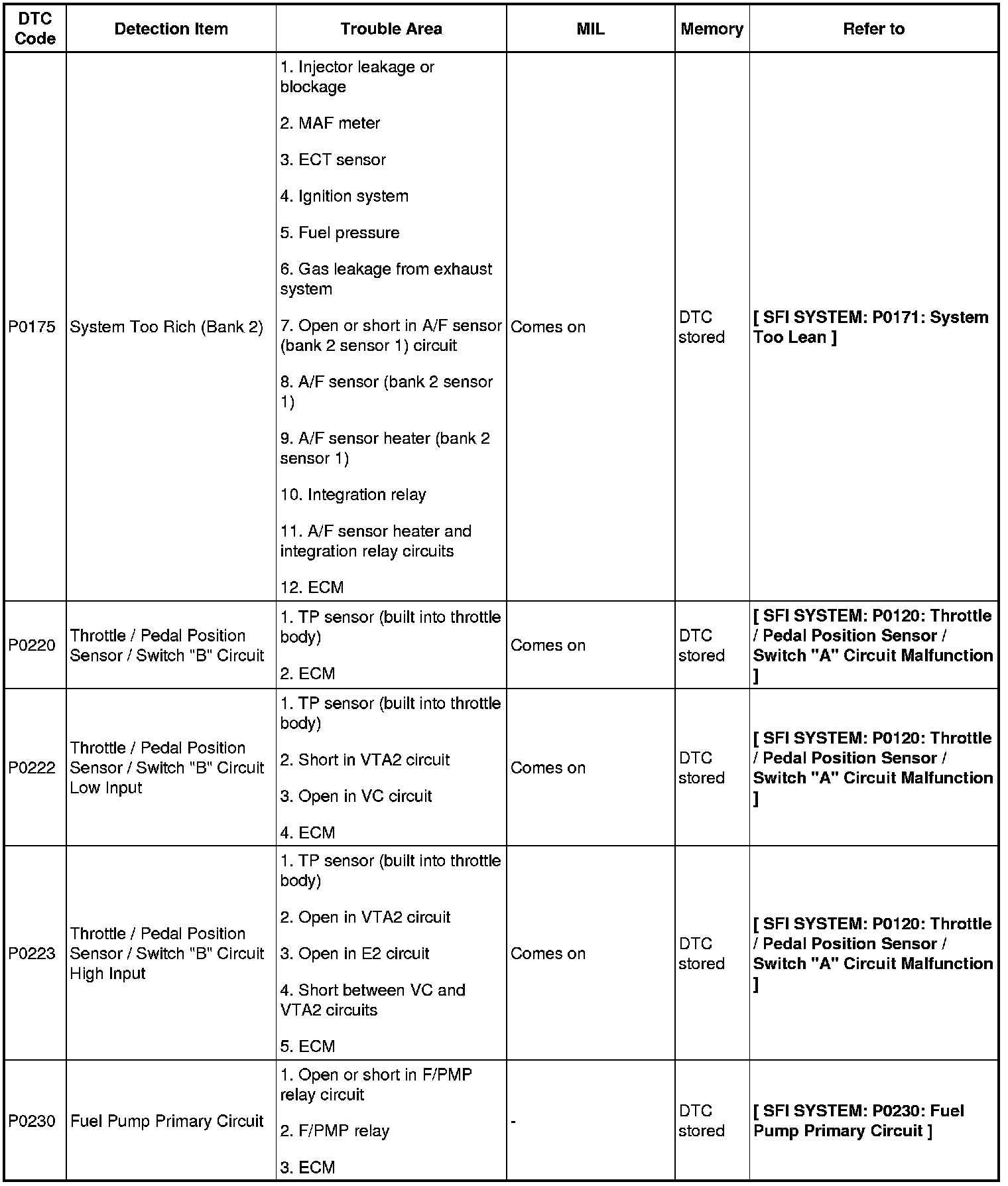

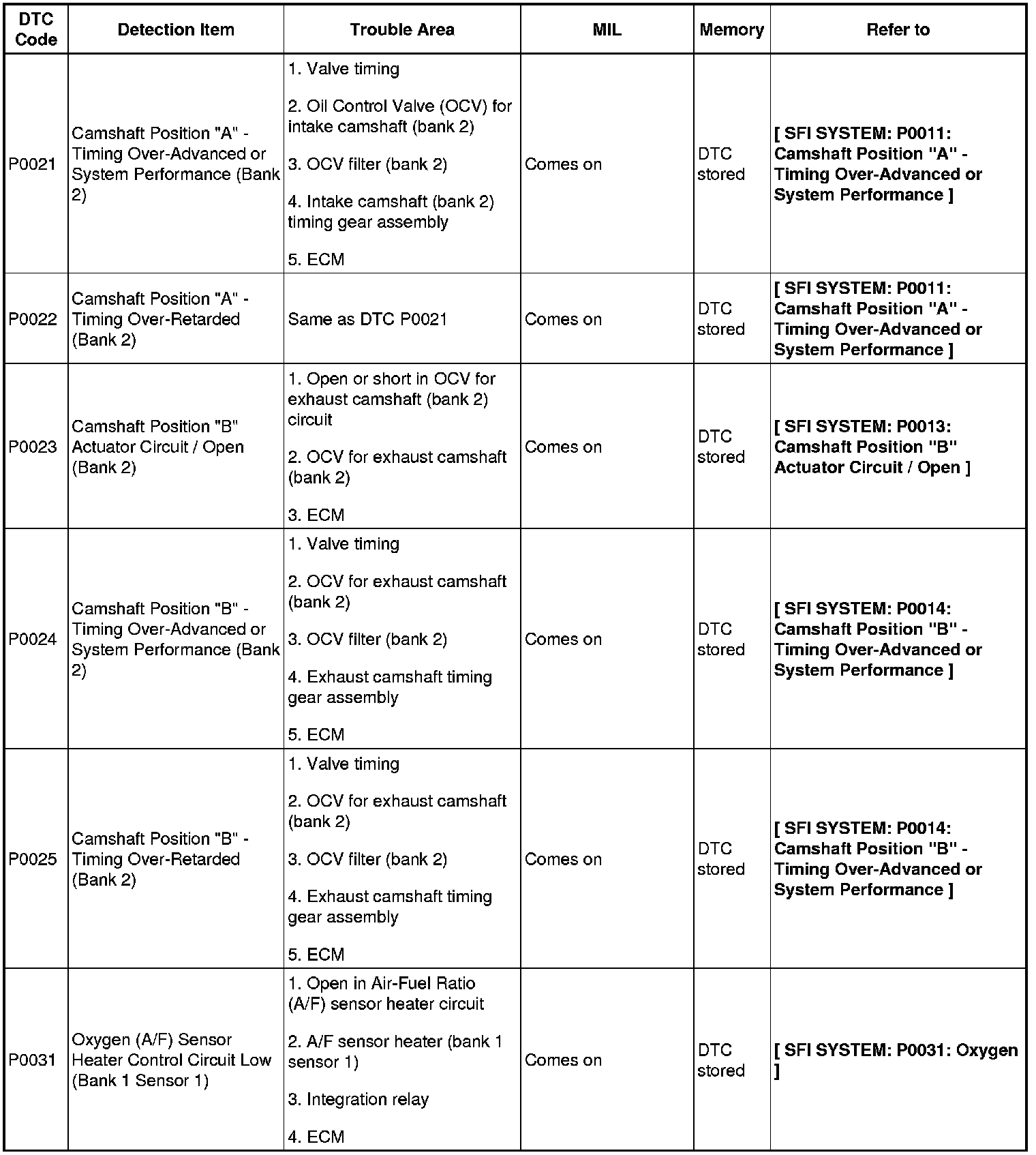

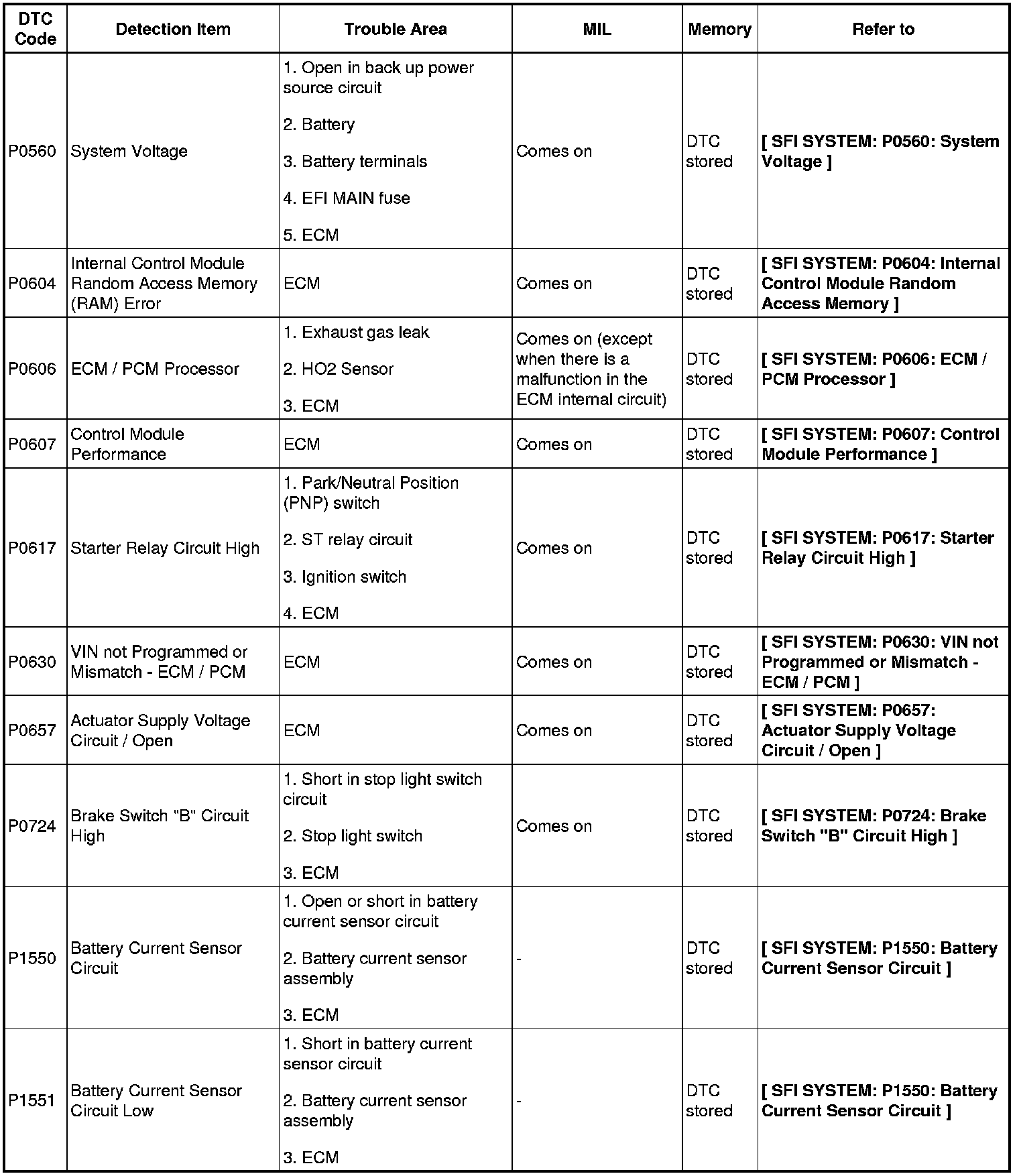

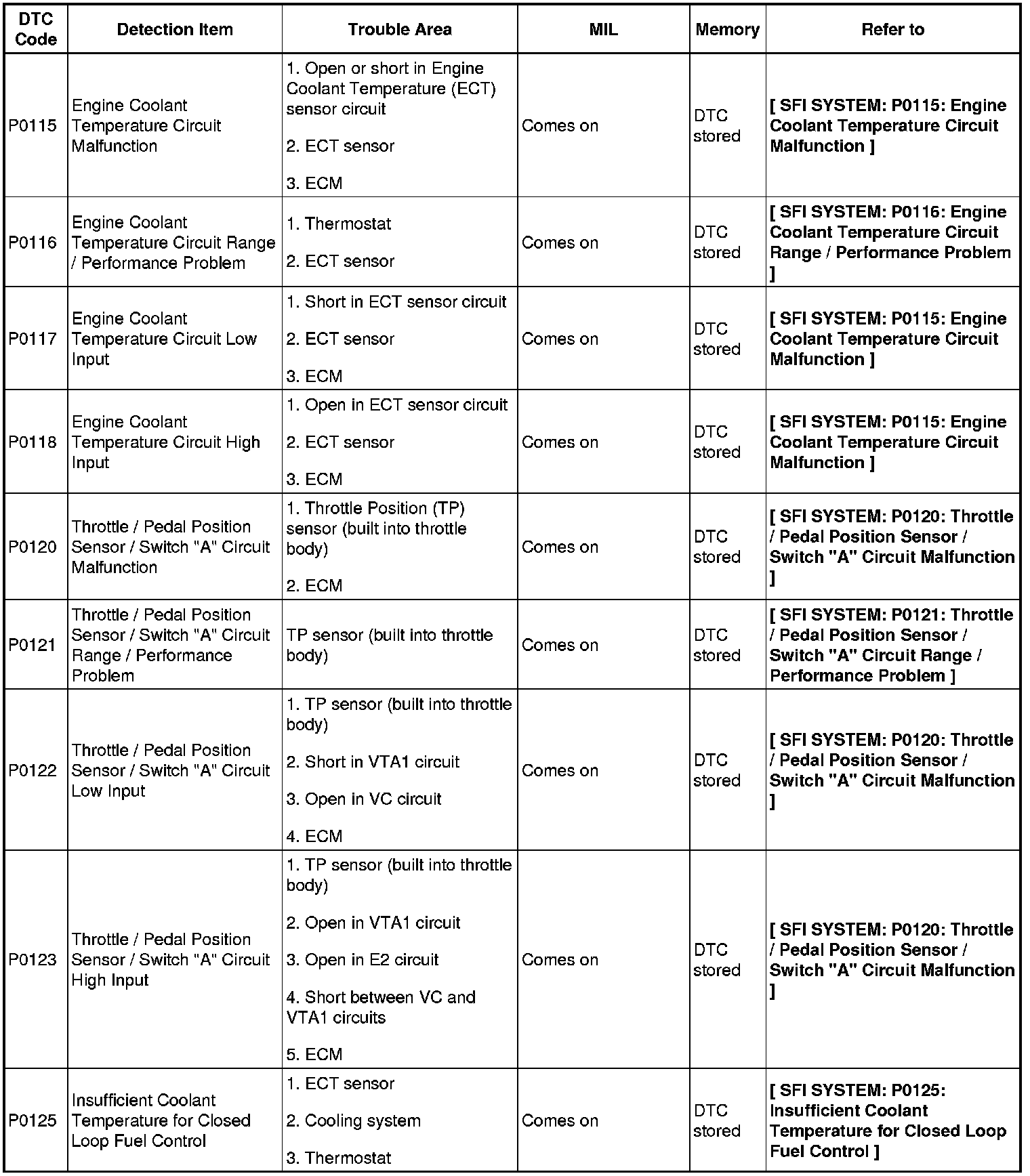

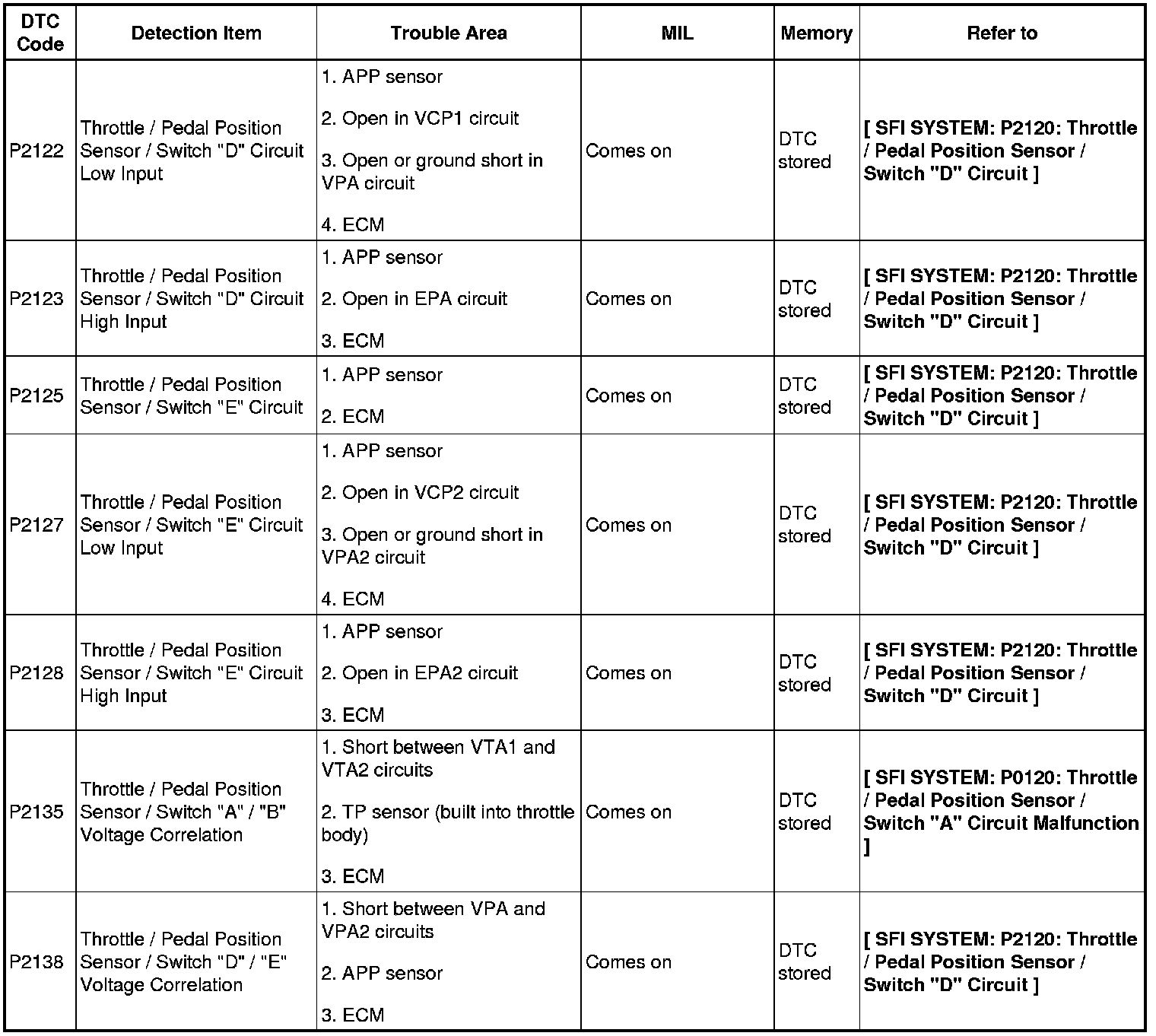

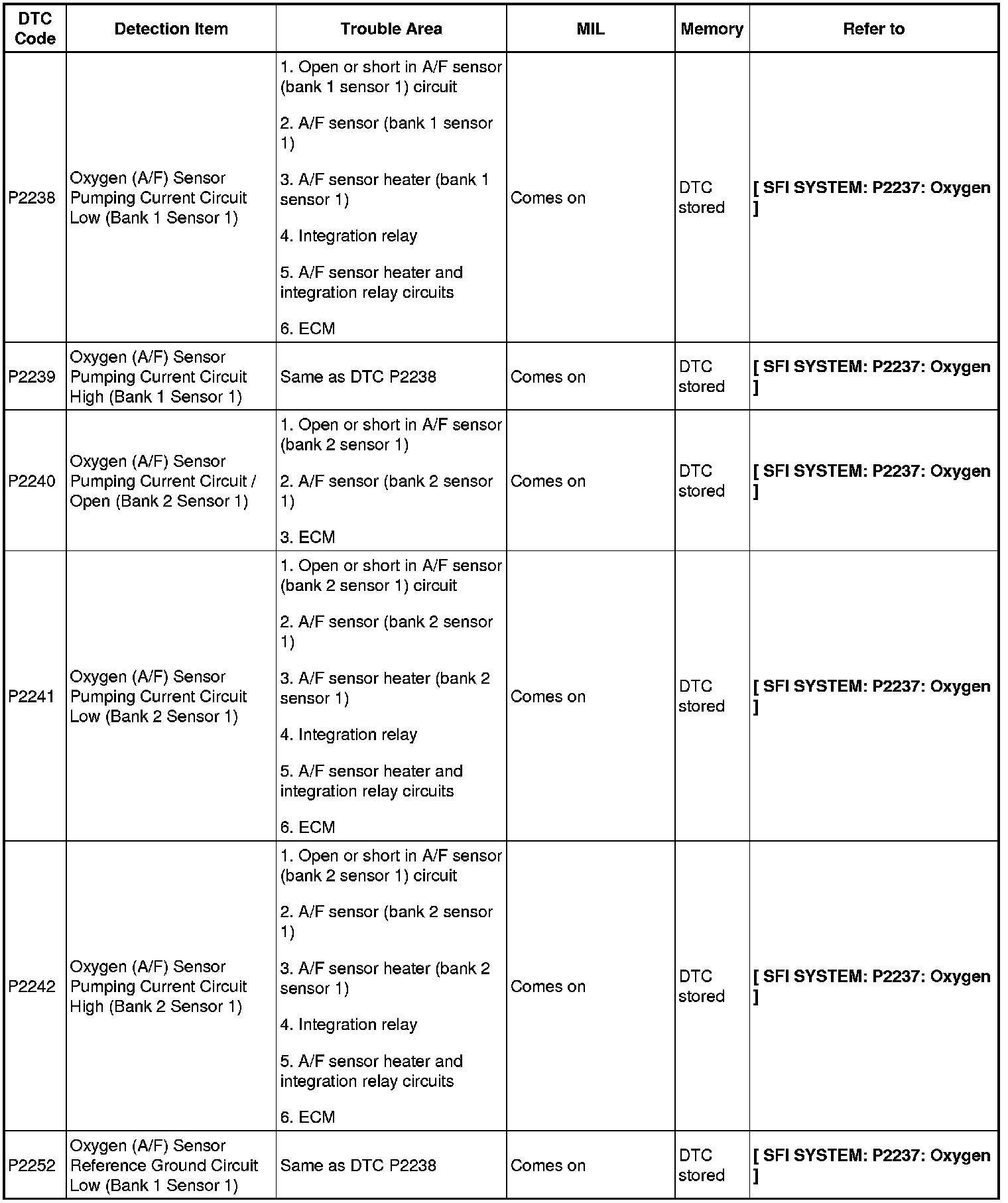

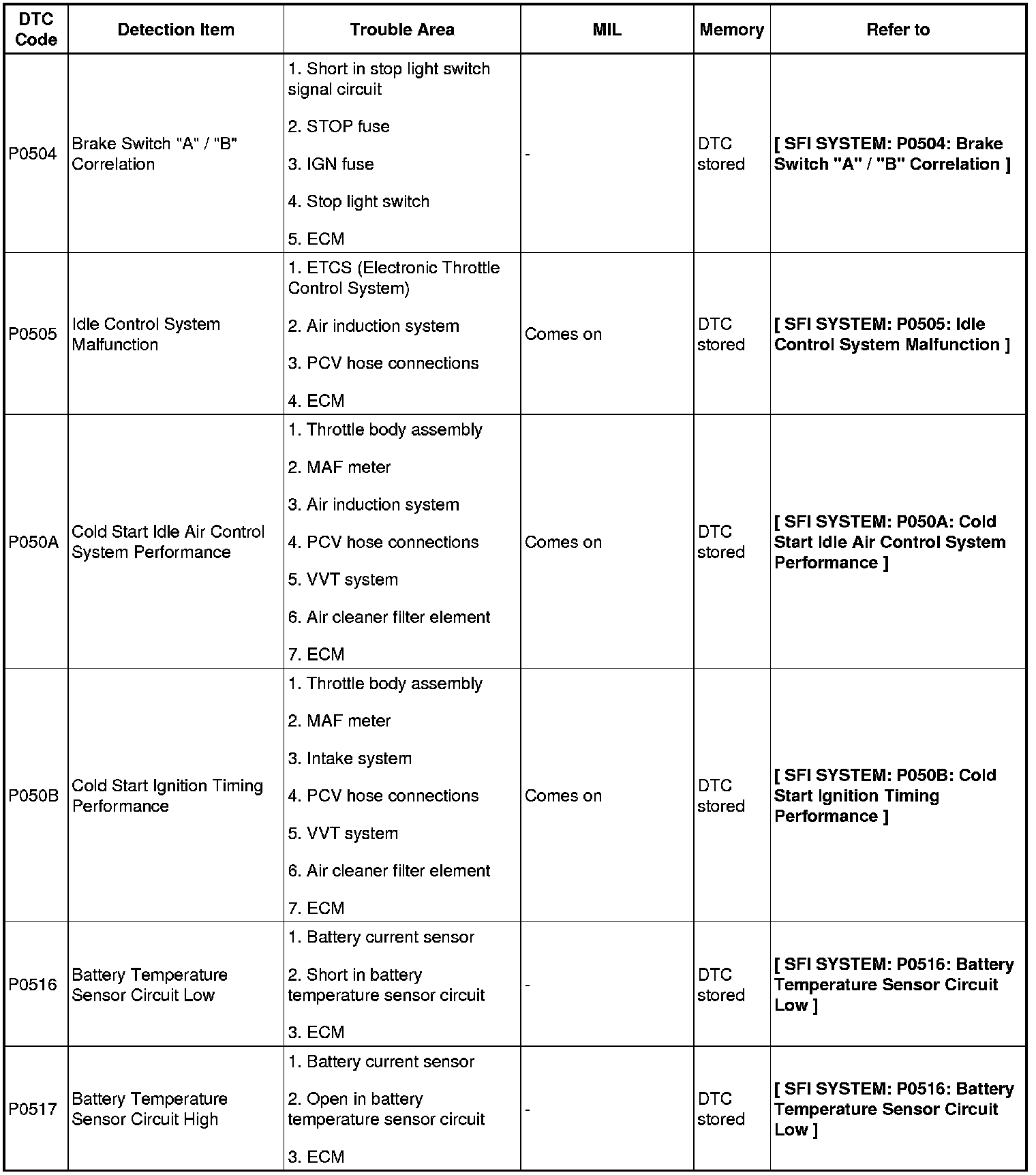

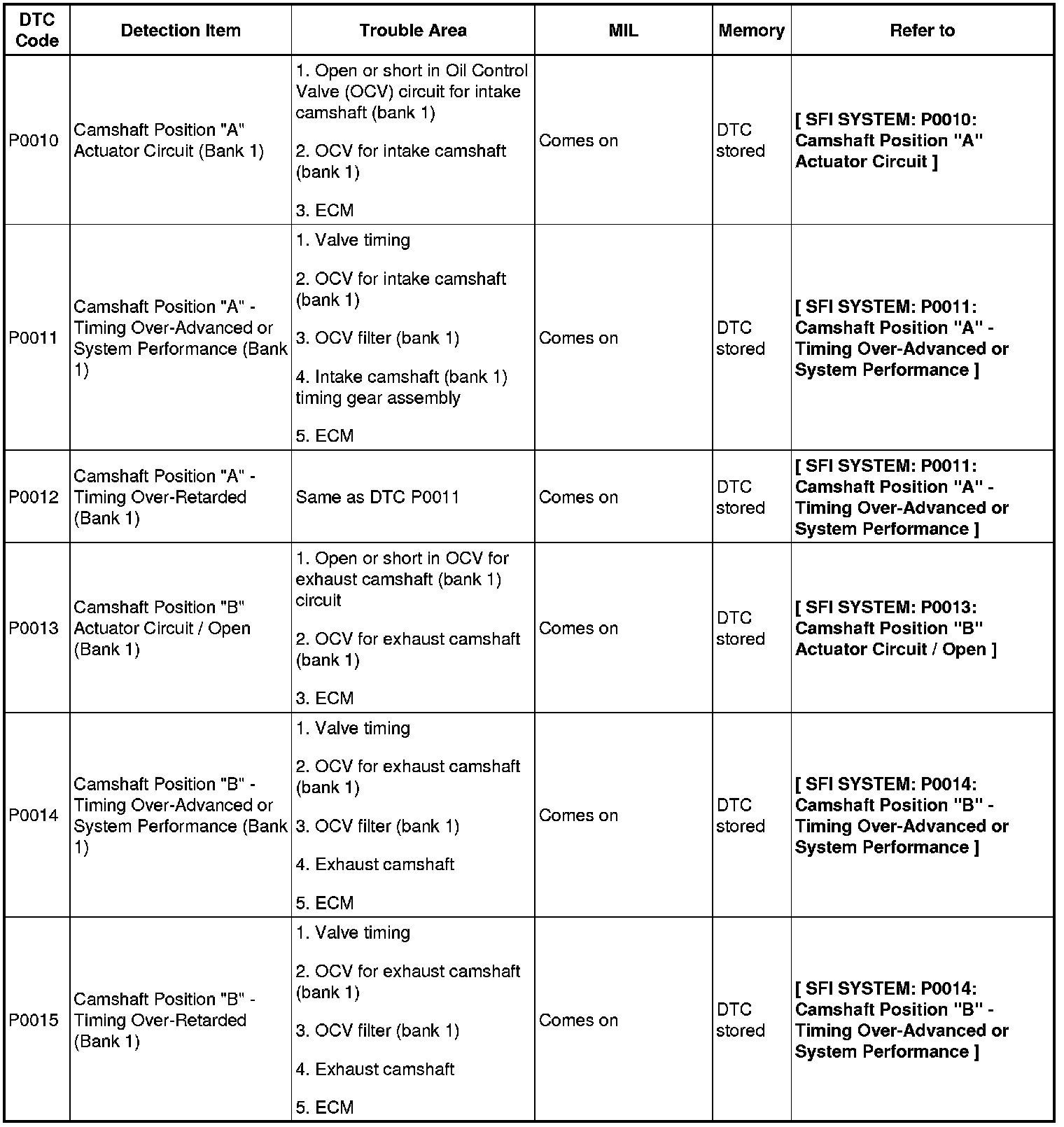

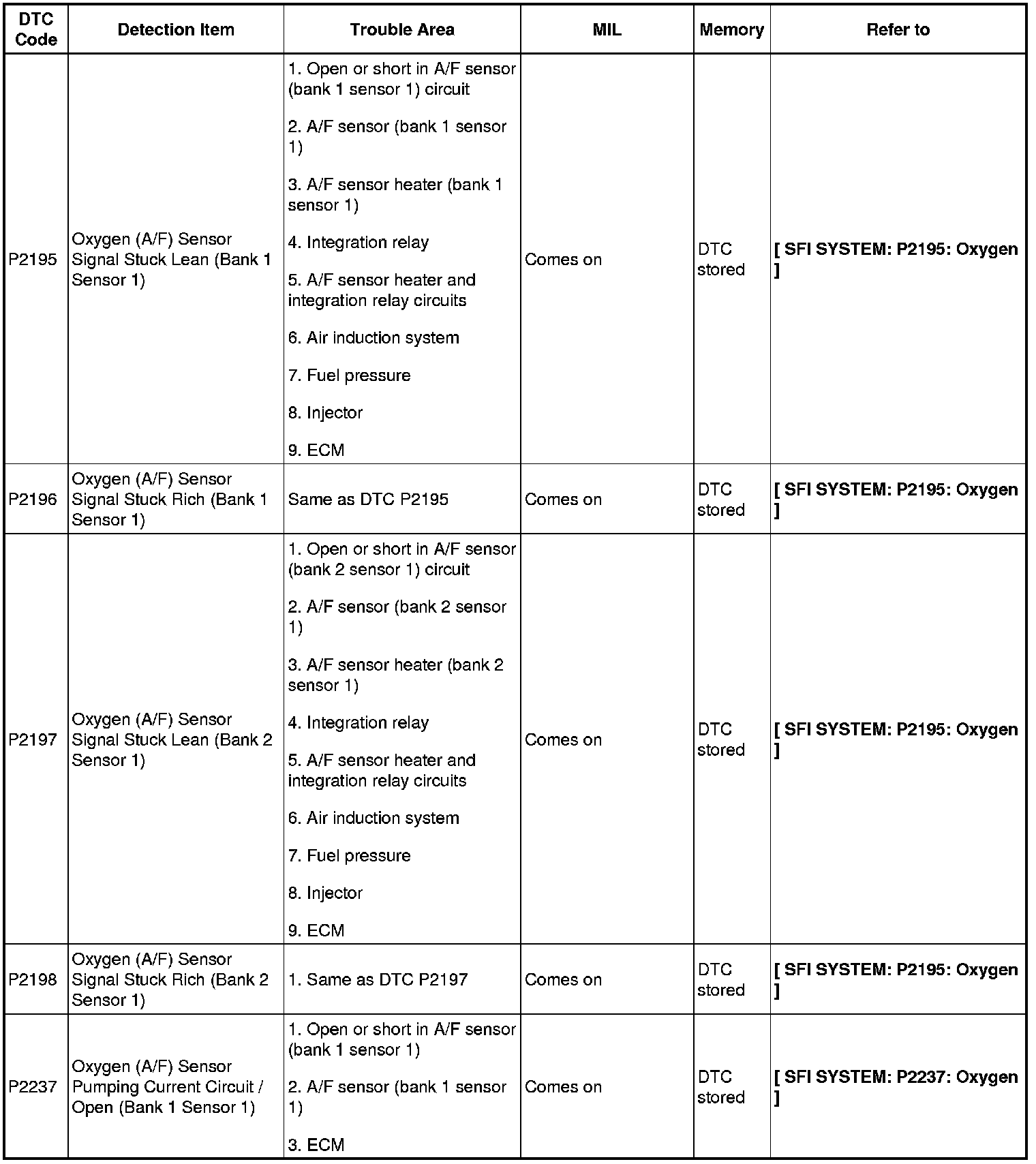

If any DTCs are displayed during a check mode DTC check, check the trouble area for the DTCs listed in the table below. For details of each DTC, refer to applicable Diagnostic Trouble Code Test.

SFI system

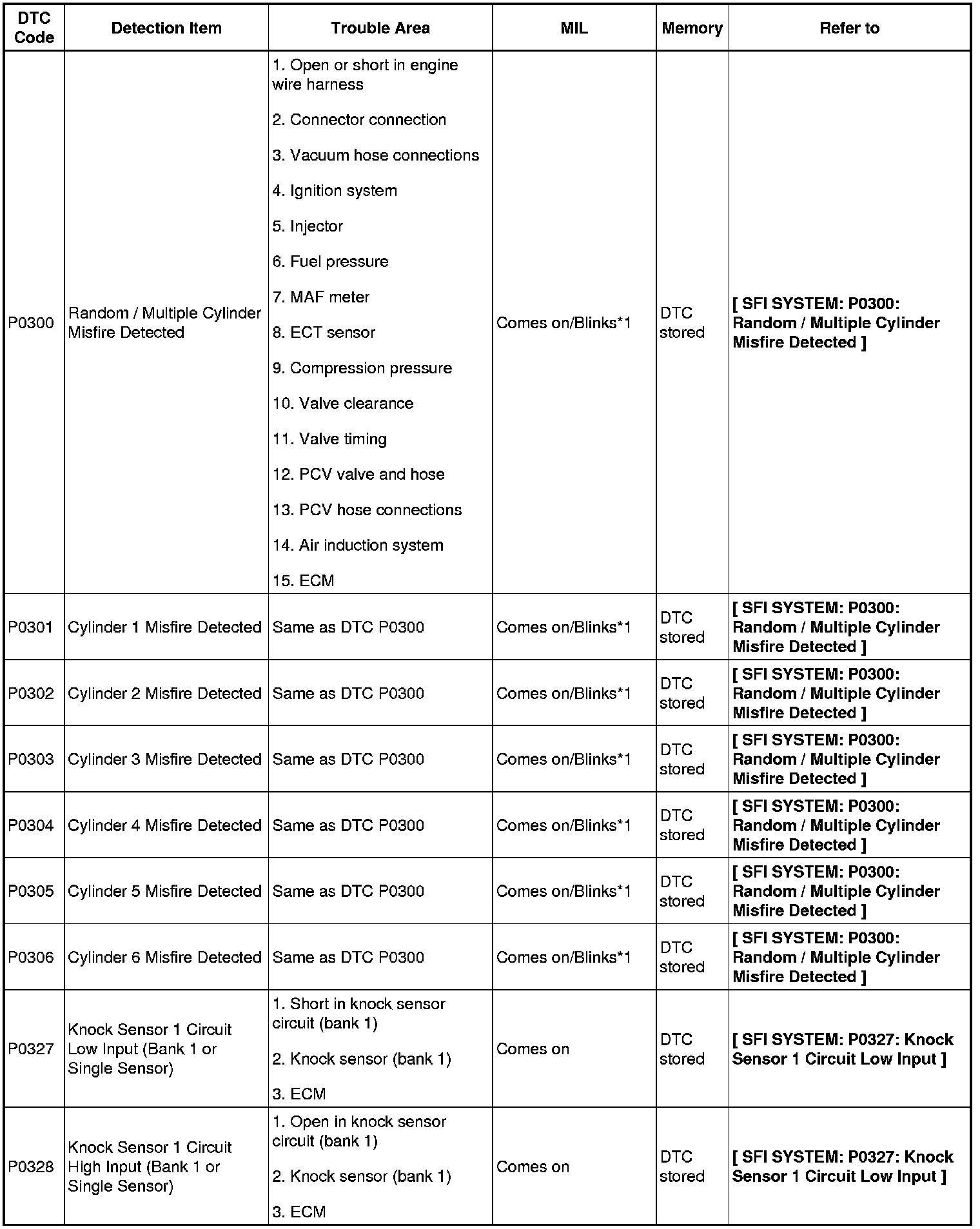

HINT: *1: MIL flashes when a catalyst damaged misfire is detected.
