BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: C1241/41: Low Battery Positive Voltage

DTC C1241/41 - Low Battery Positive Voltage

DESCRIPTION

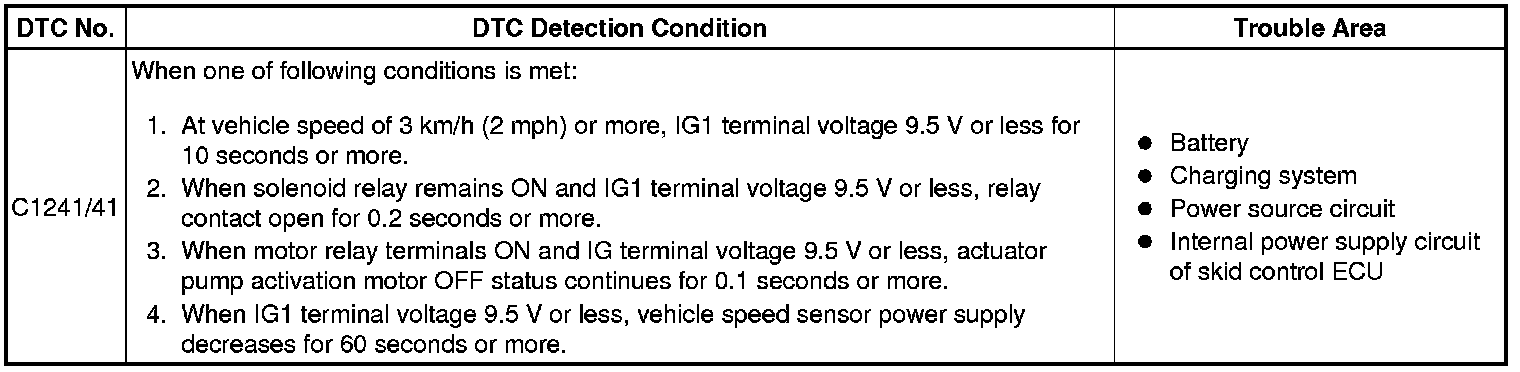

When there is an abnormality in the power supply circuit of the brake actuator (skid control ECU), the skid control ECU sets a DTC and the operation is prohibited by the fail-safe function. This DTC is set when the voltage supplied to terminal IG1 is outside the DTC detection threshold, due to abnormalities of the battery, power source circuits or charging circuits such as the alternator circuit.
The fail-safe function is canceled when the voltage to terminal IG1 returns to normal.

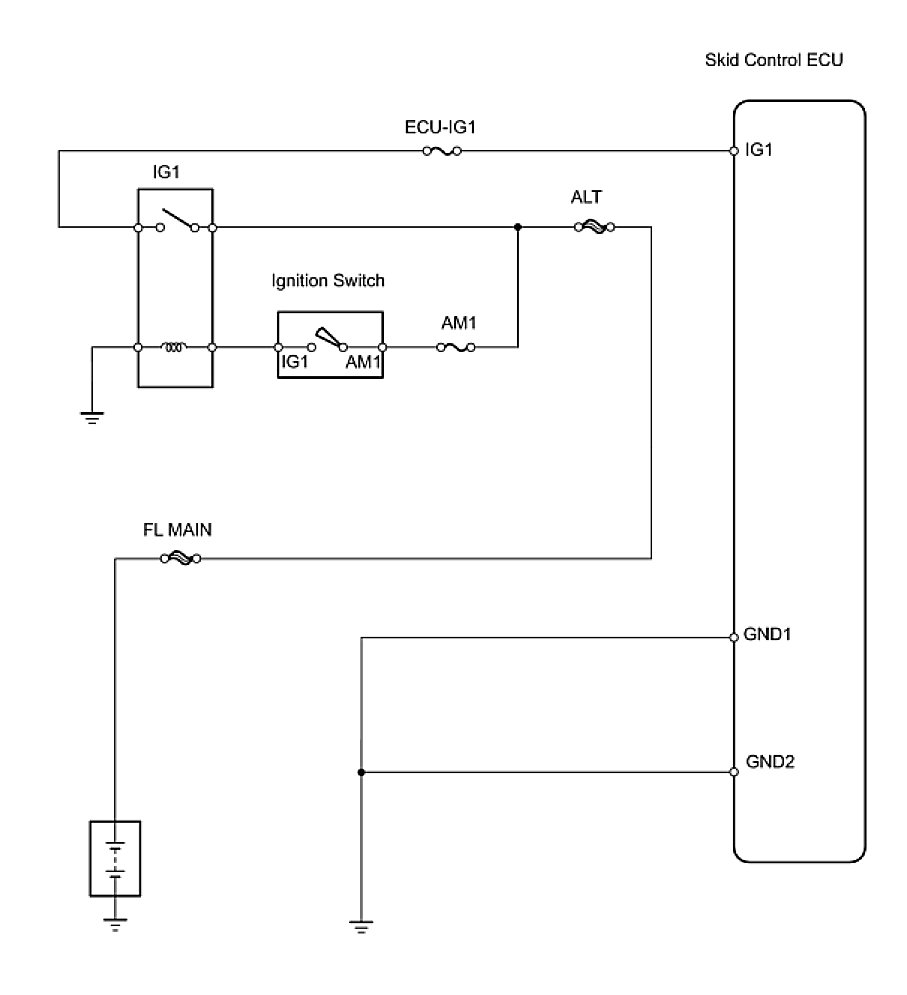

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT FUSE (ECU-IG1)
(a) Remove the ECU-IG1 fuse from the instrument panel junction block.
(b) Measure the resistance of the fuse.
Standard resistance:
Below 1 Ohms
NG -- REPLACE FUSE
OK -- Continue to next step.
2. INSPECT BATTERY
(a) Check the battery voltage.
Standard voltage:
11 to 14 V
NG -- CHECK CHARGING SYSTEM
OK -- Continue to next step.
3. CHECK WIRE HARNESS (SKID CONTROL ECU - BATTERY)





(a) Disconnect the A19 ECU connector.

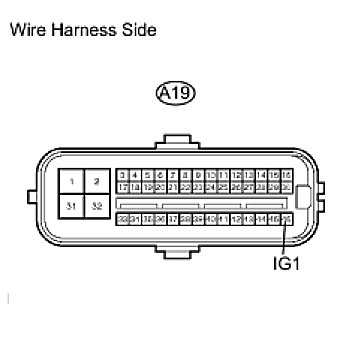

(b) Measure the voltage of the wire harness side connector.
Standard voltage:






NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR
OK -- Continue to next step.

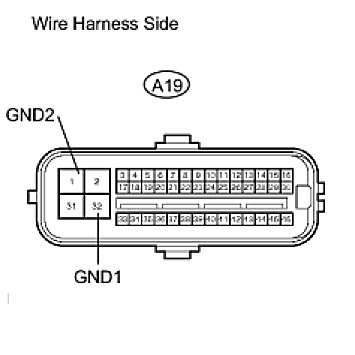

4. CHECK WIRE HARNESS (SKID CONTROL ECU - BODY GROUND)





(a) Disconnect the A19 ECU connector.
(b) Measure the resistance of the wire harness side connector.

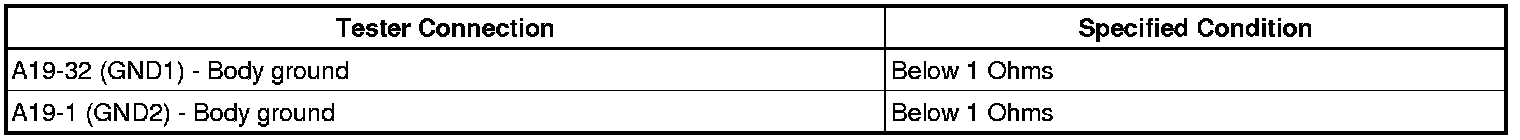

Standard resistance:






NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR
OK -- Continue to next step.
5. RECONFIRM DTC
(a) Clear the DTC .
(b) Drive the vehicle at 3 km/h (2 mph) or more for several seconds.
(c) Check if the same DTC is output .

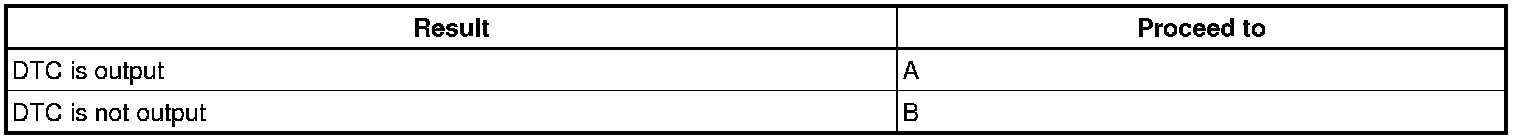

Result





B -- END
A -- REPLACE ABS AND TRACTION ACTUATOR ASSEMBLY
