Toyota Truck
>>
2008
>>
RAV4 4WD L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Transfer Case
>>
Service and Repair
>>
Removal and Replacement
>>
Components
Components

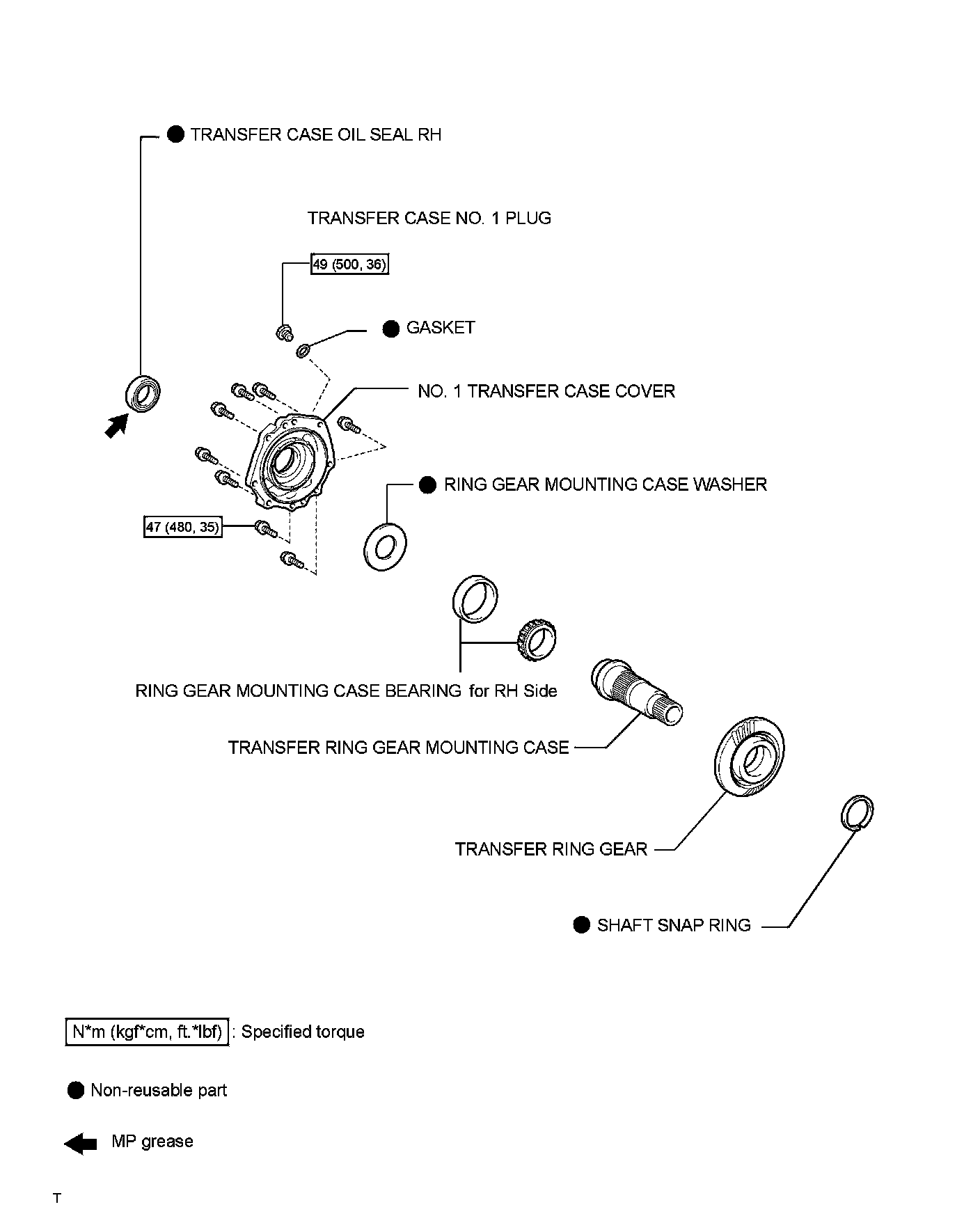

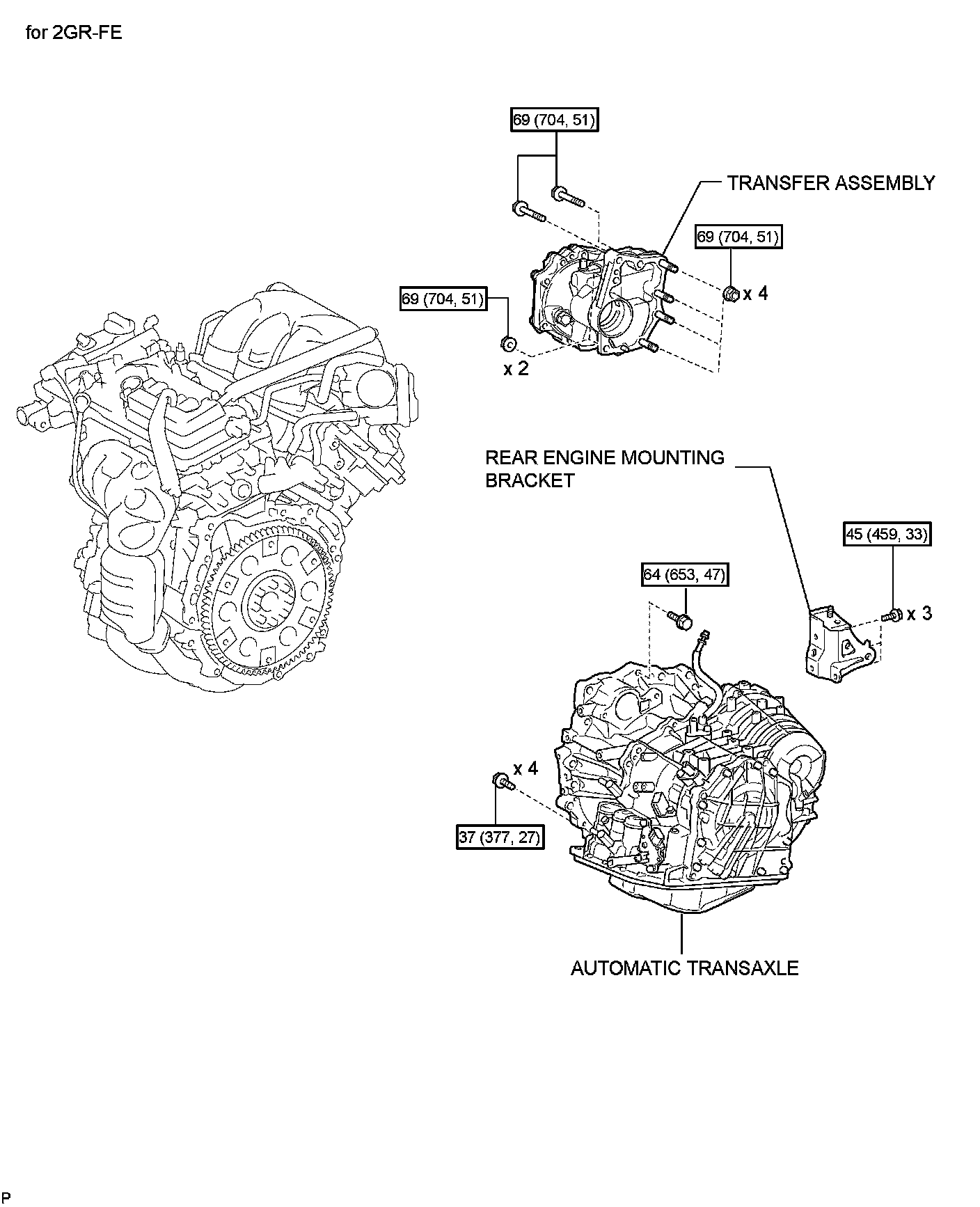

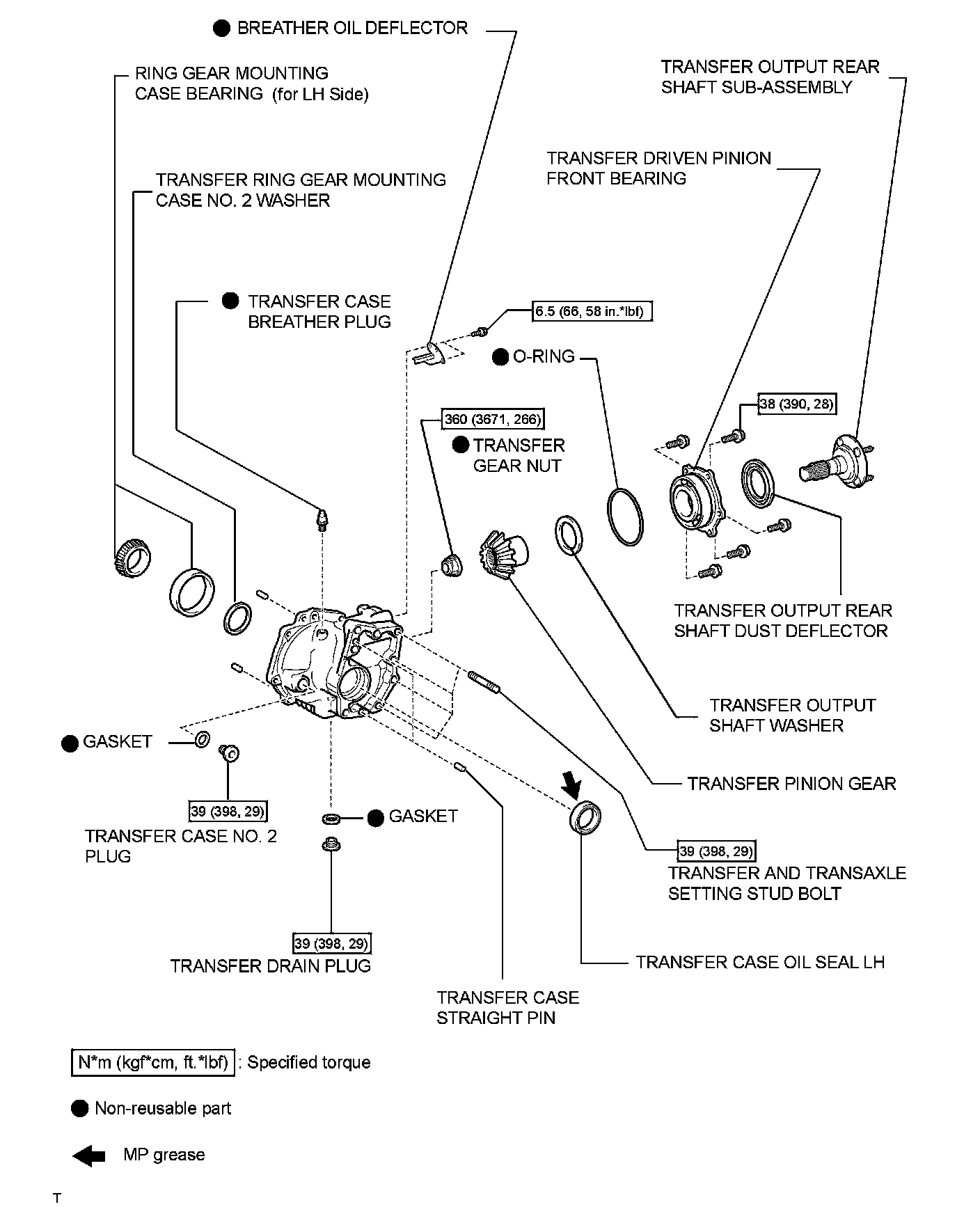

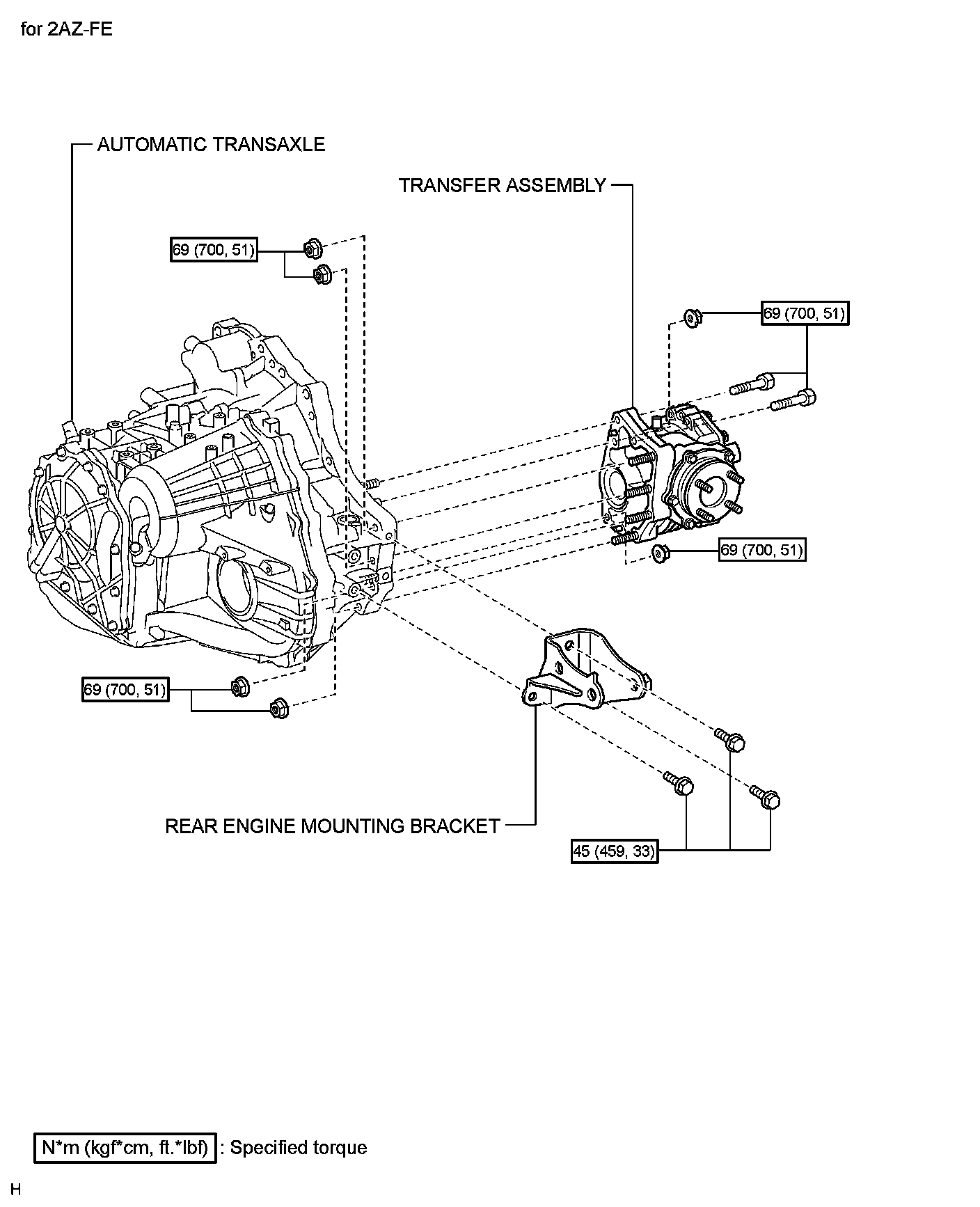

GF1A TRANSFER: TRANSFER ASSEMBLY: COMPONENTS
COMPONENTS
ILLUSTRATION
