Reassembly

U140F AUTOMATIC TRANSAXLE: VALVE BODY: REASSEMBLY

REASSEMBLY

1. INSTALL MANUAL VALVE
(a) Install the manual valve to the valve body.






2. INSTALL SHIFT SOLENOID VALVE S4
(a) Install the shift solenoid valve S4 to the valve body with the bolt.
Torque: 11 Nm (112 kgf-cm, 9 ft-lbf)






3. INSTALL SHIFT SOLENOID VALVE SL2

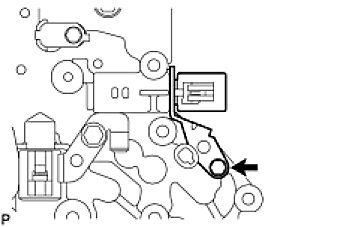

(a) Install the shift solenoid valve SL2 to the valve body with the bolt and plate.
Torque: 11 Nm (112 kgf-cm, 8 ft-lbf)






4. INSTALL SHIFT SOLENOID VALVE DSL

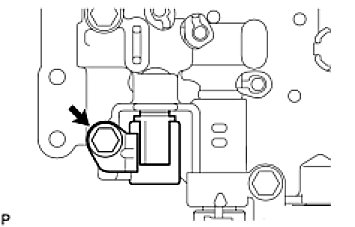

(a) Install the shift solenoid valve DSL to the valve body with the bolt.
Torque: 11 Nm (112 kgf-cm, 8 ft-lbf)






5. INSTALL SHIFT SOLENOID VALVE SL1

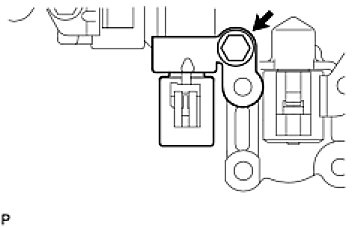

(a) Install the shift solenoid valve SL1 to the valve body with the bolt and plate.
Torque: 6.6 Nm (67 kgf-cm, 58 in-lbf)






6. INSTALL SHIFT SOLENOID VALVE SLT

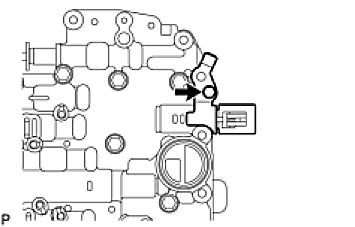

(a) Install the shift solenoid valve SLT to the valve body with the bolt and plate.
Torque: 6.6 Nm (67 kgf-cm, 58 in-lbf)
