Engine Room Main Wire

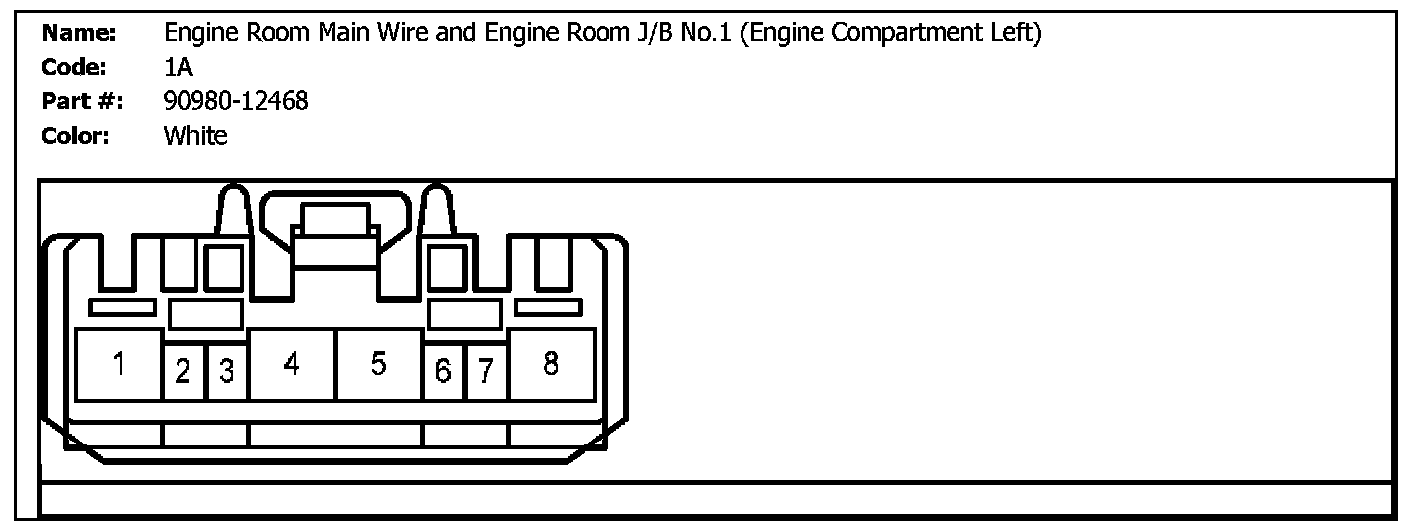

1A (Engine Room Main Wire And Engine Room J/B No.1 (Engine Compartment Left)):

1B (Engine Room Main Wire And Engine Room J/B No.1 (Engine Compartment Left)):

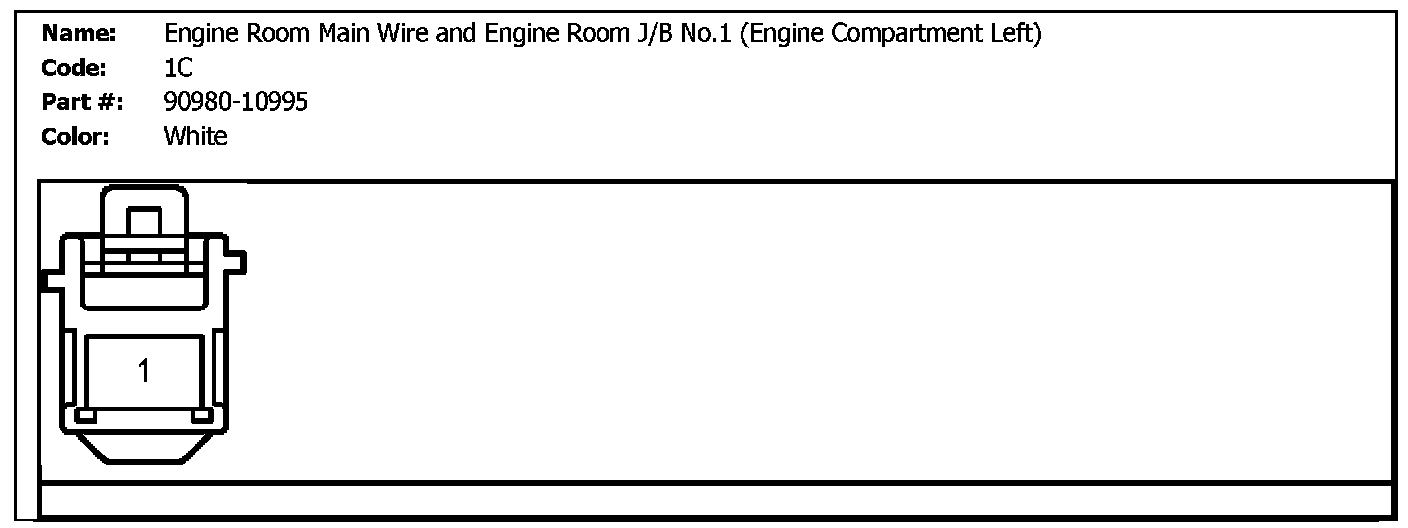

1C (Engine Room Main Wire And Engine Room J/B No.1 (Engine Compartment Left)):

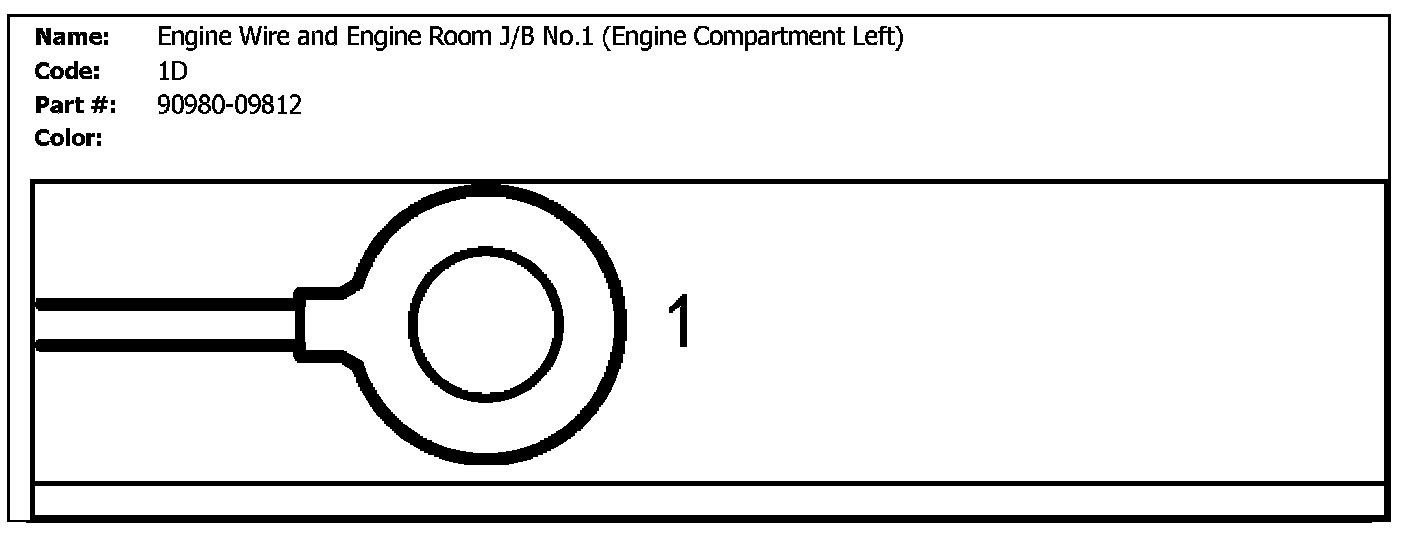

1D (Engine Wire And Engine Room J/B No.1 (Engine Compartment Left)):

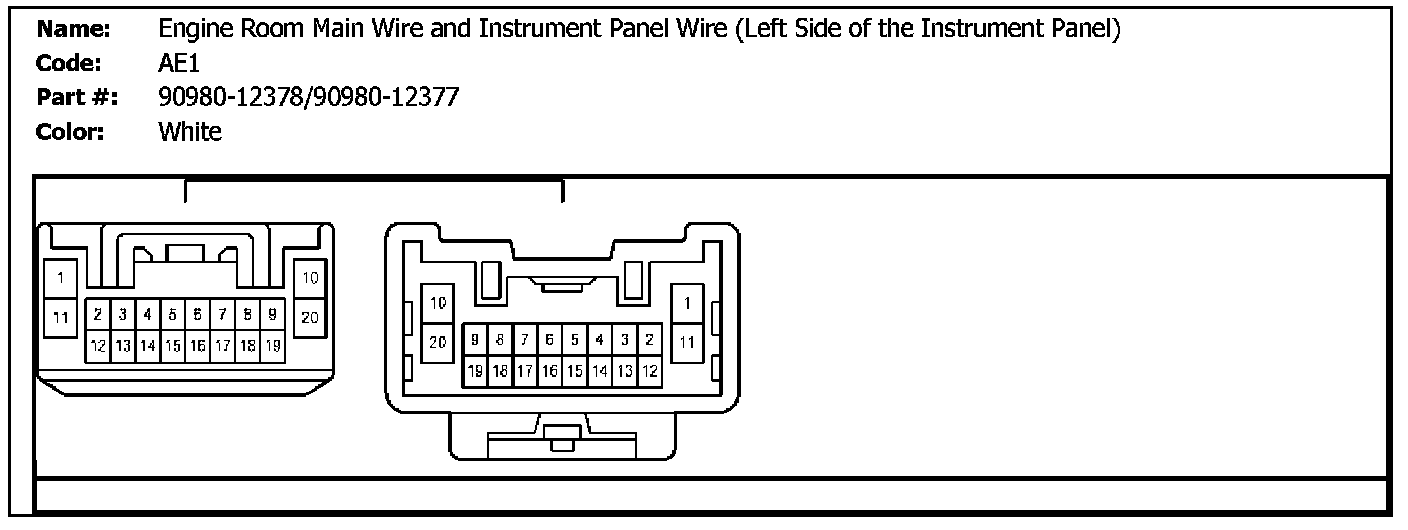

AE1 (Engine Room Main Wire And Instrument Panel Wire (Left Side Of The Instrument Panel)):

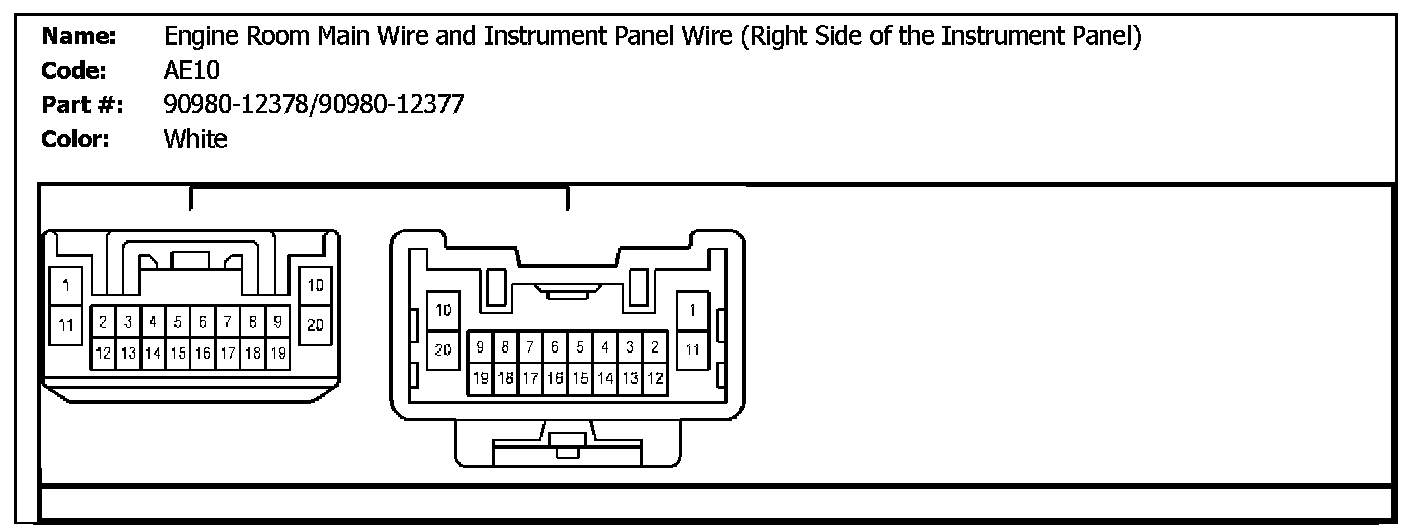

AE10 (Engine Room Main Wire And Instrument Panel Wire (Right Side Of The Instrument Panel)):

AE2 (Engine Room Main Wire And Instrument Panel Wire (Left Side Of The Instrument Panel)):

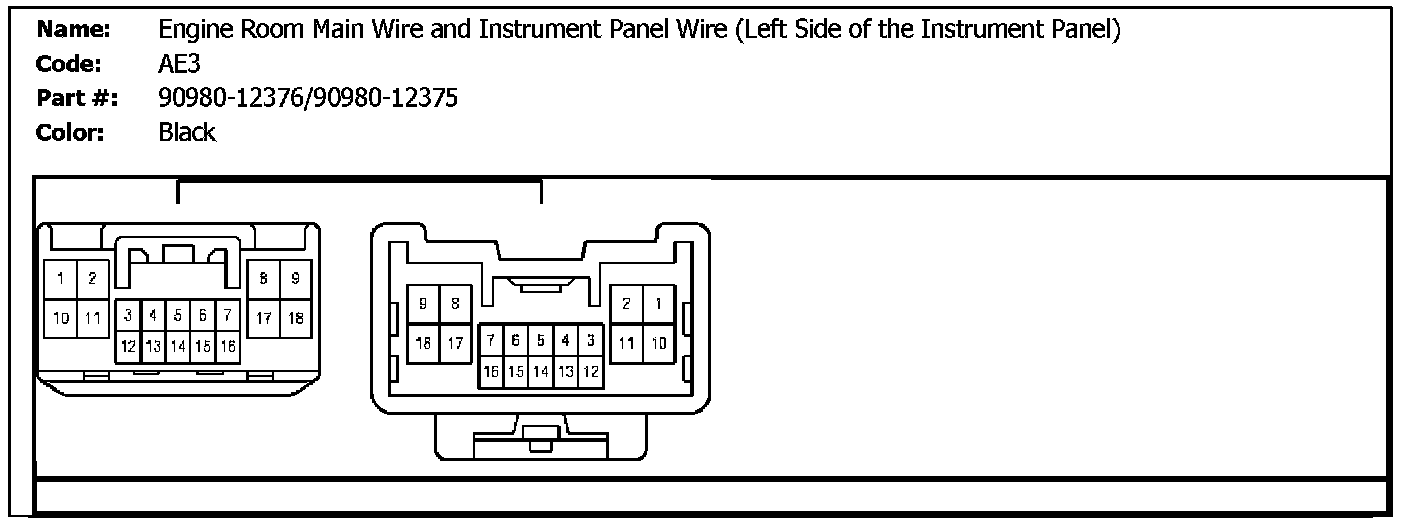

AE3 (Engine Room Main Wire And Instrument Panel Wire (Left Side Of The Instrument Panel)):

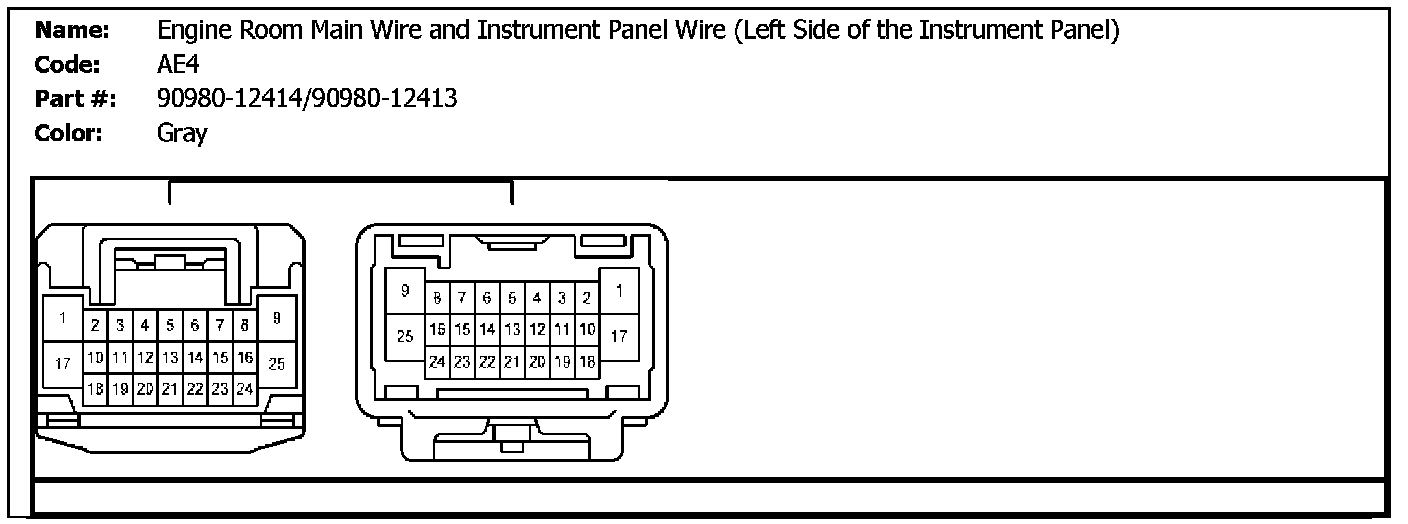

AE4 (Engine Room Main Wire And Instrument Panel Wire (Left Side Of The Instrument Panel)):

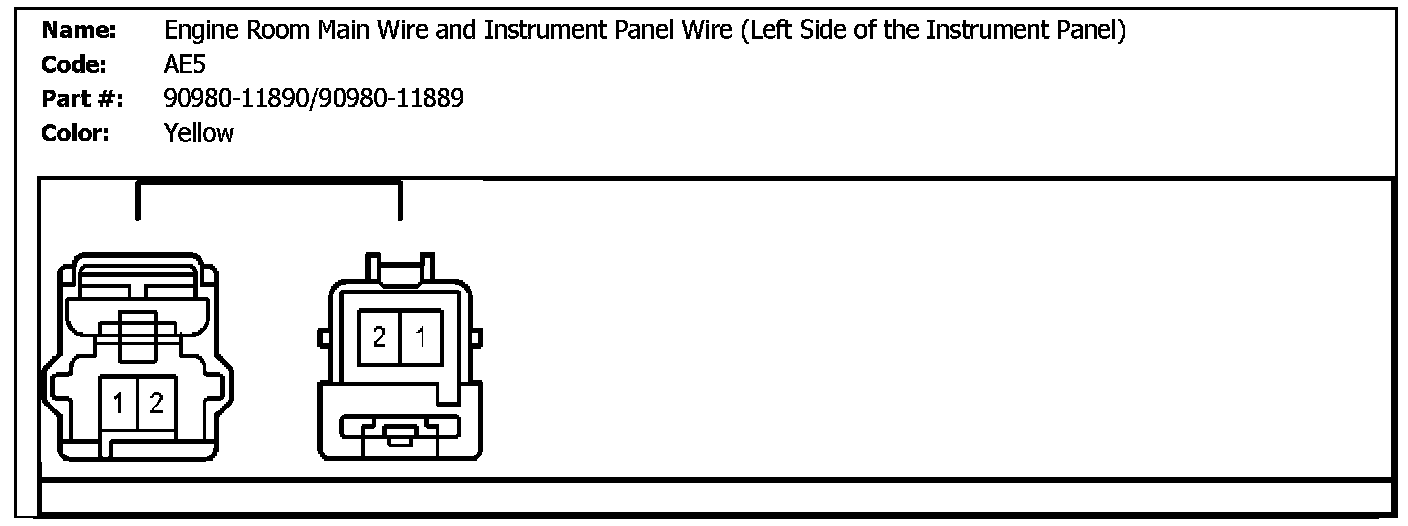

AE5 (Engine Room Main Wire And Instrument Panel Wire (Left Side Of The Instrument Panel)):

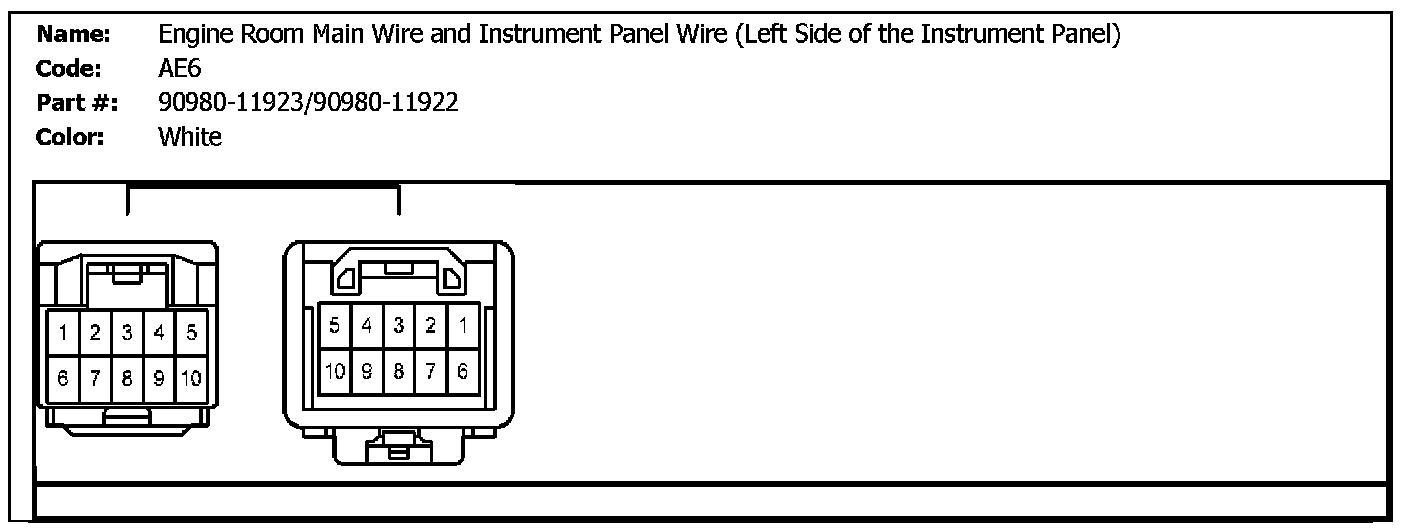

AE6 (Engine Room Main Wire And Instrument Panel Wire (Left Side Of The Instrument Panel)):

AE7 (Engine Room Main Wire And Instrument Panel Wire (Right Side Of The Instrument Panel)):

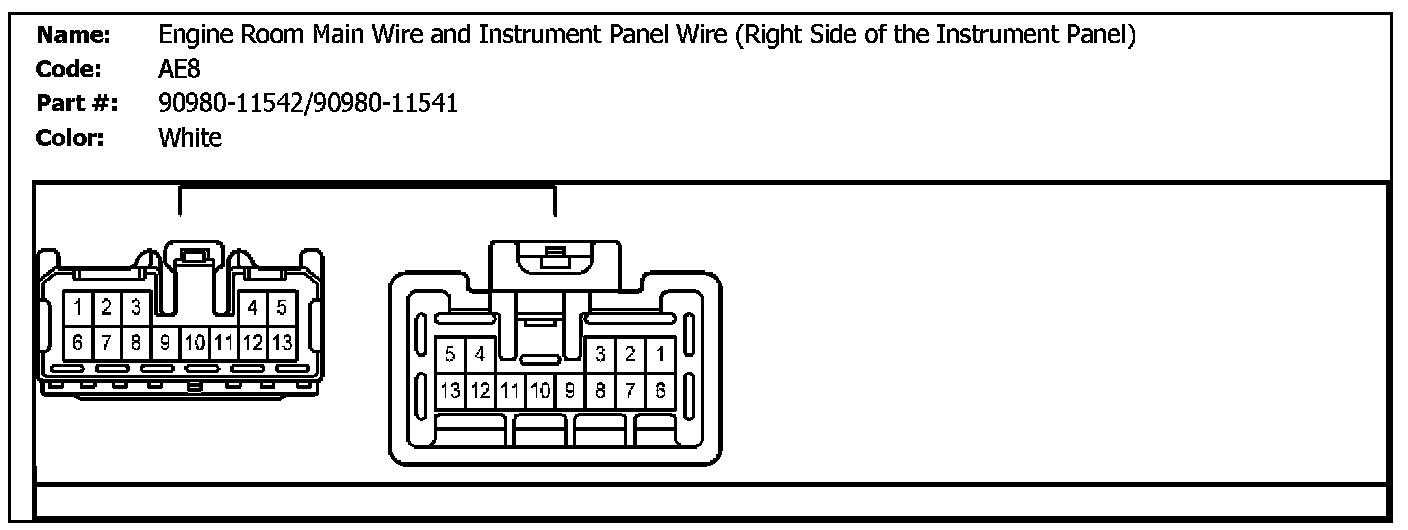

AE8 (Engine Room Main Wire And Instrument Panel Wire (Right Side Of The Instrument Panel)):

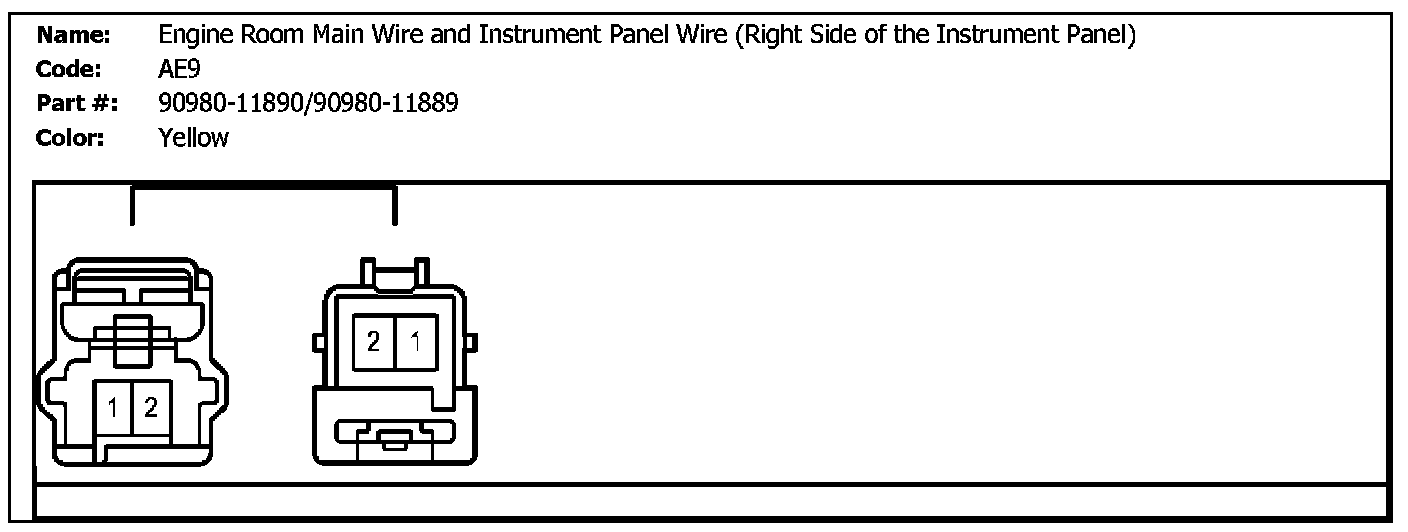

AE9 (Engine Room Main Wire And Instrument Panel Wire (Right Side Of The Instrument Panel)):

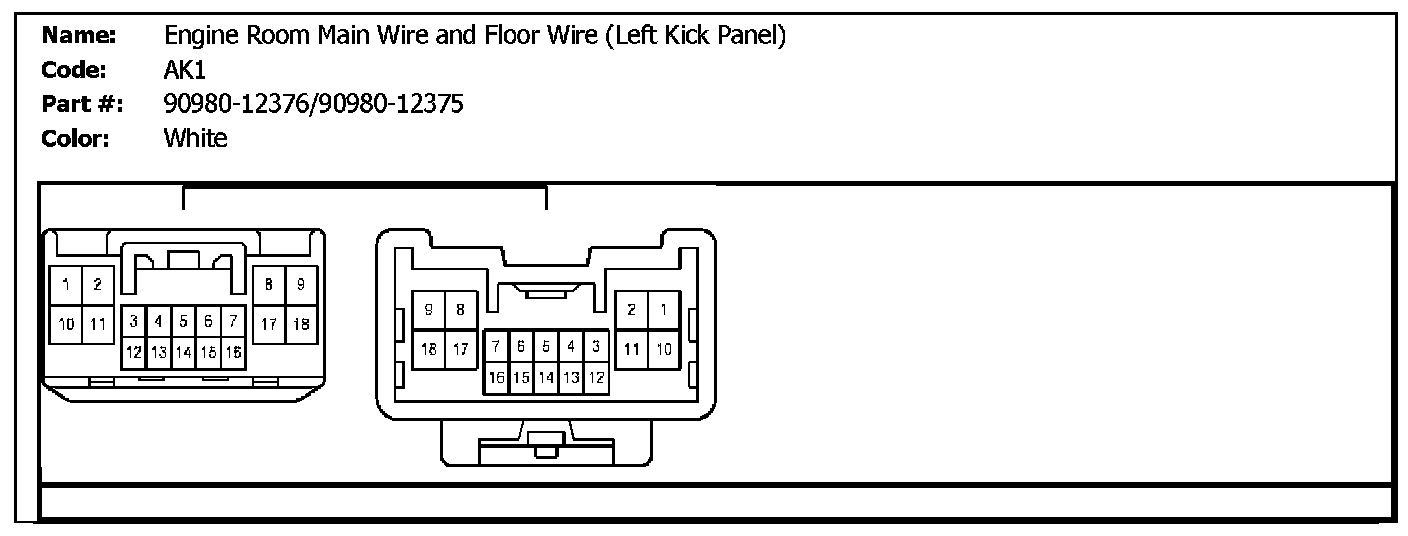

AK1 (Engine Room Main Wire And Floor Wire (Left Kick Panel)):

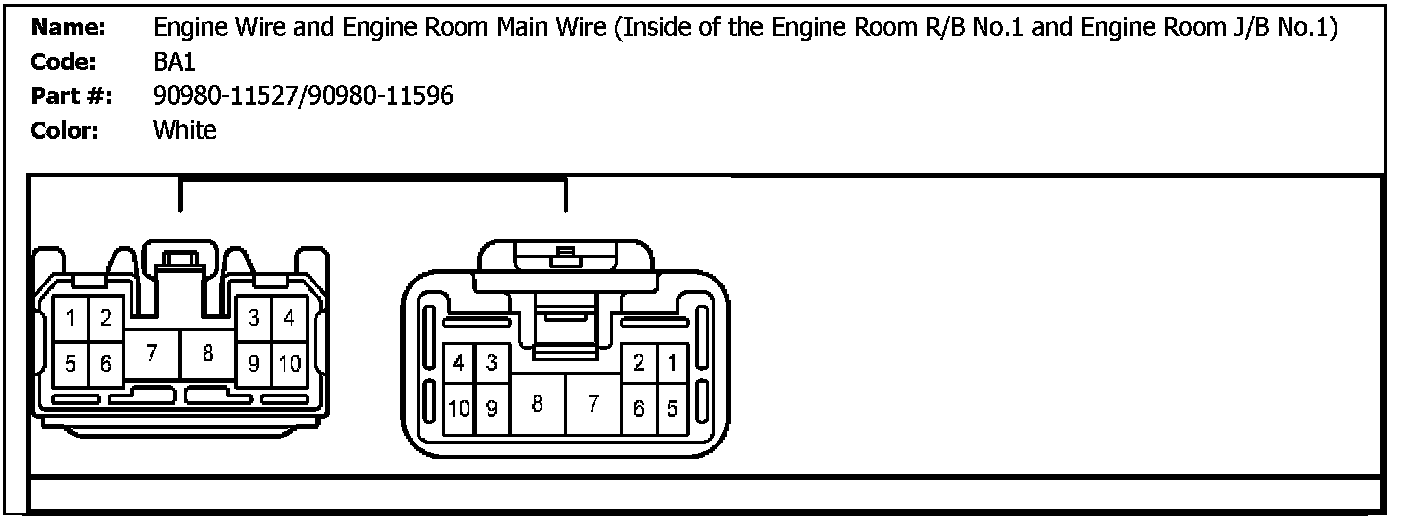

BA1 (Engine Wire And Engine Room Main Wire (Inside Of The Engine Room R/B No.1 And Engine Room J/B No.1)):

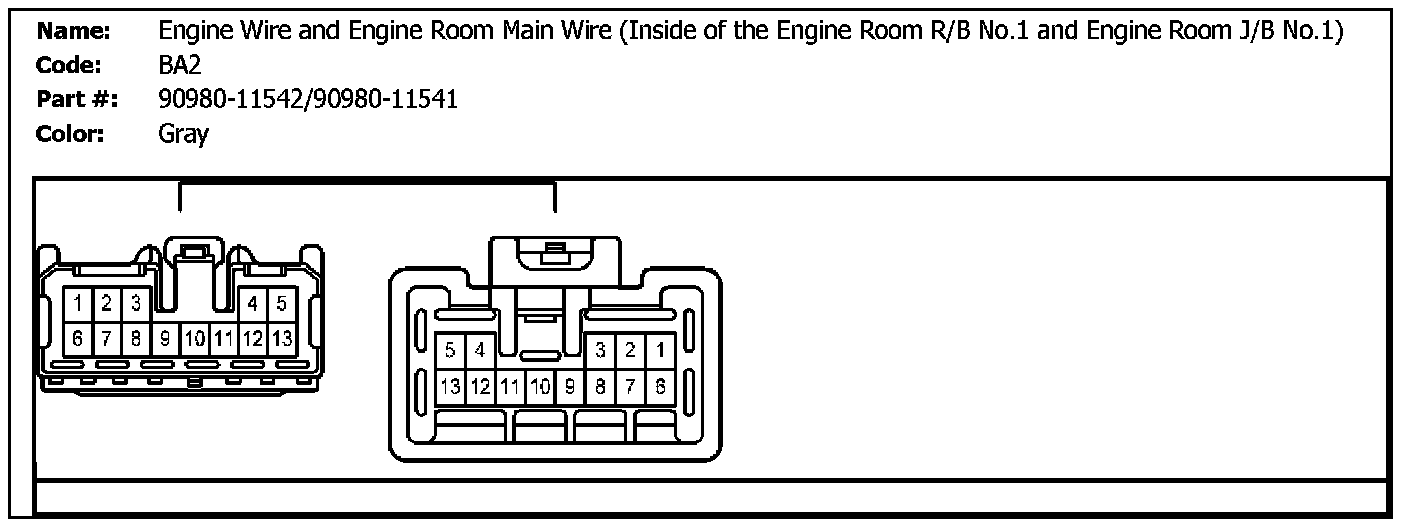

BA2 (Engine Wire And Engine Room Main Wire (Inside Of The Engine Room R/B No.1 And Engine Room J/B No.1)):

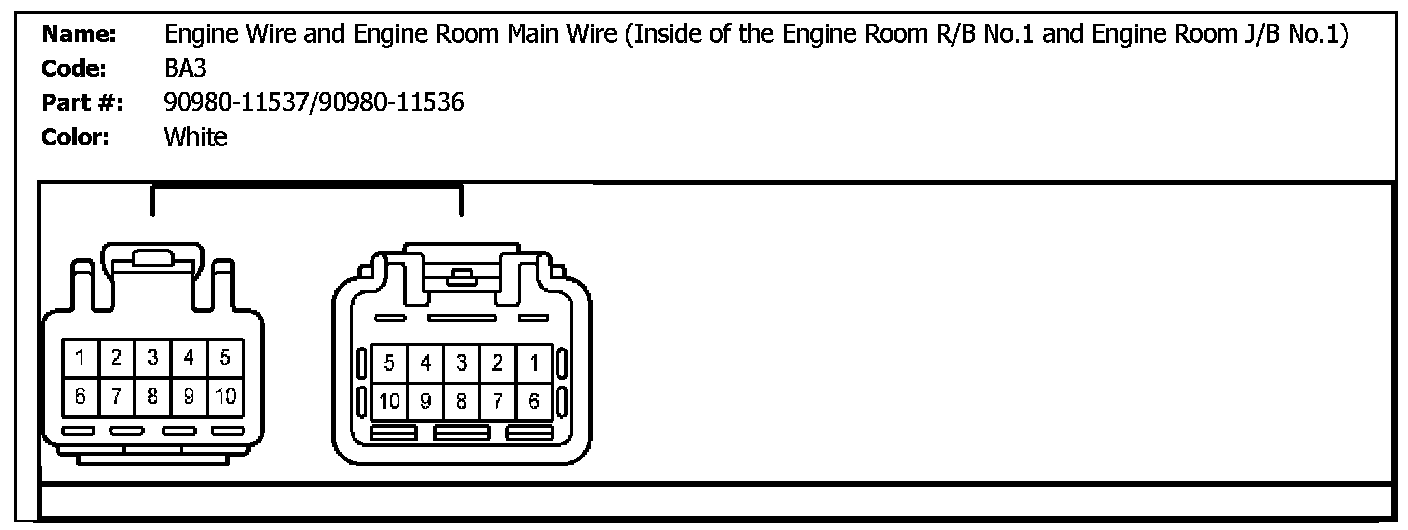

BA3 (Engine Wire And Engine Room Main Wire (Inside Of The Engine Room R/B No.1 And Engine Room J/B No.1)):

BA4 (Engine Wire And Engine Room Main Wire (Inside Of The Engine Room R/B No.1 And Engine Room J/B No.1)):

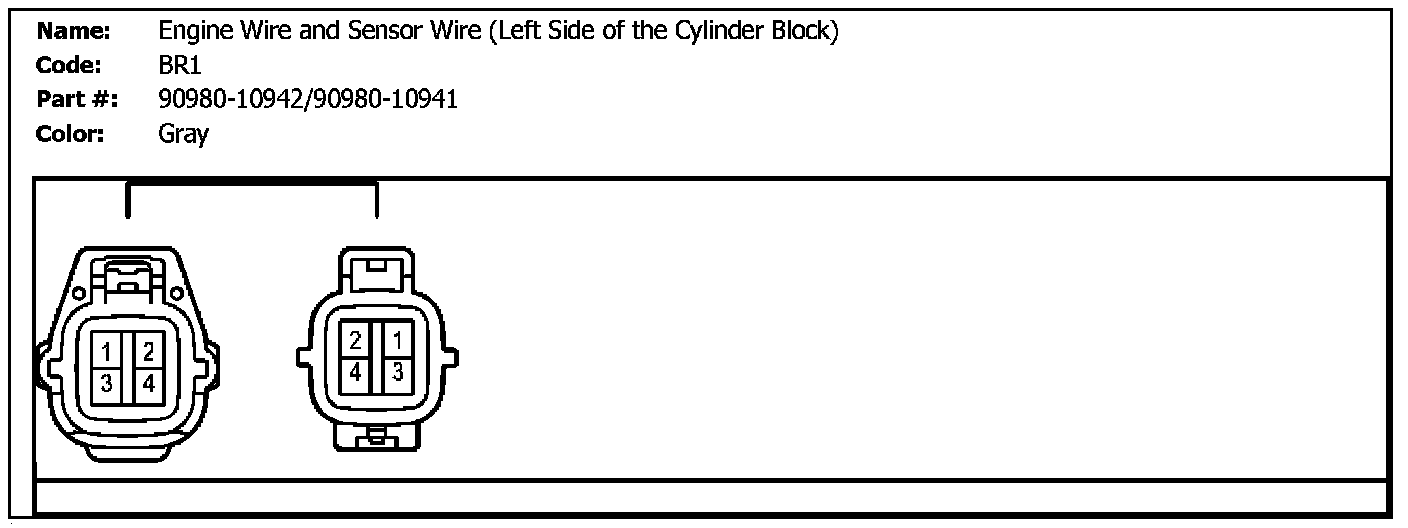

BR1 (Engine Wire And Sensor Wire (Left Side Of The Cylinder Block)):

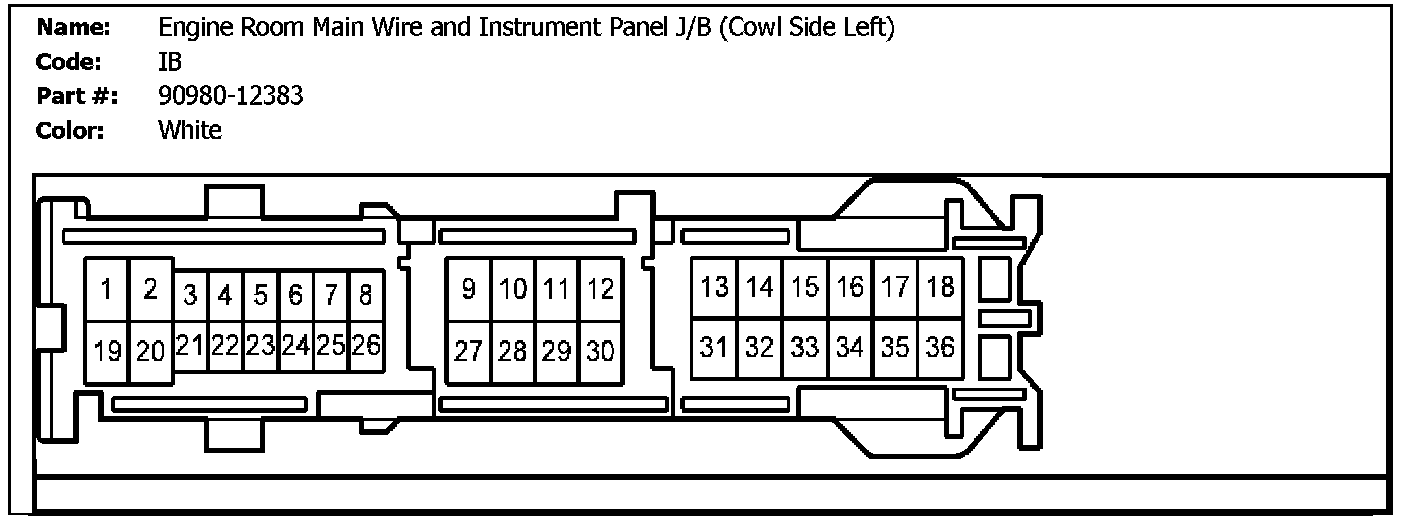

IB (Engine Room Main Wire And Instrument Panel J/B (Cowl Side Left)):

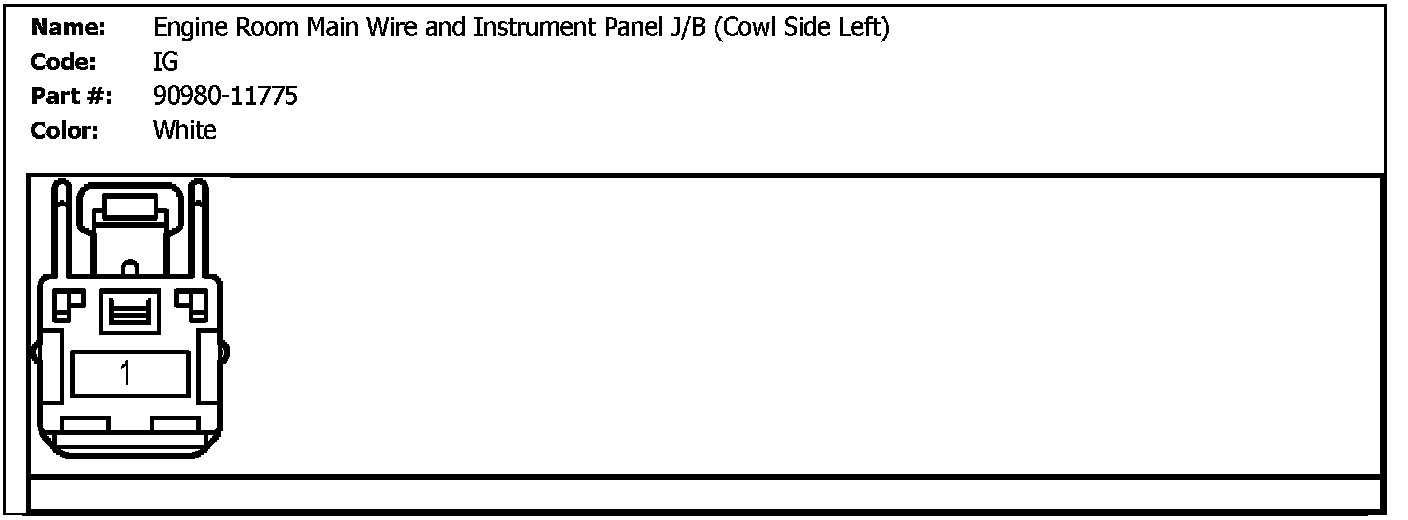

IG (Engine Room Main Wire And Instrument Panel J/B (Cowl Side Left)):

IL (Engine Room Main Wire And Instrument Panel J/B (Cowl Side Left)):
