Removal

BRAKE CONTROL: REAR SPEED SENSOR (for 4WD): REMOVAL

REMOVAL
HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE REAR WHEEL
3. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH
(a) Remove the deck trim side panel LH Removal.
HINT: Refer to the procedures from the removal of the rear door scuff plate LH up until the removal of the deck trim side panel assembly LH.

4. REMOVE REAR SPEED SENSOR LH






(a) Disconnect the speed sensor connector.






(b) Disconnect the grommet of the speed sensor wire from the hole of the wheel house.

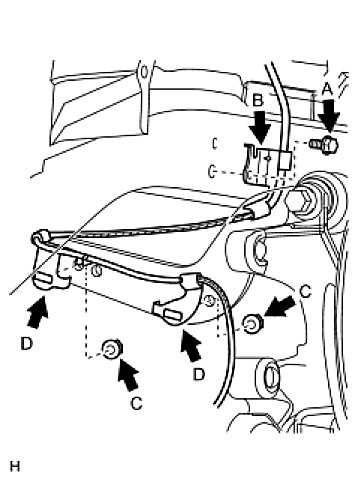

(c) Remove the bolt (labeled A) and sensor clamp (labeled B) from the side member.
(d) Remove the 2 nuts (labeled C) and sensor clamps (labeled D) from the upper arm.

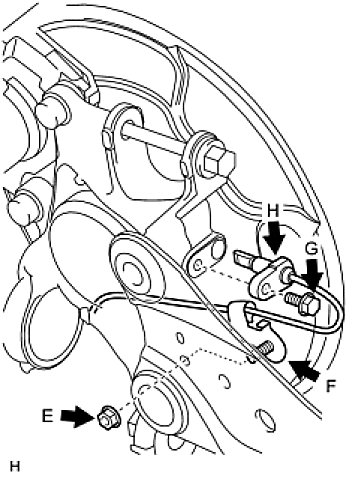

(e) Remove the nut (labeled E) and sensor clamp (labeled F) from the trailing arm.
(f) Remove the bolt (labeled G) and sensor body (labeled H) from the carrier.
NOTE: Keep the sensor tip and sensor installation hole free from foreign matter.
