Reassembly

U151E AUTOMATIC TRANSAXLE: VALVE BODY: REASSEMBLY

REASSEMBLY

1. INSTALL SHIFT SOLENOID VALVE SL1

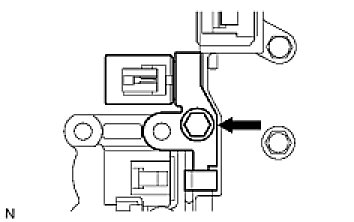

(a) Install the shift solenoid valve SL1 and lock plate to the valve body with the bolt.
Torque: 6.6 Nm (67 kgf-cm, 58 in-lbf)
2. INSTALL SHIFT SOLENOID VALVE SL2

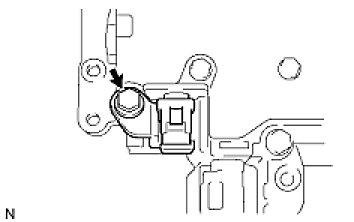

(a) Install the shift solenoid valve SL2 and lock plate to the valve body with the bolt.
Torque: 11 Nm (110 kgf-cm, 8 ft-lbf)
3. INSTALL SHIFT SOLENOID VALVE DSL

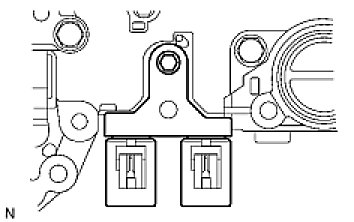

(a) Install the shift solenoid valve DSL and lock plate to the valve body with the bolt.
Torque: 11 Nm (110 kgf-cm, 8 ft-lbf)
4. INSTALL SHIFT SOLENOID VALVE SR

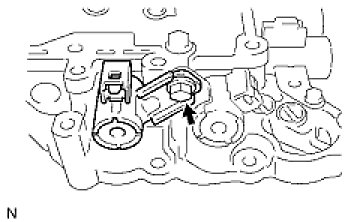

(a) Install the shift solenoid valve SR to the valve body.
5. INSTALL SHIFT SOLENOID VALVE S4

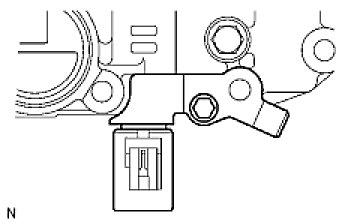

(a) Install the shift solenoid valve S4 to the valve body with the bolt.
Torque: 11 Nm (110 kgf-cm, 8 ft-lbf)
6. INSTALL SHIFT SOLENOID VALVE SL3 AND SLT

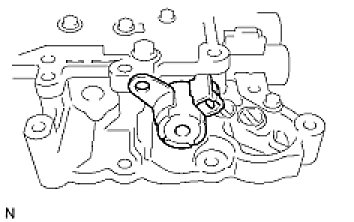

(a) Install the shift solenoid valve SL3 and SLT and lock plate to the valve body with the bolt.
Torque: 6.6 Nm (67 kgf-cm, 58 in-lbf)
