Shift Interlock: Locations

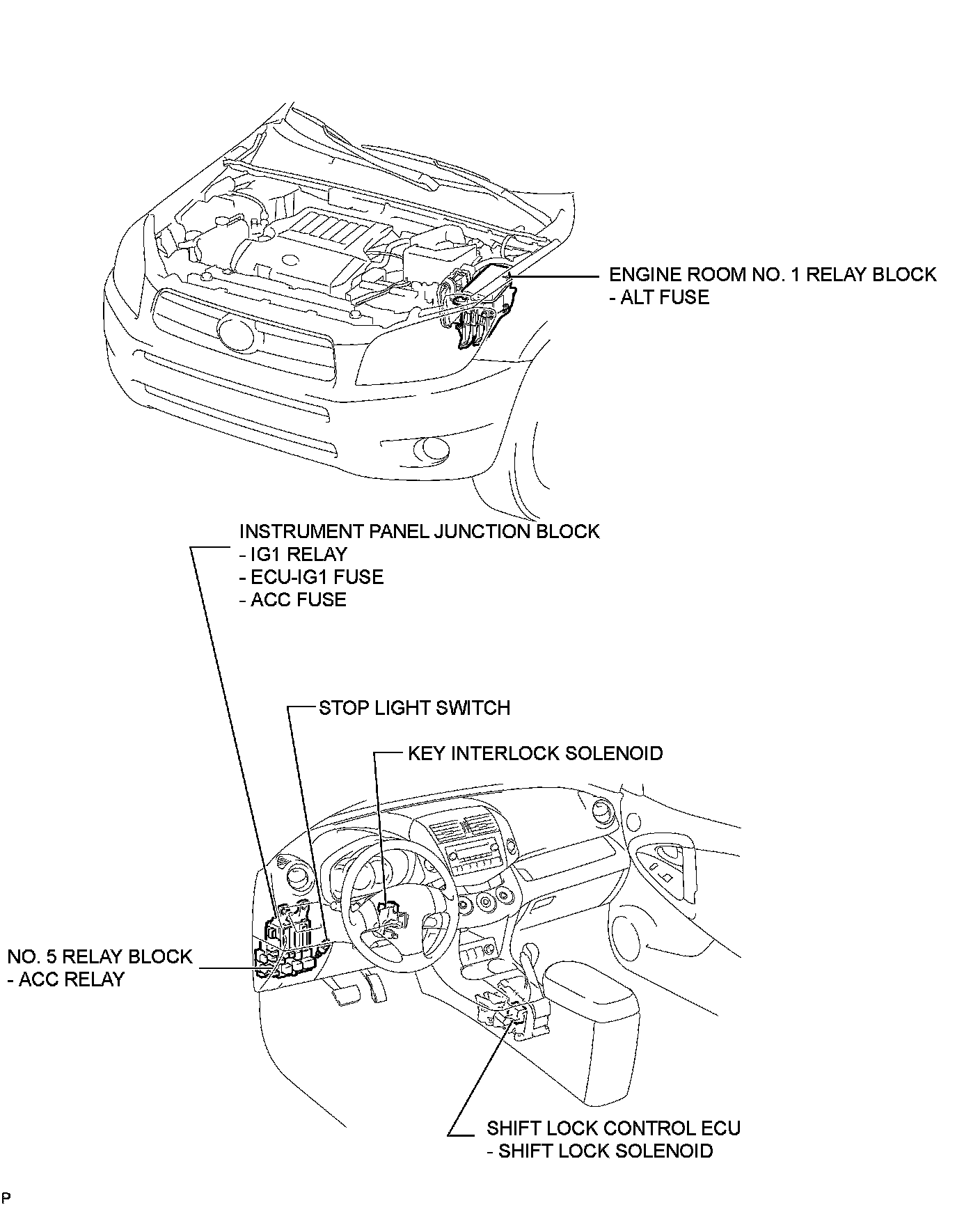

U151E AUTOMATIC TRANSAXLE: SHIFT LOCK SYSTEM: PARTS LOCATION
PARTS LOCATION
ILLUSTRATION
