Second Brake Piston
Second Brake Piston

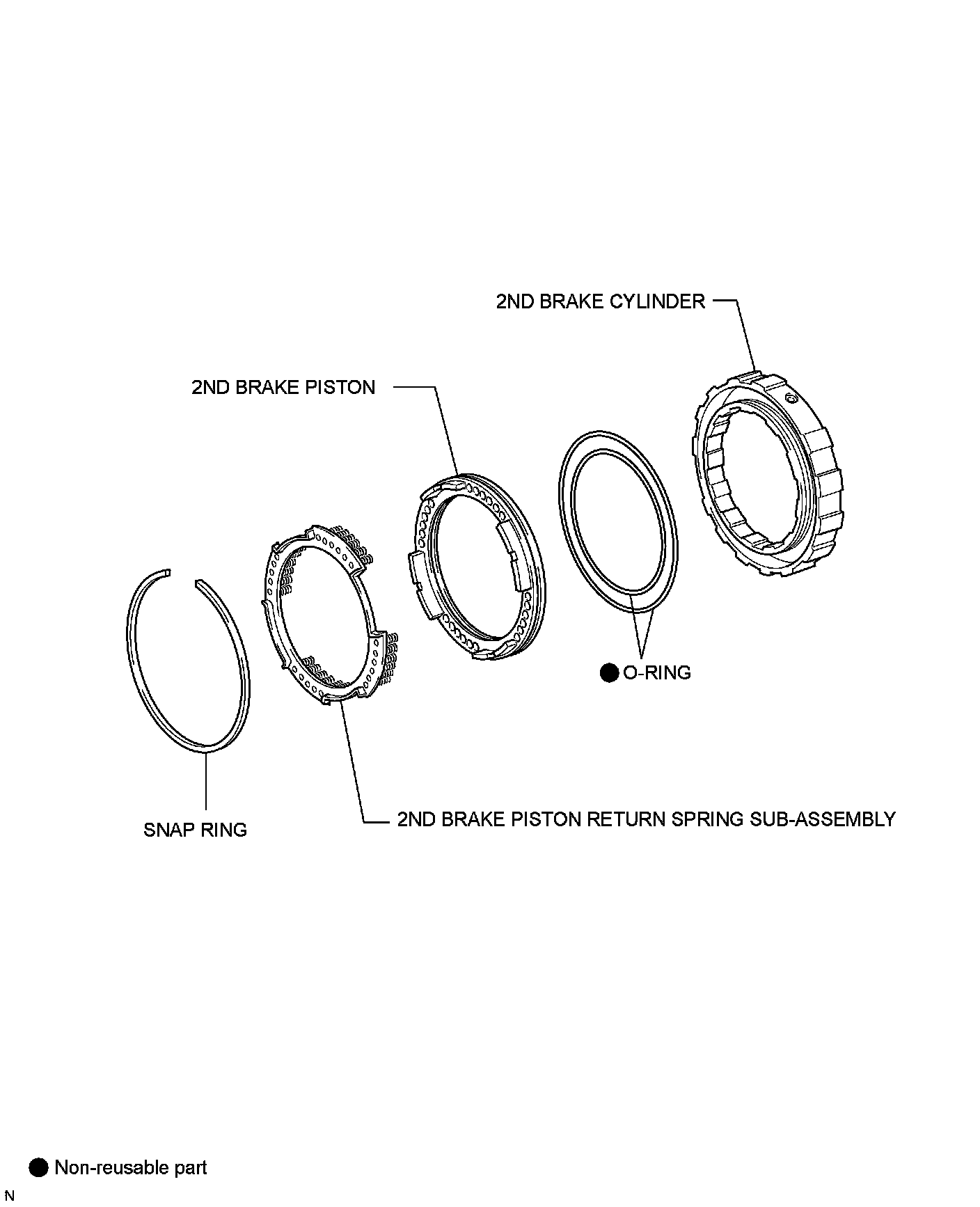

U151E AUTOMATIC TRANSAXLE: SECOND BRAKE PISTON: COMPONENTS
COMPONENTS
ILLUSTRATION
