Reassembly

U151E AUTOMATIC TRANSAXLE: DIFFERENTIAL CASE: REASSEMBLY

REASSEMBLY

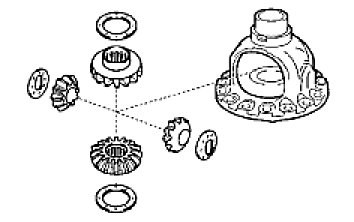

1. INSTALL FRONT DIFFERENTIAL SIDE GEAR






(a) Apply ATF to the 2 front differential side gears, 2 side gear thrust washers, 2 front differential pinions and 2 pinion thrust washers and install them to the differential case.
2. INSTALL NO. 1 FRONT DIFFERENTIAL PINION SHAFT






(a) Coat the No. 1 front differential pinion shaft with ATF, and install it to the differential case.
3. INSPECT BACKLASH Differential Case

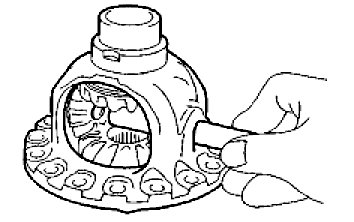

4. INSTALL FRONT DIFFERENTIAL PINION SHAFT STRAIGHT PIN

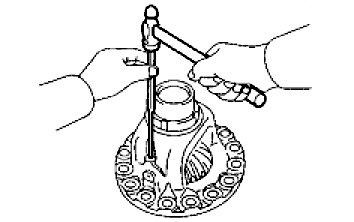

(a) Using a pin punch and hammer, install the pinion shaft straight pin.

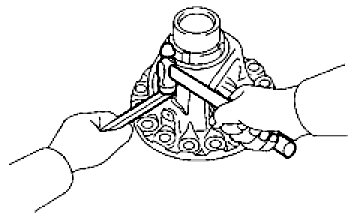

(b) Using a chisel and hammer, stake the differential case.
NOTE: Stake the differential case after adjusting the backlash.

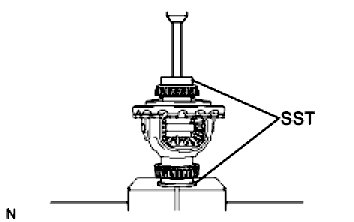

5. INSTALL FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING

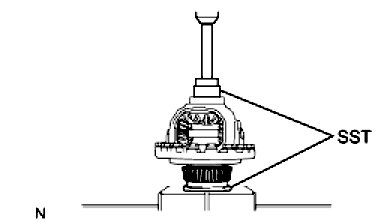

(a) Using SST and a press, press in the front differential case front tapered roller bearing to the differential case.
SST: 09316-12010
SST: 09550-60010
09951-00490
SST: 09950-70010
09951-07100
09951-07150
NOTICE:
- When replacing a bearing of the differential case, be sure to replace it together with the outer race.
- When replacing a bearing of the differential case, replace both the front and rear bearings together.
- Do not damage the bearing case when installing the bearing inner race.

(b) Install the front differential case rear shim to the transaxle housing.

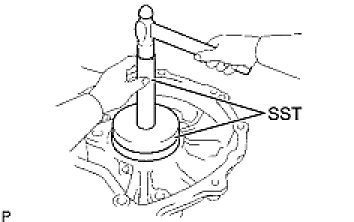

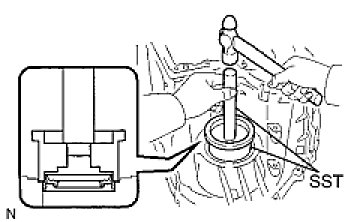

(c) Using SST and a hammer, tap in the front differential case rear tapered roller bearing outer race to the transaxle housing.
SST: 09950-70010
09951-07100
09951-07150
SST: 09950-60020
09951-00890
- When replacing the bearing, be sure to replace it together with the outer race.
- No clearance is allowed between the bearing and transaxle housing.

6. INSTALL FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING





(a) Using SST and a press, press in the front differential case front tapered roller bearing to the differential case.
SST: 09316-12010
SST: 09550-60010
09951-00490
SST: 09950-70010
09951-07100
NOTICE:
- When replacing a bearing of the differential case, be sure to replace it together with the outer race.
- When replacing a bearing of the differential case, replace both the front and rear bearings together.
- Do not damage the bearing case when installing the bearing inner race.





(b) Using SST and a hammer, tap in the front differential case front tapered roller bearing outer race to the transaxle housing.
SST: 09550-60010
09951-00490
SST: 09950-60020
09951-00910
NOTE: When replacing the bearing, be sure to replace it together with the outer race.

7. INSTALL FRONT DIFFERENTIAL RING GEAR






(a) Using ATF and a heater, heat the front differential ring gear to 90 to 110°C (194 to 230°F).
NOTE: Do not heat the ring gear to more than 110°C (230.0°F).

(b) Clean the contact surface of the front differential case.

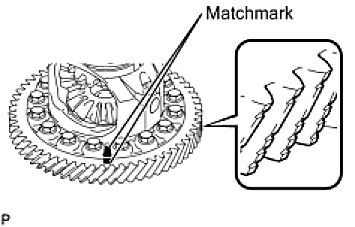

(c) Align the matchmarks, and install the front differential ring gear case quickly.
- Do not install the bolts while the ring gear is hot.
- Check the position and number of the grooves on each end face of the differential ring gear.





(d) Tighten the 14 bolts.
Torque: 95 Nm (969 kgf-cm, 70 ft-lbf)
NOTE: Tighten the bolts a little at a time in a diagonal pattern.

8. ADJUST DIFFERENTIAL SIDE BEARING PRELOAD

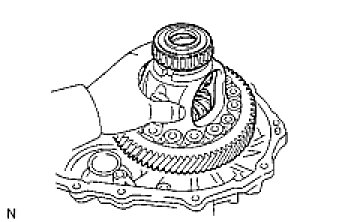

(a) Install the differential assembly to the transaxle case.






(b) Clean the mating surfaces of the transaxle case and transaxle housing.

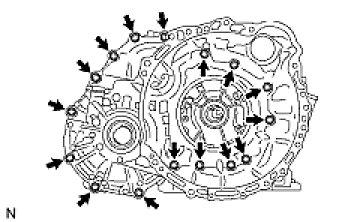

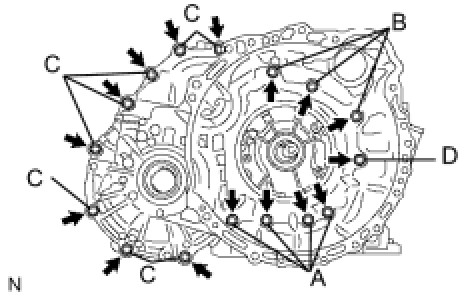

(c) Install the transaxle housing to the transaxle case and tighten them with the 16 bolts.
Torque: 22 Nm (224 kgf-cm, 16 ft-lbf) for bolt A
Torque: 29 Nm (295 kgf-cm, 21 ft-lbf) for bolt B
Torque: 29 Nm (295 kgf-cm, 21 ft-lbf) for bolt C
Torque: 22 Nm (226 kgf-cm, 16 ft-lbf) for bolt D
HINT:
- Each bolt length is indicated below.
Bolt length:
50 mm (1.969 in.) for bolt A
50 mm (1.969 in.) for bolt B
42 mm (1.654 in.) for bolt C
72 mm (2.835 in.) for bolt D
- Usually, bolt A is non-reusable. In this case, however, the bolt can be used after cleaning it.





(d) Using SST, turn the differential assembly to the right and left 2 or 3 times to settle the bearing.
SST: 09564-32011

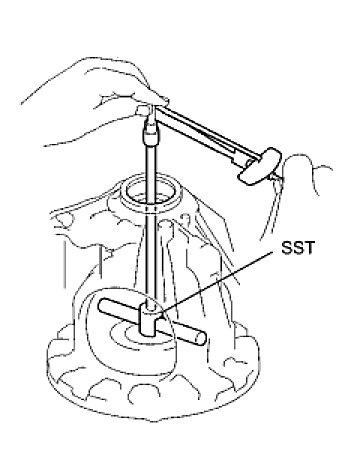

(e) Using SST and a torque wrench, measure the turning torque of the differential.
SST: 09564-32011
Standard turning torque at 60 rpm - Torque: 0.20 to 0.69 Nm (2.0 to 7.0 kgf-cm, 1.8 to 6.1 in-lbf) for new bearing
Standard turning torque at 60 rpm - Torque: 0.10 to 0.35 Nm (1.0 to 3.6 kgf-cm, 0.9 to 3.1 in-lbf) for used bearing

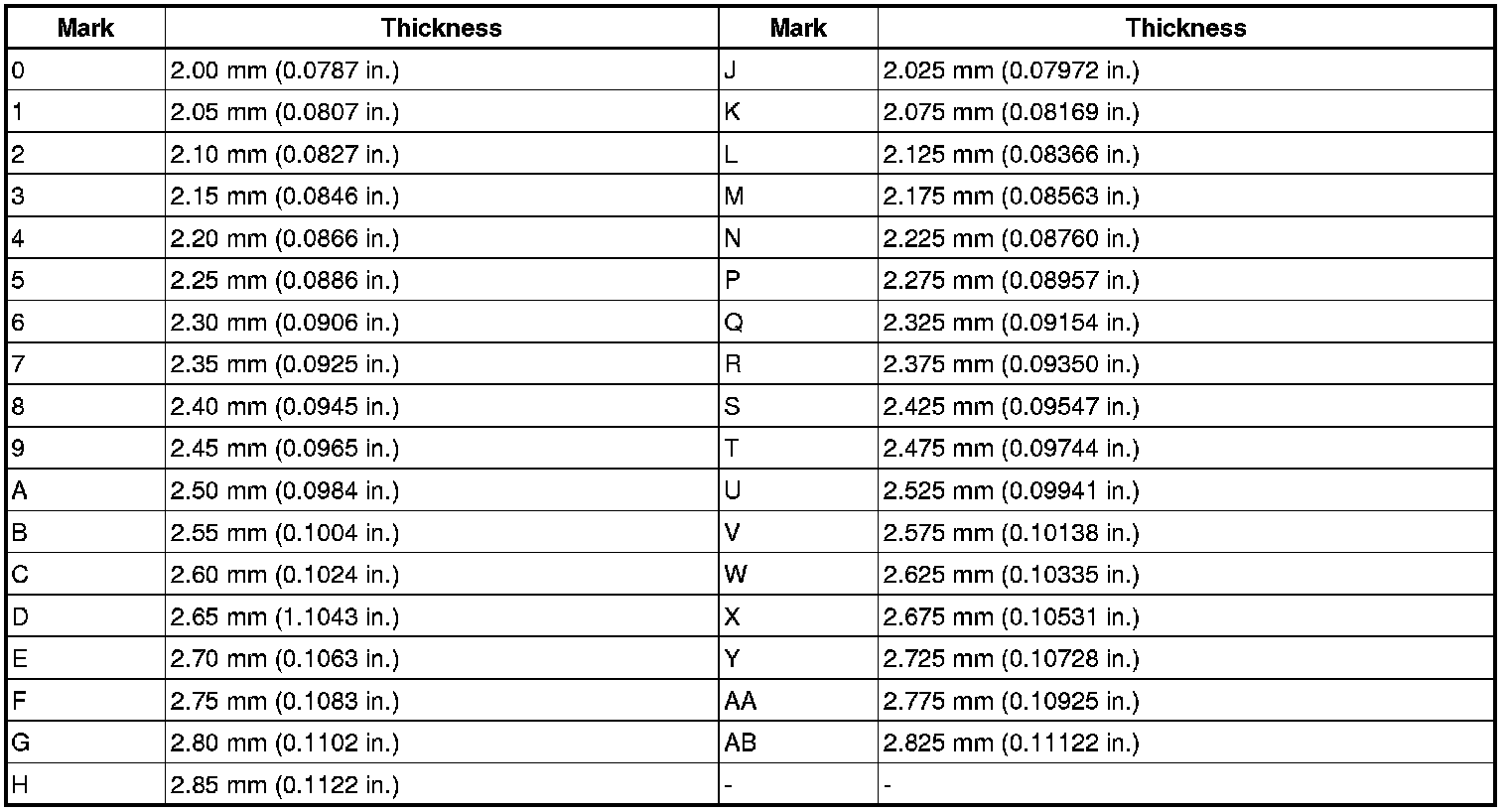

HINT: If the turning torque is not as specified, refer to the table below to select a front differential case rear shim so that the specified value is achieved.

Standard flange thickness:










(f) Remove the 16 bolts and the transaxle housing.






(g) Remove the differential assembly.
9. INSTALL TRANSAXLE HOUSING OIL SEAL

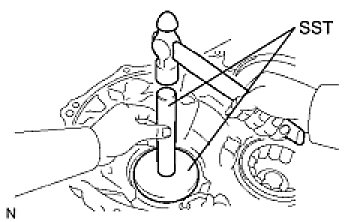

(a) Using SST and a hammer, tap in a new oil seal.
SST: 09223-15020
SST: 09950-70010
09951-07150
(b) Coat the lip of the oil seal with a little amount of MP grease.
Standard depth:
0 +-0.5 mm (0 +-0.0197 in.)
10. INSTALL DIFFERENTIAL SIDE BEARING RETAINER OIL SEAL






(a) Using SST and a hammer, tap in a new oil seal.
SST: 09710-30050
SST: 09950-70010
09951-07150
(b) Coat the lip of the oil seal with a little amount of MP grease.
Standard depth:
0 +-0.5 mm (0 +-0.0197 in.)
