Camshaft Bearing Cap

CAMSHAFT BEARING CAP (for Bank 1)

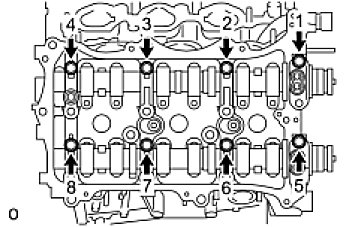

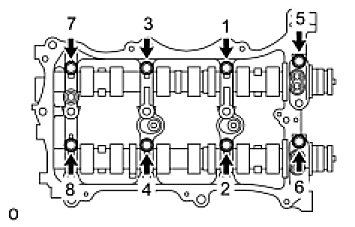

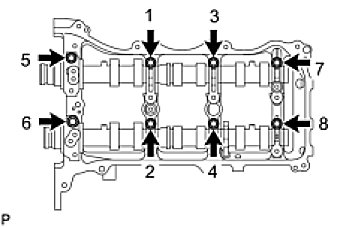

Temporarily install the 8 bolts in the order shown in the illustration.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)

CAMSHAFT HOUSING SUB-ASSEMBLY (for Bank 1)

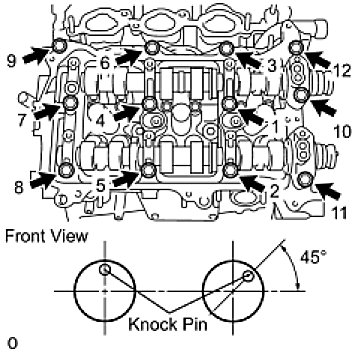

Torque: 28 Nm (286 kgf-cm, 21 ft-lbf) in the order shown in the illustration




Torque: 16 Nm (163 kgf-cm, 12 ft-lbf) in the order shown in the illustration


CAMSHAFT BEARING CAP (for Bank 2)

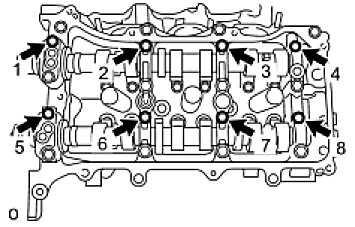

Temporarily install the 8 bolts in the order shown in the illustration.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)

CAMSHAFT HOUSING SUB-ASSEMBLY (for Bank 2)

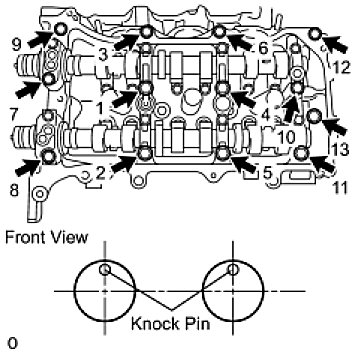

Torque: 28 Nm (286 kgf-cm, 21 ft-lbf) in the order shown in the illustration




Torque: 16 Nm (163 kgf-cm, 12 ft-lbf) in the order shown in the illustration
