Installation

2GR-FE EMISSION CONTROL: PURGE VALVE: INSTALLATION

INSTALLATION

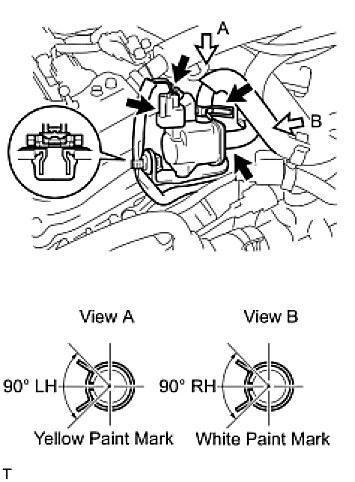

1. INSTALL PURGE VSV






(a) Install the purge VSV with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 in-lbf)
(b) Connect the 2 purge line hoses to the purge VSV.
(c) Connect the wire harness clamp.
(d) Connect the purge VSV connector.
2. INSTALL V-BANK COVER SUB-ASSEMBLY Installation

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
