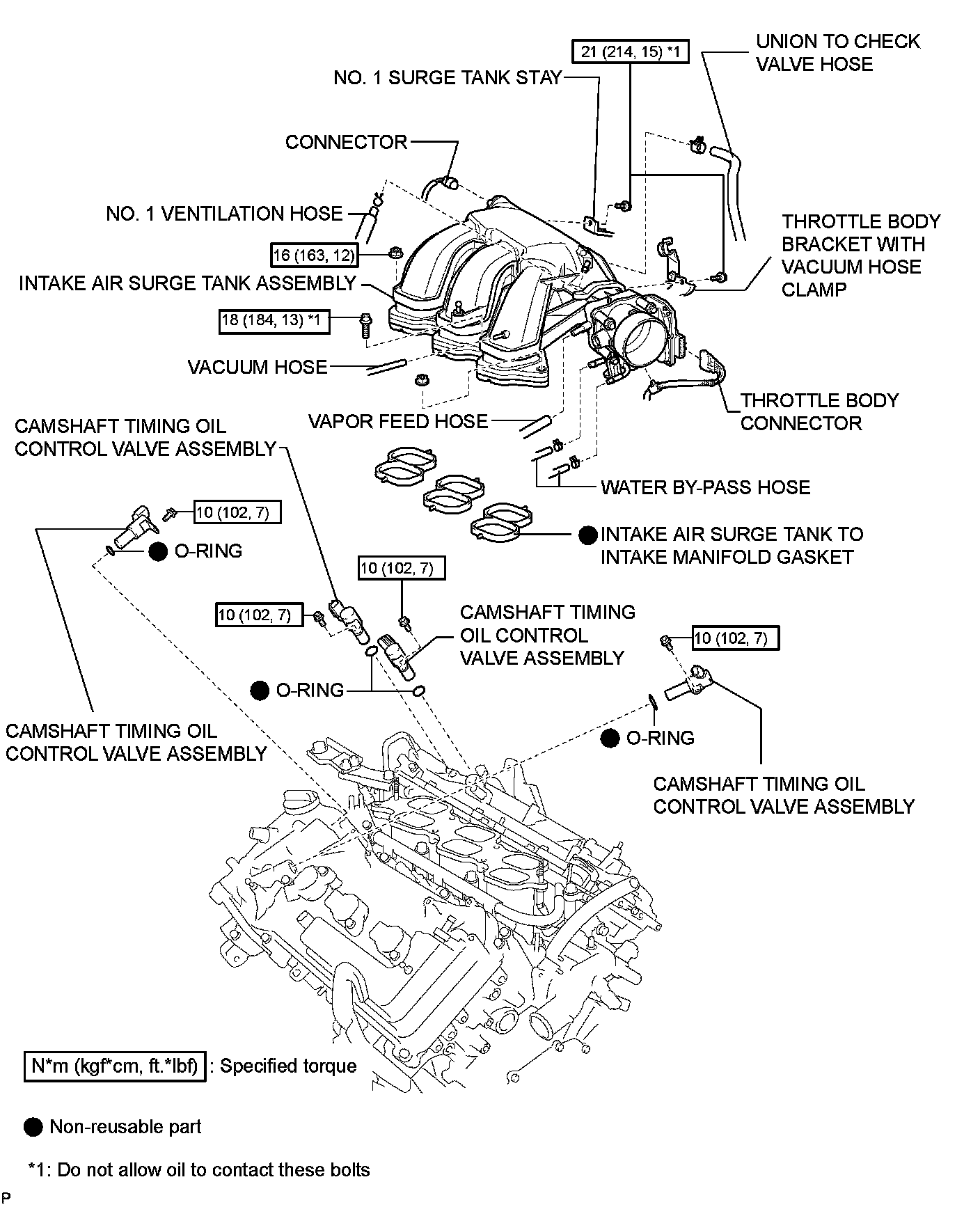

2GR-FE ENGINE CONTROL SYSTEM: CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY: COMPONENTS
COMPONENTS
ILLUSTRATION
