Removal

TIRE AND WHEEL: TIRE PRESSURE WARNING RECEIVER (w/ Antenna): REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE REAR DOOR SCUFF PLATE RH Removal

3. REMOVE PACKAGE TRAY TRIM POCKET SUB-ASSEMBLY (w/o Rear No. 2 Seat)
4. REMOVE TONNEAU COVER ASSEMBLY (w/o Rear No. 2 Seat)
5. REMOVE REAR FLOOR NO. 1 BOARD (w/o Rear No. 2 Seat)
6. REMOVE DECK BOARD ASSEMBLY (w/o Rear No. 2 Seat)
7. REMOVE NO. 2 SEAT HINGE COVER LH (w/ Rear No. 2 Seat) Removal

8. REMOVE NO. 2 SEAT HINGE COVER RH (w/ Rear No. 2 Seat) Removal

9. REMOVE NO. 2 SEAT LEG COVER LH (w/ Rear No. 2 Seat) Removal

10. REMOVE NO. 2 SEAT LEG COVER RH (w/ Rear No. 2 Seat) Removal

11. REMOVE REAR NO. 2 SEAT ASSEMBLY LH (w/ Rear No. 2 Seat) Removal

12. REMOVE REAR NO. 2 SEAT ASSEMBLY RH (w/ Rear No. 2 Seat) Removal

13. REMOVE REAR FLOOR NO. 3 BOARD
14. REMOVE REAR FLOOR NO. 2 BOARD
15. REMOVE REAR FLOOR NO. 1 MAT SUPPORT SIDE PLATE Removal

16. REMOVE REAR FLOOR FINISH PLATE Removal

17. REMOVE REAR DECK TRIM COVER RH (w/ Rear No. 2 Seat) Removal

18. REMOVE RECLINING REMOTE CONTROL LEVER BEZEL RH (w/o Rear No. 2 Seat) Removal

19. REMOVE TETHER ANCHOR BRACKET SUB-ASSEMBLY (w/o Rear No. 2 Seat) Removal

20. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH (w/o Rear No. 2 Seat) Removal

21. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH (w/ Rear No. 2 Seat) Removal

22. REMOVE INNER ROOF SIDE GARNISH ASSEMBLY RH Removal

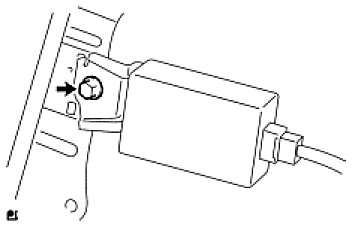

23. REMOVE TIRE PRESSURE WARNING ANTENNA AND RECEIVER
(a) Disconnect the connector.






(b) Remove the bolt and receiver.
