LIGHTING: LUGGAGE ROOM LIGHT: INSTALLATION

INSTALLATION

1. INSTALL BACK DOOR COURTESY LIGHT ASSEMBLY

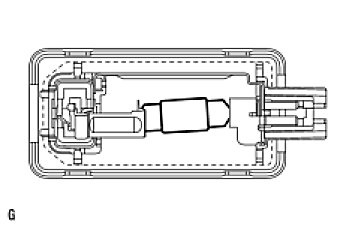

(a) Install the bulb to the light.

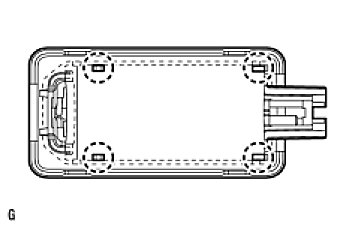

(b) Attach the 4 claws to install the light shade.

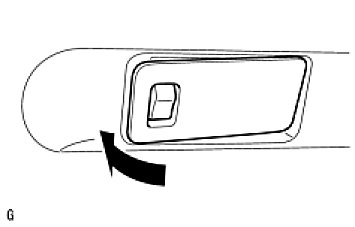

(c) Install the light as shown in the illustration.
2. INSTALL BACK DOOR TRIM BOARD Reassembly

3. INSTALL BACK DOOR SIDE GARNISH RH Reassembly

4. INSTALL BACK DOOR SIDE GARNISH LH Reassembly

5. INSTALL BACK DOOR CENTER GARNISH Reassembly

6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
