2GR-FE ENGINE MECHANICAL: ENGINE UNIT: REPAIR

REPAIR

1. REPAIR INTAKE VALVE SEAT
NOTE: Keep the lip free from foreign matter.

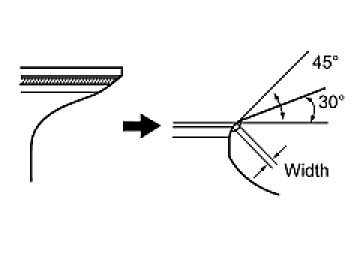

(a) If the seating is too high on the valve face, use 30° and 45° cutters to correct the seat.






(b) If the seating is too low on the valve face, use 60° and 45° cutters to correct the seat.
(c) Hand-lap the valve and valve seat with an abrasive compound.
(d) Check the valve seating position.
2. REPAIR EXHAUST VALVE SEAT
NOTE: Keep the lip free from foreign matter.





(a) If the seating is too high on the valve face, use 30° and 45° cutters to correct the seat.

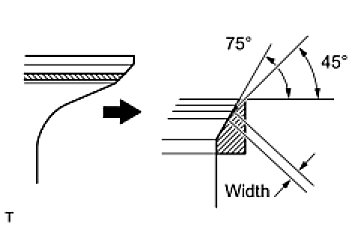

(b) If the seating is too low on the valve face, use 45° and 75° cutters to correct the seat.
(c) Hand-lap the valve and valve seat with an abrasive compound.
(d) Check the valve seating position.
