Braking Sensor/Switch: Testing and Inspection

BRAKE CONTROL: BRAKE PEDAL LOAD SENSING SWITCH: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT BRAKE PEDAL LOAD SENSING SWITCH
HINT:
- Do not remove the brake pedal load sensing switch from the brake pedal support.
- When there is a malfunction in the brake pedal load sensing switch, replace the brake pedal support.

(a) Disconnect the brake pedal load sensing switch connector.





(b) Measure the resistance of the switch.

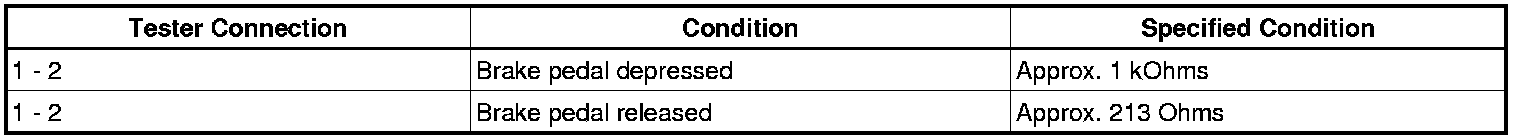

Standard resistance:





If the value is not as specified, replace the brake pedal support assembly Removal.
