Reassembly

EXTERIOR: RADIATOR GRILLE (for 2GR-FE): REASSEMBLY

REASSEMBLY

1. INSTALL RADIATOR GRILLE EMBLEM






(a) Attach the 3 claws to install the emblem.

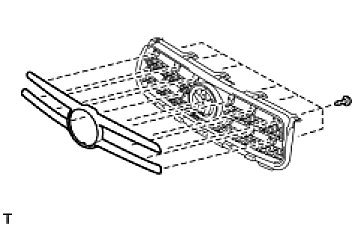

2. INSTALL RADIATOR GRILLE ORNAMENT PLATE (for Separate Type)






(a) Install the ornament plate with the 12 screws.
3. INSTALL NO. 2 RADIATOR GRILLE EMBLEM






(a) Attach the claw to install the emblem.
(b) Install the 2 screws.
