EXTERIOR: RADIATOR GRILLE (for 2GR-FE): INSTALLATION

INSTALLATION

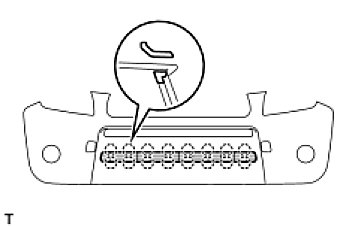

1. INSTALL NO. 2 RADIATOR GRILLE LOWER






(a) Install the radiator grille and attach the 16 claws.

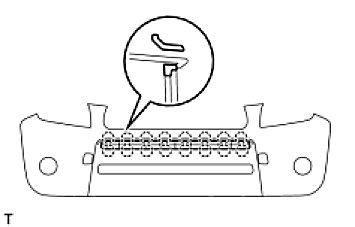

2. INSTALL NO. 1 RADIATOR GRILLE LOWER






(a) Install the radiator grille and attach the 16 claws.

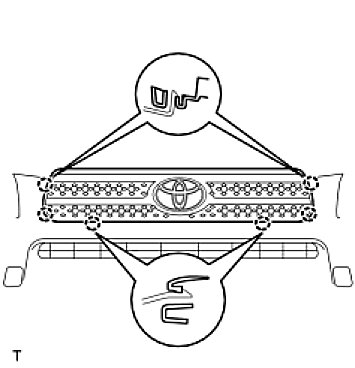

3. INSTALL RADIATOR GRILLE






(a) Install the radiator grille with the 6 claws.

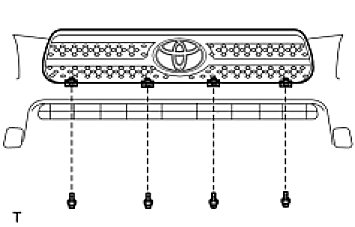

(b) Install the 4 bolts and 4 nuts.
4. INSTALL HOOD TO RADIATOR GRILLE SEAL Reassembly
