WIPER AND WASHER: WASHER MOTOR: INSTALLATION

INSTALLATION

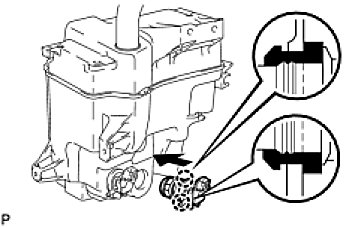

1. INSTALL REAR WASHER MOTOR AND PUMP ASSEMBLY
(a) Install the windshield washer motor and pump to the packing of the washer jar.

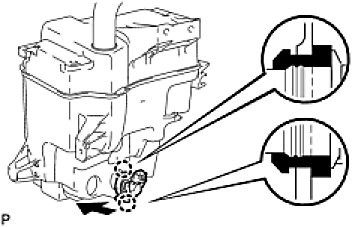

2. INSTALL WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY






(a) Install the windshield washer motor and pump to the packing of the washer jar.






3. INSTALL WINDSHIELD WASHER JAR ASSEMBLY
(a) Install the windshield washer jar and pump with the 3 bolts.
(b) Connect the connectors.
4. FILL UP WASHER JAR AND PUMP ASSEMBLY WITH WASHER FLUID
(a) Connect the washer hoses to the washer motor and pump, and fill the washer jar with washer fluid.
5. INSTALL FRONT BUMPER COVER Installation

6. INSTALL RADIATOR SUPPORT OPENING COVER Installation

7. INSTALL FRONT FENDER LINER LH Installation

8. INSTALL FRONT FENDER LINER RH Installation

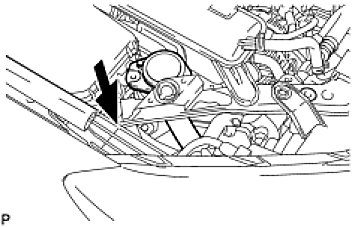

9. INSTALL WASHER INLET SUB-ASSEMBLY






(a) Install the washer inlet of the washer jar and pump to the windshield washer jar and pump.

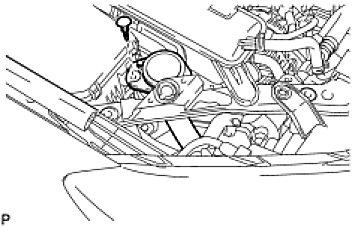

(b) Install the washer inlet of the washer jar and pump with the clip.
10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
